SIGNAL GENERATOR
GSX750F KATANA 2002 (K2) USA (E03)

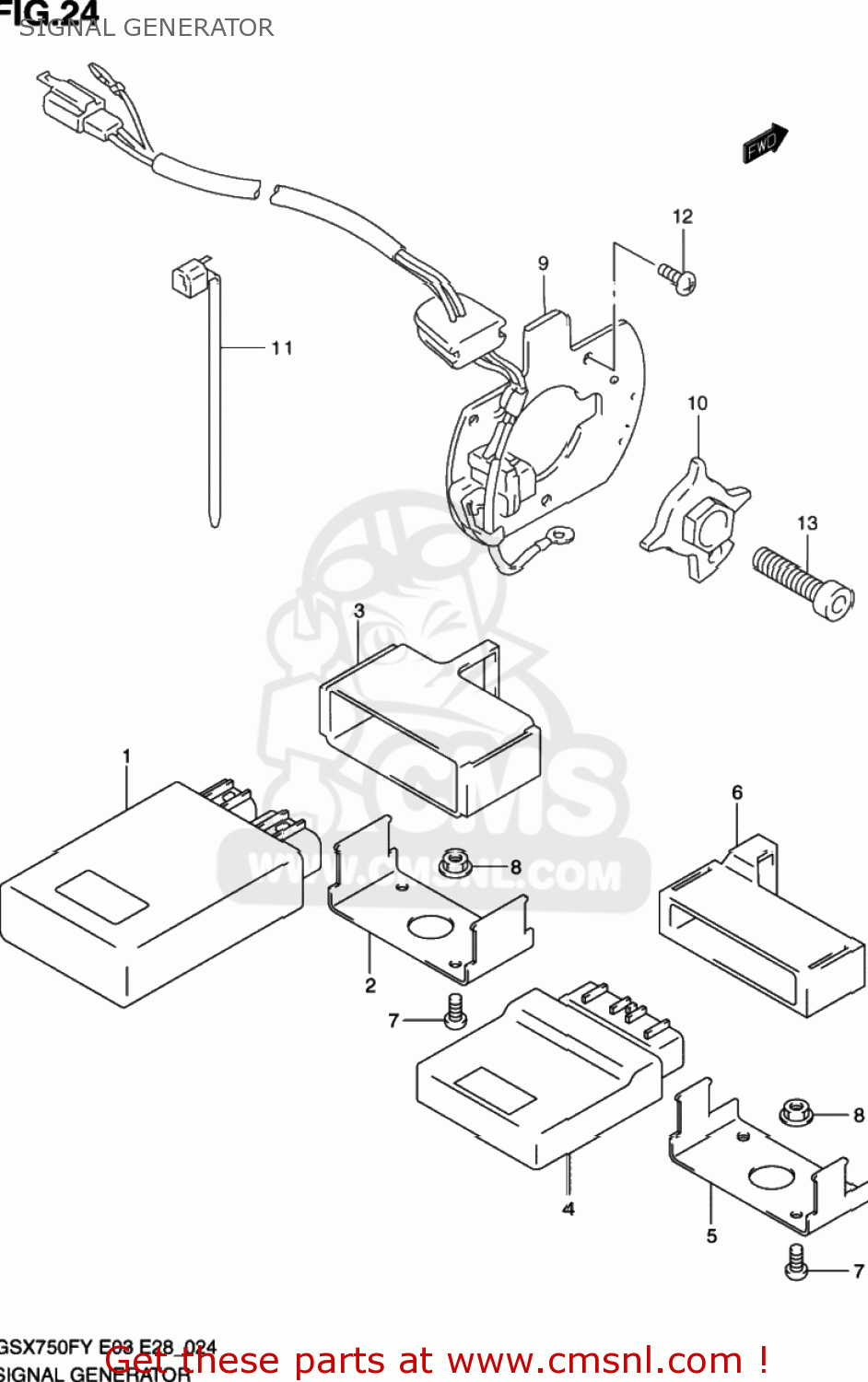

Signal generator diagram GSX750F KATANA 2002 (K2) USA (E03)
SIGNAL GENERATOR GSX750F KATANA 2002 (K2) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3290008F40
ref: 1
IGNITOR ASSY
€ 0.00
2
3293308F00
ref: 2
BRACKET,IGNITOR
€ 4.50
3
3298040C01
ref: 3
CUSHION,IGNITOR
€ 9.50
4
3290008FE0
ref: 4
IGNITOR ASSY
€ 0.00
5
3293308F10
ref: 5
BRACKET,IGNITOR
€ 4.50
6
3298041F00
ref: 6
COVER,IGNITOR
€ 9.00
7
0214205123
ref: 7
02142-0512A
SCREW 5X12
€ 1.50
8
0831610053
ref: 8
08316-1005A
NUT
€ 2.50
9-1
3311017C00
ref: 9-1
GENERATOR ASSY,SIGNAL
€ 324.00
9-2
3311031F00
ref: 9-2
33110-31F01
STATOR,SIGNAL GENERATOR
€ 323.50
10
3312019C20
ref: 10
ROTOR,SIGNAL GENERATOR
€ 182.00
11
0940714403
ref: 11
CLAMP(L:125)
€ 2.50
12
0211205103
ref: 12
02112-0510A
SCREW
€ 2.00
13
0713008303
ref: 13
07130-0830A
BOLT
€ 3.00
