FRONT FENDER (MODEL K3)

GSX750F KATANA 2002 (K2) USA (E03)

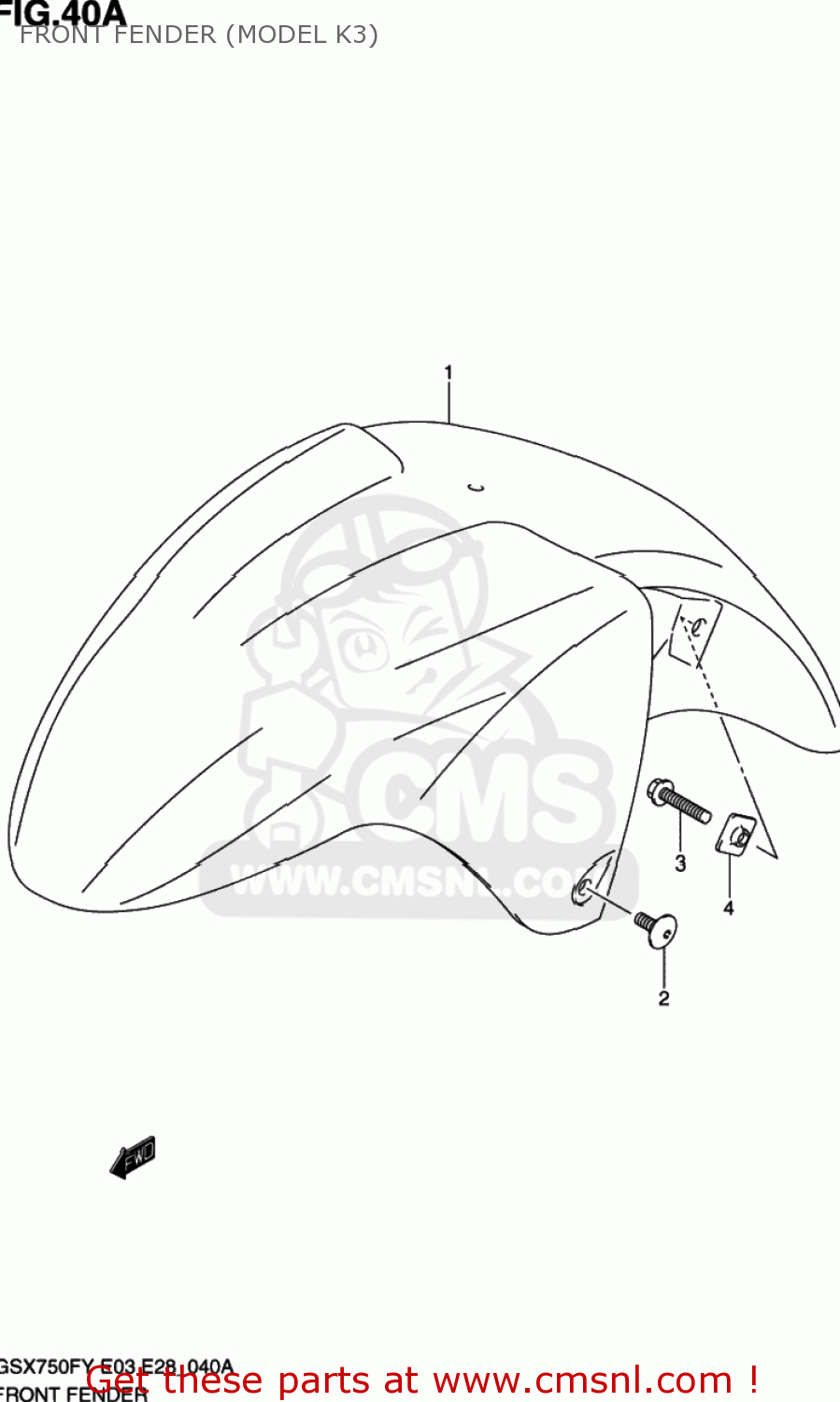

Front fender (model k3) diagram GSX750F KATANA 2002 (K2) USA (E03)

FRONT FENDER (MODEL K3) GSX750F KATANA 2002 (K2) USA (E03)

FRONT FENDER (MODEL K3) GSX750F KATANA 2002 (K2) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

5311108FA033J
ref: 1-1

FENDER,FR

€ 168.00

1-2

5311108FA0YU8
ref: 1-2

FENDER,FR

€ 295.00

2

0913906121
ref: 2

SCREW(6X16)

€ 5.50

3

0155006303
ref: 3
01550-0630A

BOLT

€ 2.50

4

5312206G00
ref: 4

NUT,FR FENDER

€ 4.00
