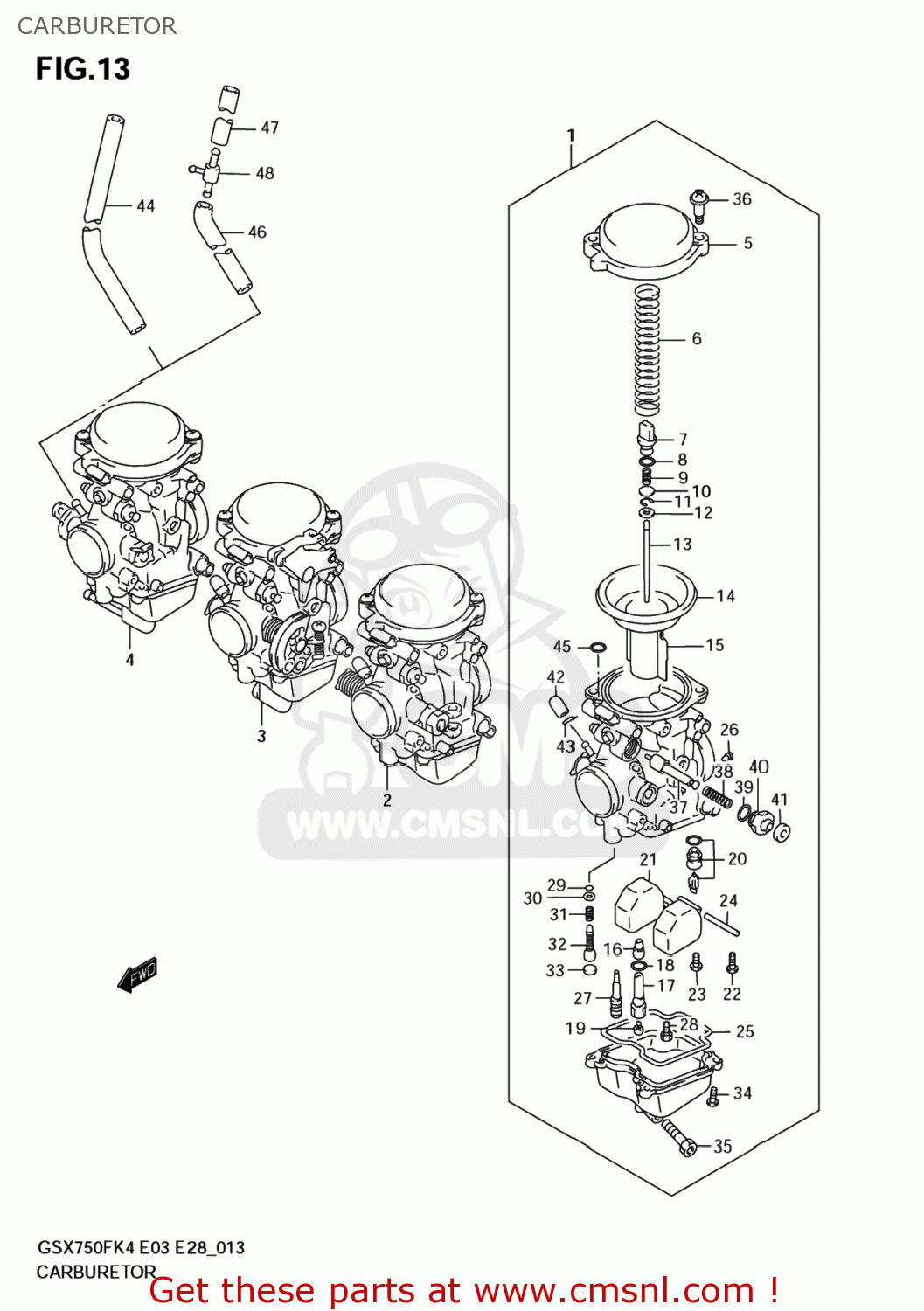

CARBURETOR

ref

part #

description

quantity

1-1

1320108F31
ref: 1-1

CARBURETOR ASSY,L

€ 250.50

1-2

1320108F41
ref: 1-2

CARBURETOR ASSY,L

€ 250.50

2-1

1320208F31
ref: 2-1

CARBURETOR ASSY,ML

€ 485.00

2-2

1320208F41
ref: 2-2

CARBURETOR ASSY,ML

€ 250.50

3-1

1320308F31
ref: 3-1

CARBURETOR ASSY,MR

€ 250.50

3-2

1320308F41
ref: 3-2

CARBURETOR ASSY,MR

€ 250.50

4-1

1320408F31
ref: 4-1

CARBURETOR ASSEMBLY,RIGHT

€ 250.50

4-2

1320408F41
ref: 4-2

CARBURETOR ASSY,R

€ 250.50

5

1350208F00
ref: 5

COVER,DIAPHRAGM

€ 32.00

6

1357333E00
ref: 6

SPRING

€ 10.50

7

1341833E00
ref: 7

HOLDER

€ 4.50

8

0928005004
ref: 8

O RING(D:1.9,ID:4.8)

€ 2.00

9

1348133E00
ref: 9

SPRING

€ 3.00

10

1338219E00
ref: 10

WASHER

€ 3.00

11

1339417E60
ref: 11

E RING,MULTIPLE JET NOZZLE

€ 1.50

12

1338744030
ref: 12

RING

€ 5.00

13-1

1338308F30
ref: 13-1

NEEDLE,JET

€ 0.00

13-2

1338308F40
ref: 13-2

NEEDLE,JET

€ 0.00

14

1350717C01
ref: 14

DIAPHRAGM

€ 24.50

15

1350108F00
ref: 15

VALVE,PISTON

€ 83.50

16

0949400921
ref: 16

JET,NEEDLE(P-0M)

€ 44.50

17

1338508F00
ref: 17

HOLDER,JET

€ 32.00

18

1324643010
ref: 18

O RING

€ 4.00

19

0949123019
ref: 19

JET,MAIN

€ 11.50

20

1337008F50
ref: 20

VALVE ASSY,NEEDLE

€ 68.50

21

1325004F00
ref: 21

FLOAT ASSY

€ 27.50

22

0211204083
ref: 22
02112-0408A

SCREW

€ 2.00

23

1360205A10
ref: 23

SCREW

€ 4.00

24

1325401010
ref: 24

PIN,FLOAT

€ 3.00

25

1325804F00
ref: 25

GASKET (NAS)

€ 9.00

26-1

0949328013
ref: 26-1

JET,PILOT AIR(140)

€ 10.50

26-2

0949226002
ref: 26-2

JET,POWER(130)

€ 16.50

27

0949212008
ref: 27

JET,PILOT(12.5)

€ 14.00

28

0949150006
ref: 28

JET,STARTER(50)

€ 15.00

29

1329529900
ref: 29

O RING,PILOT AIR SCREW

€ 4.00

30

1329129900
ref: 30

WASHER

€ 2.00

31

1326848700
ref: 31

SPRING,THROTTLE SCREW

€ 3.50

32-1

1327933E00
ref: 32-1

ADJUSTER

€ 9.50

32-2

1327933E00
ref: 32-2

ADJUSTER

€ 9.50

33

1328105A00
ref: 33

PLUG

€ 3.50

34

0211204107
ref: 34

SCREW

€ 2.00

35

1324713A00
ref: 35
13247-02340

SCREW,DRAIN

€ 5.50

36

1324733E00
ref: 36

SCREW

€ 3.00

37

1341105300
ref: 37

PLUNGER

€ 23.50

38

1341726D00
ref: 38

SPRING

€ 5.50

39

1327847090
ref: 39

O RING

€ 2.00

40

1341844080
ref: 40

GUIDE SCREW,PLUNGER

€ 8.00

41

1368231210
ref: 41

CAP,STARTER VALVE

€ 5.00

42

1327484000
ref: 42

CAP

€ 5.50

43

0940106101
ref: 43

CLIP

€ 2.50

44

0935550105600
ref: 44
44421-13ER0

HOSE(5X10X600)

€ 7.50

44

0935550105600
ref: 44
44421-13ER0

HOSE(5X10X600)

€ 7.50

45

1329533010
ref: 45

O RING

€ 4.50

46

0935250901600
ref: 46

HOSE(5X9X600)

€ 6.50

46

0935250901600
ref: 46

HOSE(5X9X600)

€ 6.50

47

0935250903600
ref: 47

HOSE(5X9X600)

€ 28.50

47

0935250903600
ref: 47

HOSE(5X9X600)

€ 28.50

48

1368548B00
ref: 48

NIPPLE

€ 9.00
