ELECTRICAL

GSX750F KATANA 2004 (K4) USA (E03)

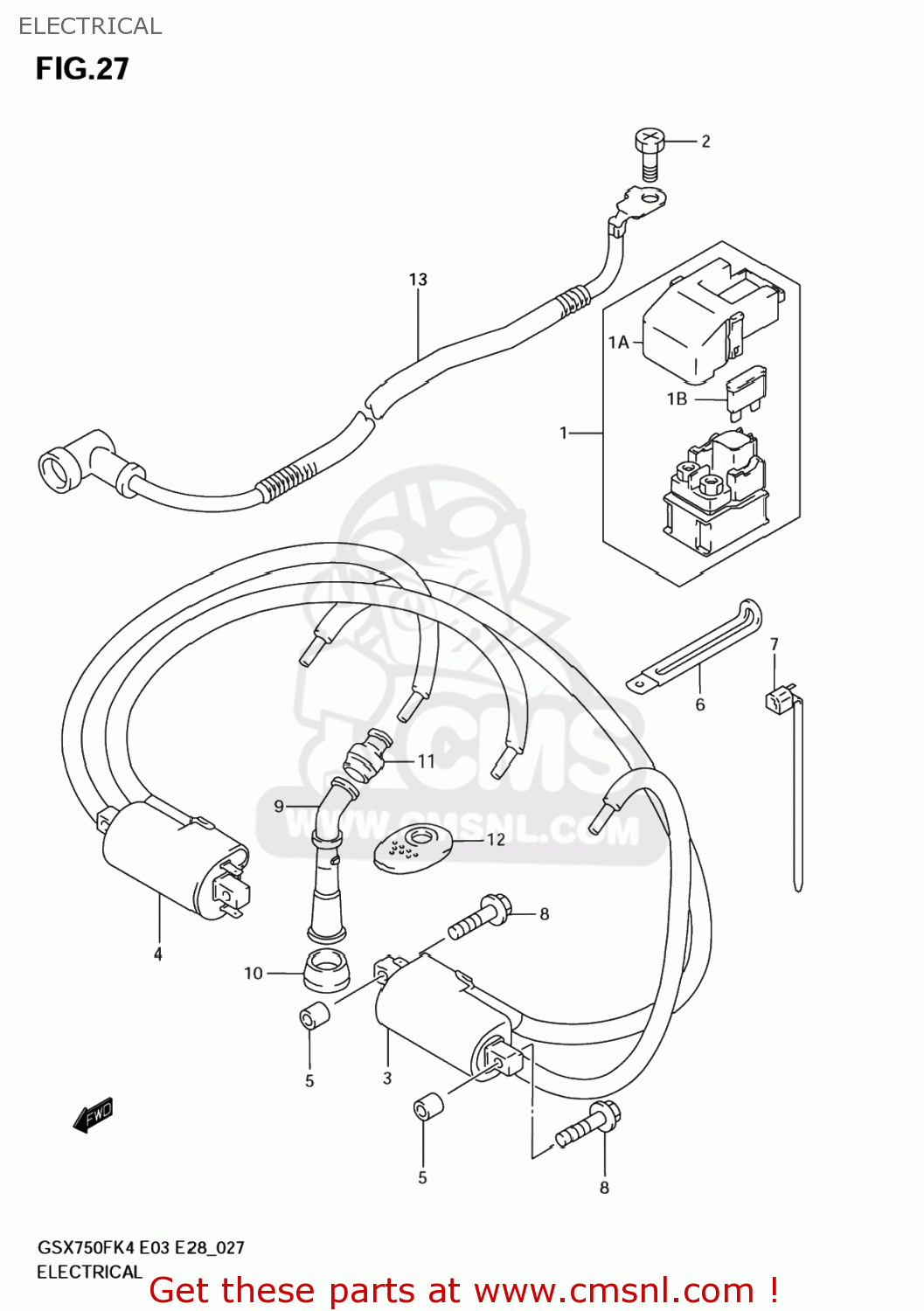

Electrical diagram GSX750F KATANA 2004 (K4) USA (E03)

prices are in EUR

ref

part #

description

quantity

3180021E20
ref: 1

RELAY ASSY,STARTING MOTOR

€ 69.00

3186147E00
ref: 1A

COVER

€ 10.50

0948130101
ref: 1B

FUSE(30A)

€ 6.00

0912806013
ref: 2

SCREW(6X8)

€ 1.50

3341019C01
ref: 3

COIL ASSY,IGNITION

€ 147.00

3342019C01
ref: 4

COIL ASSY,IGNITION

€ 162.50

0918006174
ref: 5

SPACER(6.2X12X14)

€ 5.50

0940406433
ref: 6

CLAMP(L:80)

€ 3.00

0940718402
ref: 7

CLAMP(L:165)

€ 2.50

0155006453
ref: 8
01550-0645A

BOLT (6X45)

€ 2.50

3351048B10
ref: 9

CAP,SPARK PLUG

€ 29.50

3354123E01
ref: 10

SEAL,SPARK PLUG CAP

€ 7.00

3354238B00
ref: 11

SEAL,HIGH TENSION CORD

€ 4.50

3354348B00
ref: 12

COVER,SPARK PLUG CAP

€ 12.50

3381008F00
ref: 13

WIRE,BATTERY MINUS

€ 24.50
