FRONT FENDER

GSX750F KATANA 2004 (K4) USA (E03)

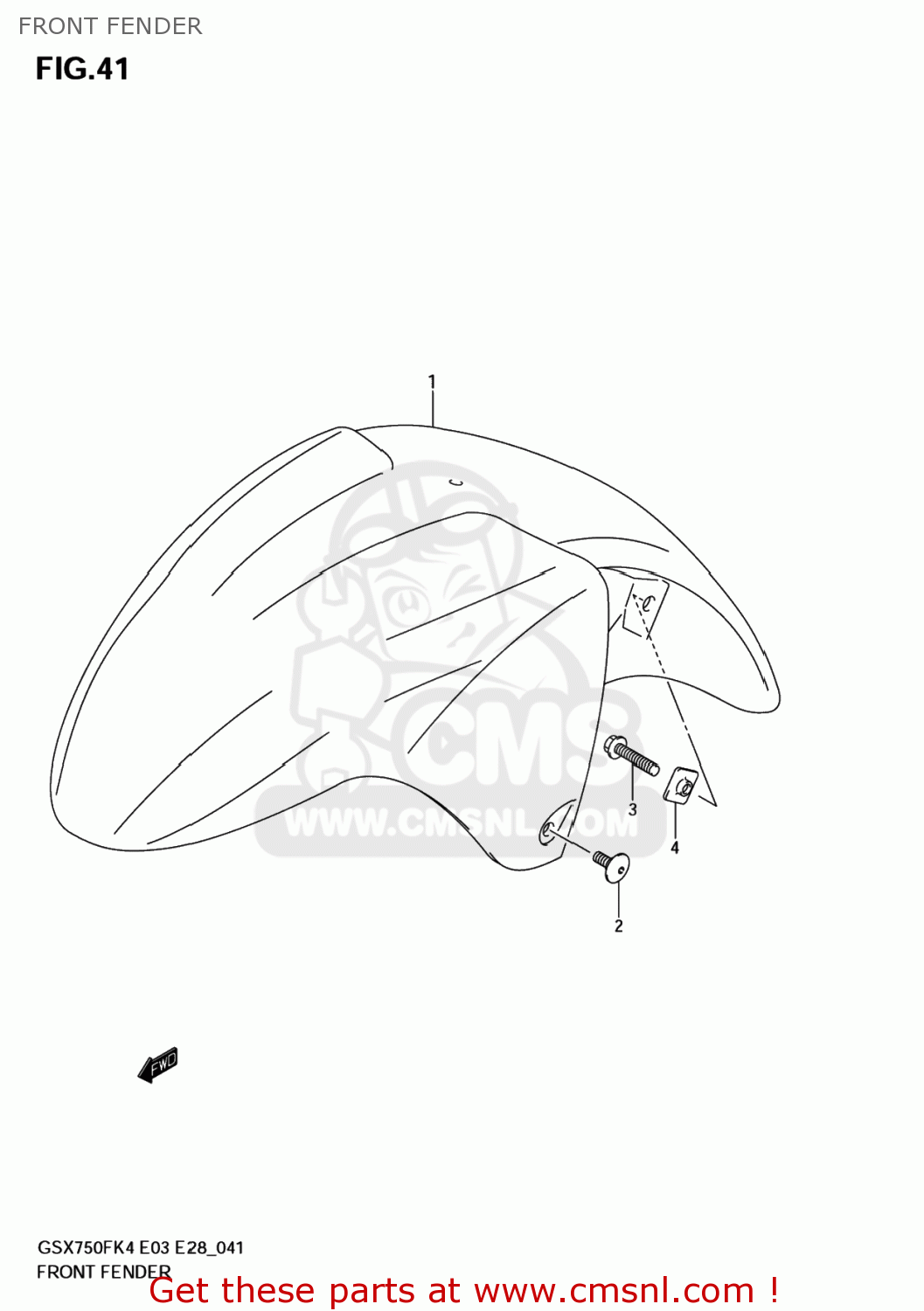

Front fender diagram GSX750F KATANA 2004 (K4) USA (E03)

FRONT FENDER GSX750F KATANA 2004 (K4) USA (E03)

FRONT FENDER GSX750F KATANA 2004 (K4) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

5311108FA0YBA
ref: 1-1

FENDER,FR

€ 136.00

1-2

5311108FA0YU8
ref: 1-2

FENDER,FR

€ 295.00

1-3

5311108FA0YAR
ref: 1-3

FENDER,FR

€ 168.00

1-4

5311108FA0019
ref: 1-4

FENDER,FR

€ 198.00

1-5

5311108FA0YHL
ref: 1-5

FENDER,FR

€ 168.00

2

0913906121
ref: 2

SCREW(6X16)

€ 5.50

3

0155006303
ref: 3
01550-0630A

BOLT

€ 2.50

4

5312206G00
ref: 4

NUT,FR FENDER

€ 4.00
