OIL COOLER
GSX750F KATANA 2004 (K4) USA (E03)

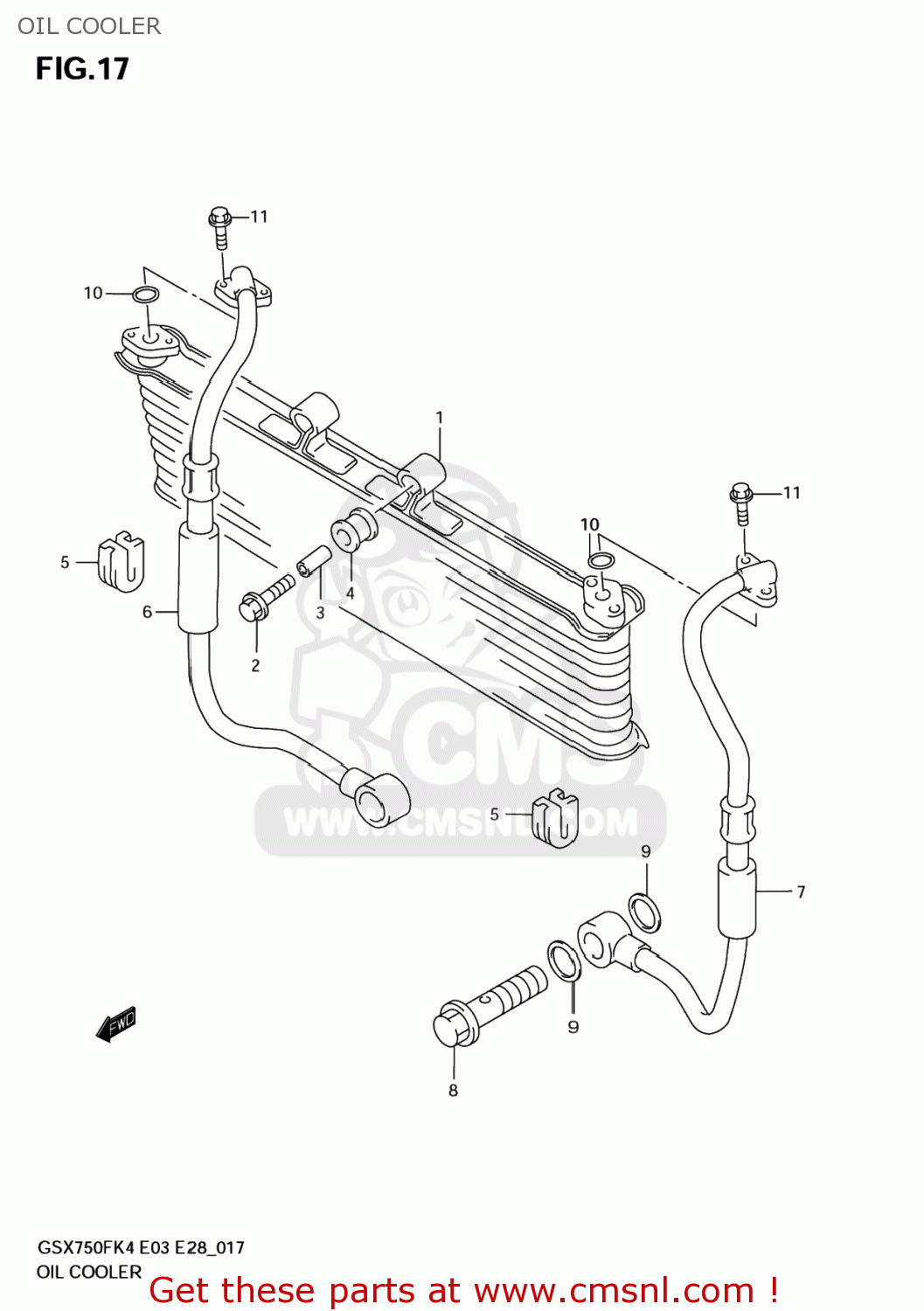

Oil cooler diagram GSX750F KATANA 2004 (K4) USA (E03)
OIL COOLER GSX750F KATANA 2004 (K4) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1660008F10
ref: 1
COOLER ASSY,OIL
€ 1,081.00
2
0911808131
ref: 2
BOLT(8X40)
€ 3.50
3
0918008304
ref: 3
SPACER(8.5X12X25)
€ 7.00
4
1662927A01
ref: 4
CUSHION,OIL COOLER NO.1
€ 4.00
5
1662827A00
ref: 5
CUSHION,OIL COOLER NO.2
€ 3.00
6
1646008F10
ref: 6
HOSE,OIL COOLER,R
€ 173.00
7
1647008F10
ref: 7
HOSE,OIL COOLER,L
€ 173.00
8
0936016002
ref: 8
BOLT UNION
€ 12.00
9
0916816002
ref: 9
GASKET(16X22X2) (NAS)
€ 2.00
10
0928012012
ref: 10
O RING(D:2.4,ID:11.8)
€ 5.00
11
0713006163
ref: 11
07130-0616B
BOLT,OIL FILLE
€ 3.00
