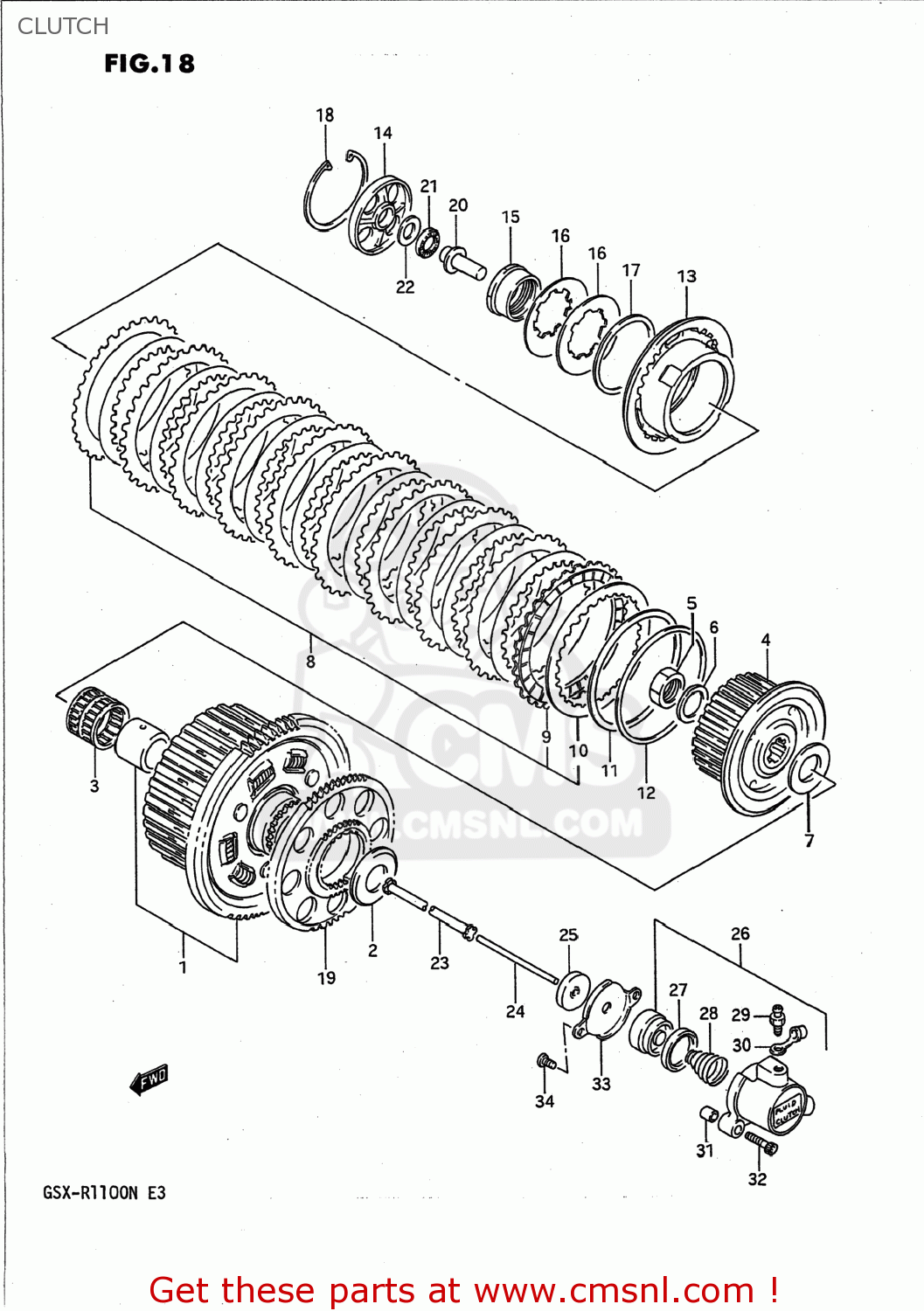

CLUTCH

ref

part #

description

quantity

1-1

2120040813
ref: 1-1
21200-40814

GEAR ASSEMBLY,PRIMARY DRIVE

€ 354.00

1-2

2120040820
ref: 1-2
21200-40821

GEAR ASSEMBLY,PRIMARY DRIVE

€ 281.50

2

0916025067
ref: 2

WASHER(25X54X2.5)

€ 9.00

3

0926335017
ref: 3

BEARING(35X40X35.8)

€ 36.50

4

2141040C01
ref: 4

HUB,CLUTCH SLEEVE

€ 103.00

5

0914024014
ref: 5

NUT

€ 8.50

6

0916424006
ref: 6

WASHER

€ 4.00

7

0916025056
ref: 7

WASHER(25X50X2.5)

€ 9.50

8

2140040C00
ref: 8
21400-40C01

PLATE ASSEMBLY,CLUTCH

€ 222.50

9

2144148B00
ref: 9

PLATE,CLUTCH DRIVE NO.1 (NAS)

€ 18.00

10

2145148B00
ref: 10

PLATE,CLUTCH DRIVEN (NAS)

€ 10.50

11

0916400007
ref: 11

WASHER

€ 13.00

12

2147140C01
ref: 12

SEAT,CL SLEEVE HUB WAVE WASHER

€ 15.00

13

2146240C02
ref: 13

DISC,CLUTCH PRESSURE

€ 134.50

14

2146340C01
ref: 14

LIFTER,CLUTCH PRESSURE DISC

€ 33.00

15

2161140C01
ref: 15

HOLDER,CLUTCH SPRING

€ 162.00

16

0916447001
ref: 16

WASHER

€ 9.00

17

2162340C00
ref: 17

SEAT,CLUTCH SPRING

€ 9.00

18

0938184002
ref: 18
09381-84003

CIRCLIP

€ 10.50

19

2272106B02
ref: 19
22721-06B03

GEAR,GENERATOR DRIVE

€ 161.50

19

2272106B02
ref: 19
22721-06B03

GEAR,GENERATOR DRIVE

€ 161.50

20

2312107A00
ref: 20
23121-31E00

PIECE,CLUTCH PUSH

€ 18.50

21

0926315003
ref: 21

BEARING(15X28X2)

€ 7.00

22

0916015015
ref: 22
09160-15045

WASHER

€ 4.00

23

2311027A00
ref: 23

ROD,CLUTCH

€ 17.00

24

2311105A01
ref: 24

ROD,CLUTCH PUSH

€ 13.50

25

0928506015
ref: 25

SEAL,OIL(6X34X5.5)

€ 8.50

26

2316006B01
ref: 26
23160-06B02

CYLINDER,CLUTCH RELEASE

€ 122.50

27

2316306B00
ref: 27

CUP

€ 5.50

28

2316405A00
ref: 28

SPRING,CLUTCH CYLINDER

€ 3.50

29

5912101A00
ref: 29

BLEEDER

€ 8.50

30

5912201A00
ref: 30

CAP,BLEEDER

€ 4.50

31

0421109129
ref: 31

PIN

€ 2.00

32

0711006255
ref: 32
07130-0625B

BOLT

€ 3.00

33

2311727A03
ref: 33
23117-46E00

PLATE,CLUTCH PUSH ROD

€ 6.50

34

0211206106
ref: 34
02112-0610B

SCREW

€ 1.50

all assemblies
