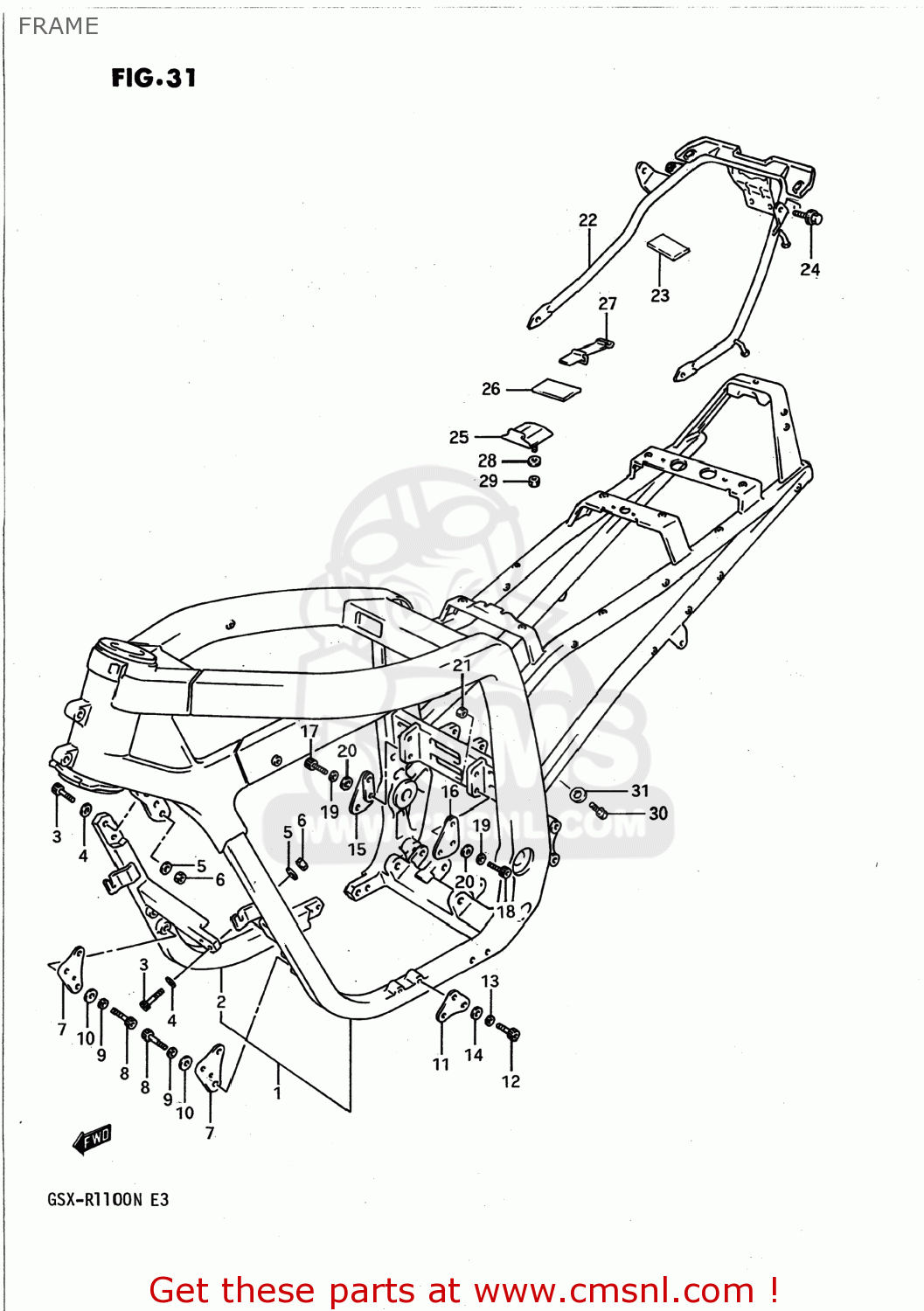

FRAME

ref

part #

description

quantity

1-1

4110041810
ref: 1-1
41100-41820

FRAME

€ 4,714.00

1-2

4110041820
ref: 1-2

FRAME SET

€ 4,714.00

2

4114040C30
ref: 2

TUBE COMP,FRAME DOWN,RIGHT

€ 0.00

3

0711010357
ref: 3
07130-10357

BOLT, LH

€ 3.50

4

0916010013
ref: 4
09160-10123

WASHER (10.1X21X2.3)

€ 2.00

5

0916410005
ref: 5
09164-10010

WASHER

€ 6.50

6

0915910027
ref: 6

NUT

€ 3.00

7

4191141C00
ref: 7

PLATE,ENG MTG NO.1

€ 25.00

8

0711008257
ref: 8
07130-08257

BOLT, FRONT LH

€ 3.50

9

0832131087
ref: 9
08321-01087

WASHER,LOCK

€ 2.00

10

0916008010
ref: 10
09160-08054

WASHER (8.2X20X1.6)

€ 1.50

11

4192117C02
ref: 11

PLATE,ENGINE MOUNT NO.2

€ 17.00

12

0711008257
ref: 12
07130-08257

BOLT, FRONT LH

€ 3.50

13

0832131087
ref: 13
08321-01087

WASHER,LOCK

€ 2.00

14

0916008010
ref: 14
09160-08054

WASHER (8.2X20X1.6)

€ 1.50

15

4194040C01
ref: 15

PLATE,ENGINE MOUNT NO.3,R

€ 15.50

16

4195040C01
ref: 16

PLATE,ENGINE MOUNTING NO

€ 14.00

17

0910608005
ref: 17

BOLT(8X22)

€ 2.00

18

0711008358
ref: 18
07130-08357

BOLT, FRONT RH

€ 4.50

19

0832131087
ref: 19
08321-01087

WASHER,LOCK

€ 2.00

20

0916008010
ref: 20
09160-08054

WASHER (8.2X20X1.6)

€ 1.50

21

0831931087
ref: 21

NUT

€ 2.50

22

4398041C10
ref: 22

GRIP COMP,REAR

€ 106.00

23

4188106C00
ref: 23

TAPE,FRAME PROTECTOR

€ 7.00

24

0151708207
ref: 24
01550-08207

BOLT

€ 3.00

25

4155049200
ref: 25
41550-49201

HOLDER,TOOL

€ 10.00

26

4488538A00
ref: 26

CUSHION

€ 3.00

27

0946200093
ref: 27

BAND

€ 8.50

28

0916006006
ref: 28
09160-06084

WASHER

€ 2.00

29

0831921066
ref: 29
08319-2106A

NUT

€ 2.00

30

0110706207
ref: 30
01500-06207

BOLT

€ 2.00

31

0916806001
ref: 31

GASKET(6.2X11X1) (NAS)

€ 1.50
