CRANKCASE
GSXR1100 1991 (M) USA (E03)

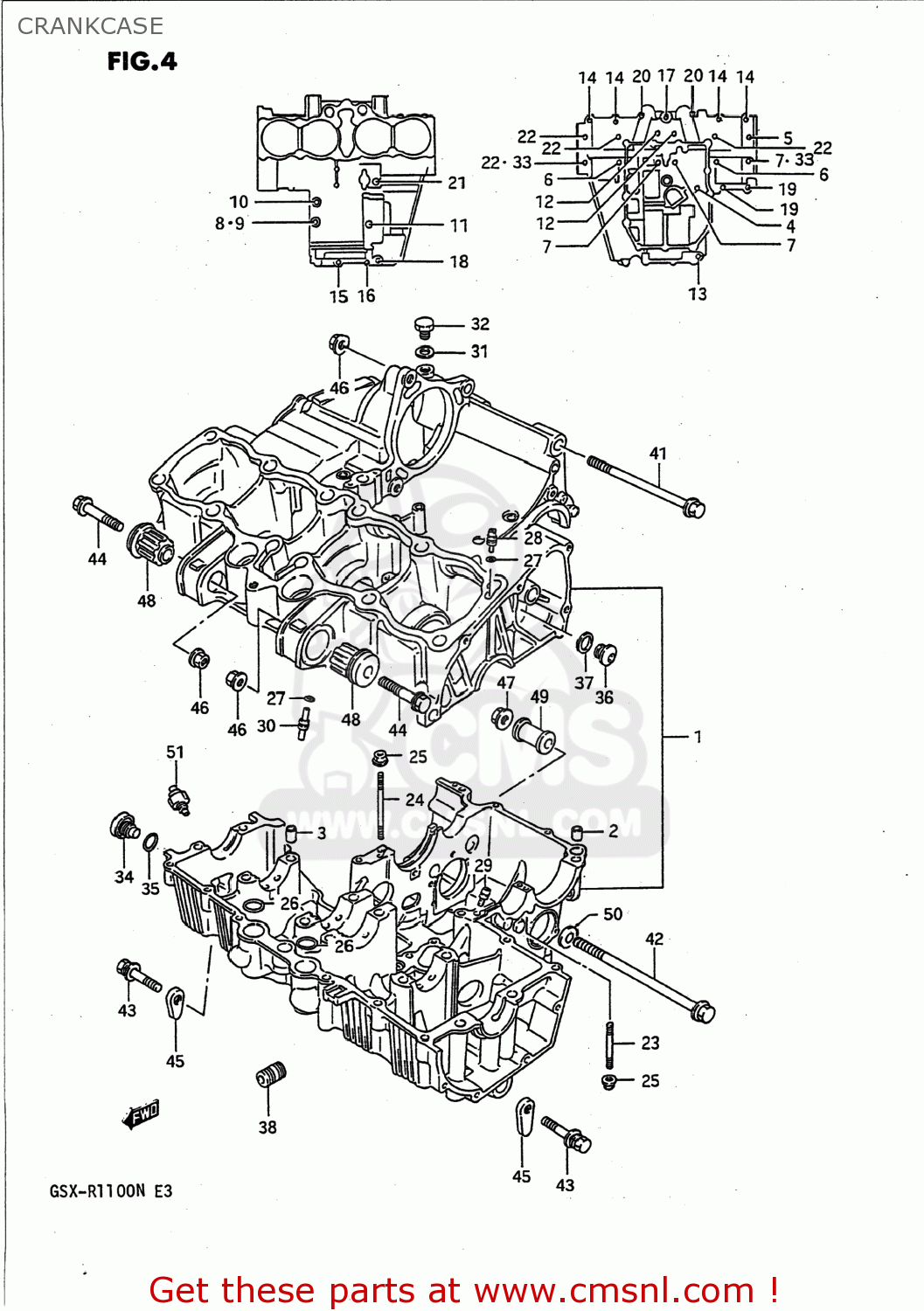

Crankcase diagram GSXR1100 1991 (M) USA (E03)
CRANKCASE GSXR1100 1991 (M) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
1130140841
ref: 1-1
CRANKCASE SET
€ 2,482.00
1-2
1130140850
ref: 1-2
CRANKCASE SET
€ 1,730.00
2
0920613004
ref: 2
PIN(10.4X13X22)
€ 3.00
3
0920611005
ref: 3
09206-11017
PIN (11X20)(SUS)
€ 6.50
4
0910306067
ref: 4
BOLT(6X105)
€ 3.50
5
0910308097
ref: 5
BOLT(8X105)
€ 3.00
6
0910308182
ref: 6
BOLT(8X125)
€ 4.50
7
0910308098
ref: 7
BOLT(8X115)
€ 3.00
8
0910606072
ref: 8
07120-0655B
BOLT 6X55
€ 3.00
9
0916806018
ref: 9
GASKET(6.2X13X1.2) (NAS)
€ 2.00
10
0711006405
ref: 10
07130-0640B
BOLT
€ 3.50
11
0711006655
ref: 11
07130-0665B
BOLT
€ 4.00
12
0711008655
ref: 12
07130-0865B
BOLT
€ 3.50
13
0151708605
ref: 13
01550-0860A
BOLT 8X60
€ 3.50
14
0151706354
ref: 14
01550-0635A
BOLT 6X35
€ 2.50
15
0151706404
ref: 15
01550-0640A
BOLT
€ 2.00
16
0151706408
ref: 16
01550-06407
BOLT
€ 2.50
17
0151706505
ref: 17
01550-0650A
BOLT 6X50
€ 2.00
18
0151706605
ref: 18
01550-0660A
BOLT ,6X60
€ 2.50
19
0151706557
ref: 19
01550-06557
BOLT
€ 2.50
20
0151706705
ref: 20
01550-0670B
BOLT
€ 2.50
21
0151706805
ref: 21
01550-06803
BOLT
€ 2.50
22
0910308105
ref: 22
BOLT(8X95)
€ 3.00
23
0142106408
ref: 23
01421-0640A
STUD BOLT
€ 2.50
24
0142106608
ref: 24
01421-0660A
STUD BOLT
€ 2.50
25
0915906017
ref: 25
08319-31067
NUT
€ 2.50
26
0928021008
ref: 26
O RING(D:2.5,ID:21)
€ 2.00
27
0928004004
ref: 27
O RING(D:1.2,ID:4)
€ 2.00
28
0949314002
ref: 28
JET,AIR
€ 8.00
29
0949324010
ref: 29
JET
€ 12.00
30
0949380008
ref: 30
JET,OIL GALLERY
€ 8.50
31
0916812002
ref: 31
GASKET(12.1X16.2X3.7) (NAS)
€ 2.00
32
0924712103
ref: 32
PLUG(12X9)
€ 3.50
33
0916808021
ref: 33
GASKET(8.5X17X2.3) (NAS)
€ 3.00
34
0924816003
ref: 34
09248-16007
PLUG
€ 16.50
35
0928017002
ref: 35
O RING(D:2.4,ID:16.8)
€ 3.50
36
0924814005
ref: 36
PLUG,14X12
€ 5.00
37
0916814004
ref: 37
GASKET(14X19.2X2) (NAS)
€ 2.50
38
1659106B00
ref: 38
16591-06B01
UNION,OIL STAND
€ 6.00
39
1222848B000E0
ref: 39
BEARING,CRANK THRUST(GREEN)
€ 8.00
39
1222848B000E0
ref: 39
BEARING,CRANK THRUST(GREEN)
€ 8.00
40-1
1222848B000C0
ref: 40-1
BEARING,CRANK THRUST(RED)
€ 7.50
40-1
1222848B000C0
ref: 40-1
BEARING,CRANK THRUST(RED)
€ 7.50
40-2
1222848B000E0
ref: 40-2
BEARING,CRANK THRUST(GREEN)
€ 8.00
40-3
1222848B000H0
ref: 40-3
BEARING,CRANK THRUST(BLACK)
€ 7.50
41
0910310139
ref: 41
09103-10078
BOLT 10X150
€ 8.50
42
0910012060
ref: 42
BOLT(12X178)
€ 11.50
43
0911810060
ref: 43
BOLT 10X60
€ 7.50
44
0151710558
ref: 44
01550-10557
BOLT 10X55
€ 3.00
45
0915910020
ref: 45
NUT
€ 7.50
46
0915910058
ref: 46
09159-10115
NUT
€ 4.00
47
0831931128
ref: 47
08319-3112A
NUT 12MM
€ 4.00
48
1168127A00
ref: 48
BUSH,ENGINE MOUNTING
€ 27.00
49
1161140C01
ref: 49
SPACER,ENGINE MOUNTING
€ 9.50
50
0832211128
ref: 50
08322-01127
WASHER
€ 2.00
51
3782033200
ref: 51
37820-33D10
SWITCH ASSEMBLY
€ 29.00
