CYLINDER
GSXR1100 1991 (M) USA (E03)

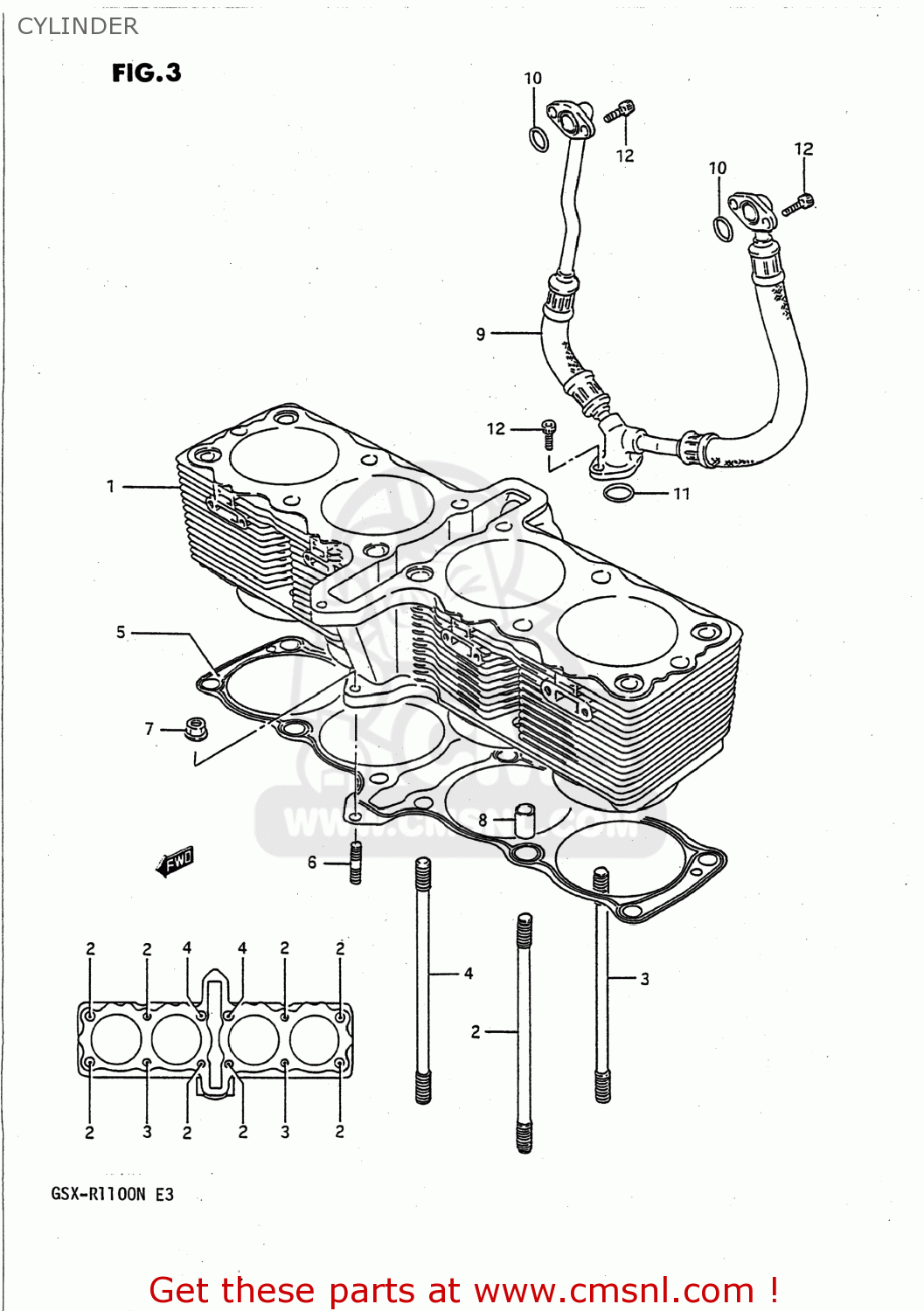

Cylinder diagram GSXR1100 1991 (M) USA (E03)
CYLINDER GSXR1100 1991 (M) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
1121040C01
ref: 1-1
11210-40C02
CYLINDER
€ 829.00
1-2
1121040C02
ref: 1-2
CYLINDER
€ 829.00
1-3
1121040C11
ref: 1-3
11210-40C12
CYLINDER
€ 1,160.00
1-3
1121040C11
ref: 1-3
11210-40C12
CYLINDER
€ 1,160.00
1-4
1121040C12
ref: 1-4
CYLINDER
€ 1,160.00
1-4
1121040C12
ref: 1-4
CYLINDER
€ 1,160.00
2
0910810081
ref: 2
09108-10145
BOLT,STUD
€ 12.50
3
0910810099
ref: 3
BOLT,STUD
€ 15.50
4
0910810108
ref: 4
09108-10112
BOLT,STUD
€ 9.00
5
1124148B00
ref: 5
11241-32F00
GASKET,CYLINDER (NAS)
€ 18.00
6
0142106205
ref: 6
01421-0620A
STUD BOLT L:20
€ 2.50
7
0831616064
ref: 7
08316-1006B
NUT 6MM
€ 2.50
8
0920613006
ref: 8
09206-13017
PIN
€ 9.00
9
1132848B02
ref: 9
11328-48B04
HOSE
€ 283.50
10
0928014011
ref: 10
O RING(D:2.5,ID:13.8)
€ 3.50
11
0928015007
ref: 11
O RING(D:2.4,ID:15.8)
€ 2.00
12
0711006165
ref: 12
07130-0616B
BOLT
€ 3.00
