CYLINDER HEAD (MODEL S/T/V)

GSXR1100W 1994 (R) (E01 E02 E04 E15 E17 18 21 22 24 25 34 39 53)

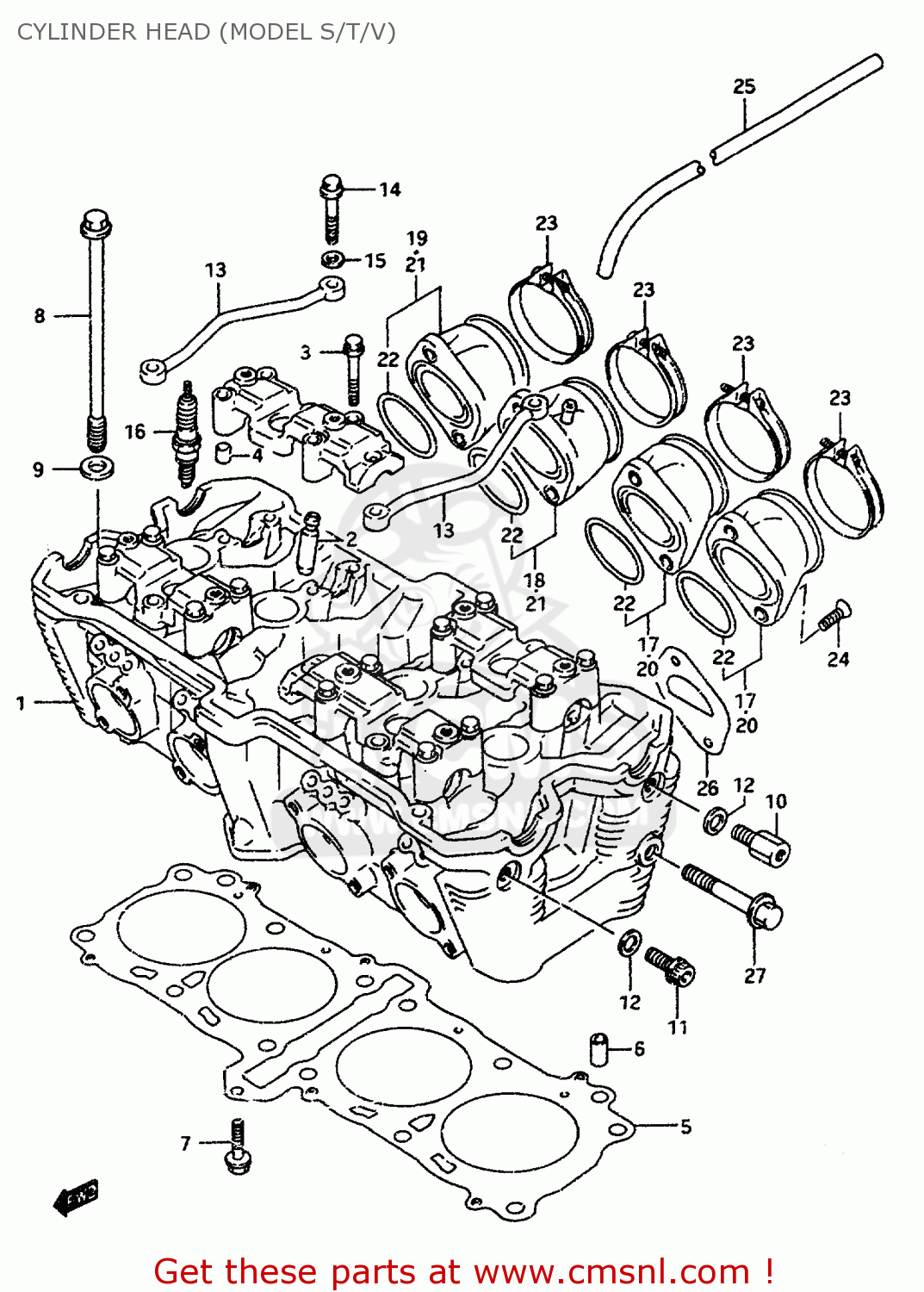

Cylinder head (model s/t/v) diagram GSXR1100W 1994 (R) (E01 E02 E04 E15 E17 18 21 22 24 25 34 39 53)

CYLINDER HEAD (MODEL S/T/V) GSXR1100W 1994 (R) (E01 E02 E04 E15 E17 18 21 22 24 25 34 39 53)
CYLINDER HEAD (MODEL S/T/V) GSXR1100W 1994 (R) (E01 E02 E04 E15 E17 18 21 22 24 25 34 39 53)
CYLINDER HEAD (MODEL S/T/V) GSXR1100W 1994 (R) (E01 E02 E04 E15 E17 18 21 22 24 25 34 39 53)
prices are in EUR
ref
part #
description
quantity
1-1
1110046E20
ref: 1-1
HEAD ASSEMBLY,CYLINDER
€ 2,068.50
1-2
1110046E30
ref: 1-2
E18,E39
HEAD ASSEMBLY,CYLINDER
€ 1,734.50
2
1111517E70
ref: 2
GUIDE,VALVE
1111517E70
€ 23.00
3
0910306165
ref: 3
BOLT(6X45)
0910306165
€ 2.50
4
0920608001
ref: 4
PIN(6.2X8X11)
0920608001
€ 2.00
5
1114146E01
ref: 5
GASKET,CYLINDER HEAD
1114146E01
€ 87.50
6
0421111189
ref: 6
PIN
0421111189
€ 2.00
7
0155006303
ref: 7
BOLT
0155006303
€ 2.50
8
0910310270
ref: 8
BOLT 10X175
€ 13.50
9
0916010082
ref: 9
WASHER(10.5X19X2)
0916010082
€ 2.00
10
0712008163
ref: 10
BOLT
0712008163
€ 3.00
11
0712008163
ref: 11
BOLT
0712008163
€ 3.00
12
0916808015
ref: 12
GASKET(8.2X14X1).6 (NAS)
0916808015
€ 2.50
13
1113117E00
ref: 13
PIPE,CYLINDER HEAD OIL
€ 41.00
14
0910306026
ref: 14
BOLT(6X39)
0910306026
€ 2.00
15
0832201063
ref: 15
WASHER
0832201063
€ 2.00
16-1
0948200458
ref: 16-1
PLUG,SPARK(NGK CR9E)
0948200458
€ 8.50
16-2
0948200459
ref: 16-2
PLUG,SPARK(U27ESR-N)
0948200459
€ 8.50
16-3
0948200456
ref: 16-3
OPT
PLUG,SPARK(CR8E)
0948200456
€ 7.00
16-4
0948200460
ref: 16-4
OPT
PLUG,SPARK(CR10E)
0948200460
€ 8.50
16-5
0948200457
ref: 16-5
OPT
PLUG,SPARK(U24ESR-N)
0948200457
€ 7.00
16-6
0948200461
ref: 16-6
OPT
PLUG,SPARK(U31ESR-N)
€ 8.50
17-1
1310146E01
ref: 17-1
PIPE ASSY,INTAKE NO.1
1310146E01
€ 94.00
17-2
1310146E22
ref: 17-2
E22
PIPE ASSY,INTAKE NO.1
1310146E22
€ 46.00
18-1
1310346E01
ref: 18-1
PIPE ASSY,INTAKE NO.3
1310346E01
€ 46.00
18-2
1310346E22
ref: 18-2
E22
PIPE ASSY,INTAKE NO.3
1310346E22
€ 54.00
19-1
1310446E01
ref: 19-1
PIPE ASSY,INTAKE NO.4
1310446E01
€ 56.50
19-2
1310446E22
ref: 19-2
E22
PIPE ASSY,INTAKE NO.4
1310446E22
€ 50.00
20
1310146E11
ref: 20
E18,E39
PIPE ASSY,INTAKE NO.1
€ 40.50
21
1310246E11
ref: 21
E18,E39
PIPE ASSY,INTAKE NO.2
€ 40.50
22
0928046006
ref: 22
O RING(D:2.4,ID:47X42)
0928046006
€ 8.00
23-1
0940256208
ref: 23-1
CLAMP
0940256208
€ 3.50
23-2
0940252208
ref: 23-2
E18,E39
CLAMP
0940252208
€ 5.50
24-1
0912606014
ref: 24-1
MODEL S
SCREW(6X16)
0912606014
€ 2.00
24-2
0912006010
ref: 24-2
MODEL T/V
SCREW
0912006010
€ 3.00
25
0935450103600
ref: 25
L:600-180
HOSE,VACUUM
€ 7.50
26-1
1311746E00
ref: 26-1
E2 MODEL T
PLATE, INTAKE
€ 6.50
26-2
1311746E10
ref: 26-2
E2 MODEL T
PLATE, INTAKE
€ 0.00
27
0155010403
ref: 27
BOLT
€ 4.00
26-1
1311746E00
ref: 26-1
E2
PLATE, INTAKE
€ 6.50
26-2
1311746E10
ref: 26-2
E39
PLATE, INTAKE
€ 0.00
