GEAR SHIFTING (MODEL T/V)

GSXR1100W 1994 (R) (E01 E02 E04 E15 E17 18 21 22 24 25 34 39 53)

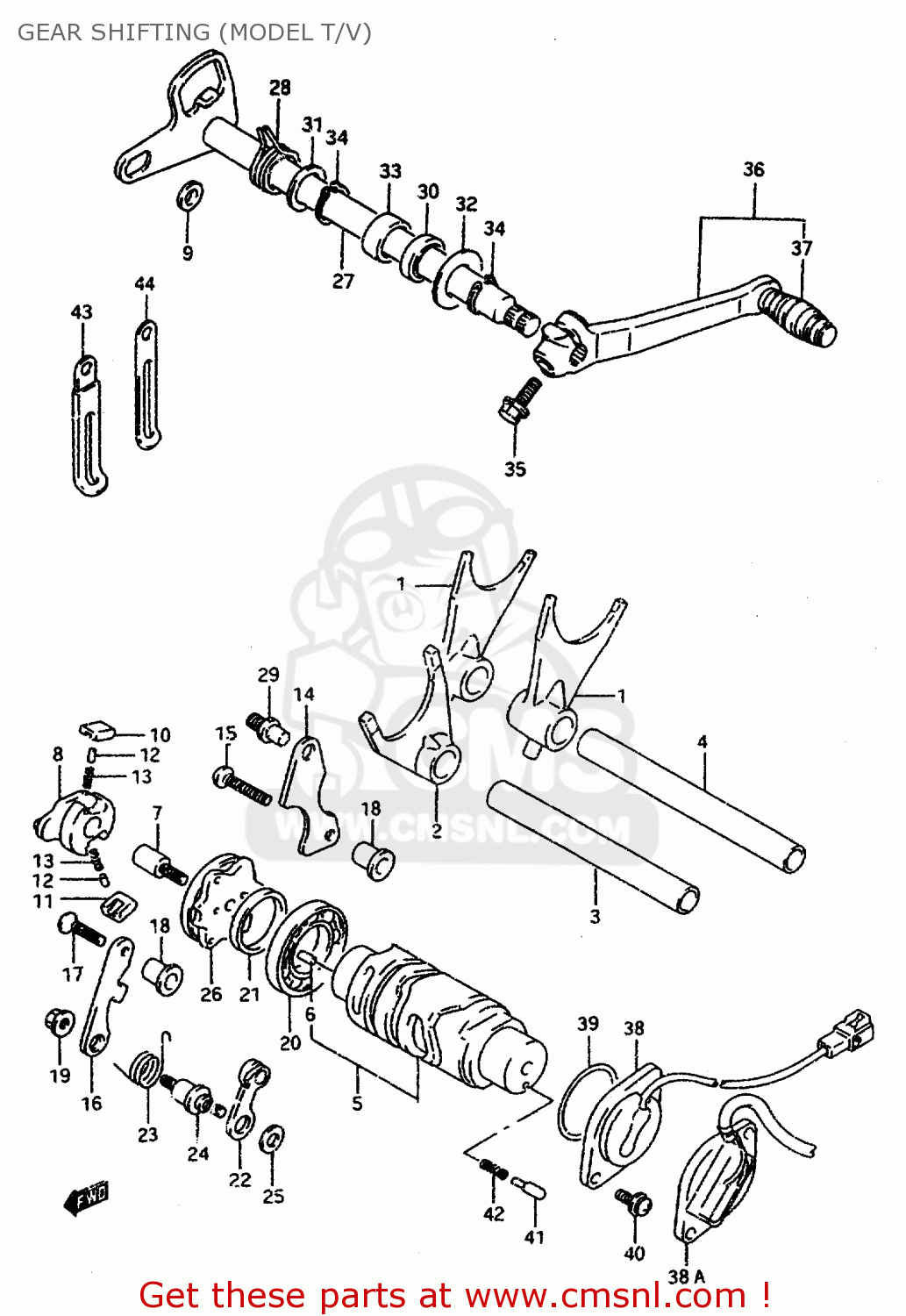

Gear shifting (model t/v) diagram GSXR1100W 1994 (R) (E01 E02 E04 E15 E17 18 21 22 24 25 34 39 53)

GEAR SHIFTING (MODEL T/V) GSXR1100W 1994 (R) (E01 E02 E04 E15 E17 18 21 22 24 25 34 39 53)
GEAR SHIFTING (MODEL T/V) GSXR1100W 1994 (R) (E01 E02 E04 E15 E17 18 21 22 24 25 34 39 53)
GEAR SHIFTING (MODEL T/V) GSXR1100W 1994 (R) (E01 E02 E04 E15 E17 18 21 22 24 25 34 39 53)
prices are in EUR
ref
part #
description
quantity
1
2521117E00
ref: 1
FORK,GEAR SHIFT NO.1
€ 64.50
2
2523146E00
ref: 2
FORK,GEAR SHIFT NO.3
2523146E00
€ 76.00
3
2541126D01
ref: 3
SHAFT,GEAR SHIFT FORK
2541126D01
€ 16.00
4
2541127A00
ref: 4
SHAFT,GEAR SHIFT FORK(L:128)
2541127A00
€ 23.50
5
2531046E00
ref: 5
CAM,GEAR SHIFT
€ 165.50
6
0422104089
ref: 6
PIN
0422104089
€ 1.50
7
2531212C00
ref: 7
PIN,SHIFT CAM DRIVEN GEAR
2531212C00
€ 6.00
8-1
2532233C00
ref: 8-1
MODEL T
SHIFTER,GEAR SHIFT CAM
€ 49.50
8-2
2532233C01
ref: 8-2
MODEL V
SHIFTER,GEAR SHIFT CAM
2532233C01
€ 49.50
9
0918007014
ref: 9
SPACER(7X10X5)
0918007014
€ 4.00
10
2532334201
ref: 10
PAWL,GEAR SHIFT NO.1
2532334201
€ 6.00
11
2532434201
ref: 11
PAWL,GEAR SHIFT NO.2
2532434201
€ 6.00
12
0926105003
ref: 12
PIN(5X8)
0926105003
€ 1.50
13
0944004003
ref: 13
SPRING
0944004003
€ 1.50
14
2533126D00
ref: 14
LIFTER,GEAR SHIFT PAWL
2533126D00
€ 6.00
15
0211206303
ref: 15
SCREW 6X30
0211206303
€ 2.50
16
2534117E00
ref: 16
GUIDE,GEAR SHIFT CAM
€ 7.50
17
0212206303
ref: 17
SCREW
0212206303
€ 2.00
18
0918006202
ref: 18
SPACER(6.1X10X16)
0918006202
€ 4.00
19
0831610063
ref: 19
NUT
0831610063
€ 2.50
20
0926225006
ref: 20
BEARING(25X47X8)
0926225006
€ 24.00
21
0916025059
ref: 21
WASHER(25X32X3)
0916025059
€ 5.00
22
2535026D01
ref: 22
STOPPER,GEAR SHIFT CAM
2535026D01
€ 8.50
23
2535526D21
ref: 23
SPRING,STOPPER ARM
2535526D21
€ 11.00
24
2535612C00
ref: 24
SUPPORT,CAM STOPPER ARM
2535612C00
€ 9.50
25
0821106141
ref: 25
WASHER
0821106141
€ 2.50
26
2538012B00
ref: 26
PLATE,GEAR SHIFT CAM
2538012B00
€ 10.00
27
2551017E00
ref: 27
SHAFT COMP,GEAR SHIFTING
2551017E00
€ 66.00
28
0944420003
ref: 28
SPRING
0944420003
€ 5.50
29
2567101000
ref: 29
STOPPER,GEAR SHIFT CAM
2567101000
€ 3.00
30
0928314006
ref: 30
SEAL,OIL(14X22X6)
0928314006
€ 6.50
31-1
0821114221
ref: 31-1
MODEL T
WASHER,THRUST
€ 3.50
31-2
0918114167
ref: 31-2
MODEL V
SHIM(14X22X1)
0918114167
€ 3.50
32
0916014016
ref: 32
WASHER(14X29X0.8)
0916014016
€ 1.50
33
0926314027
ref: 33
BEARING(14X20X12)
0926314027
€ 11.00
34
0833131146
ref: 34
CIRCLIP
0833131146
€ 2.00
35
0150006353
ref: 35
BOLT
€ 2.50
36
2560046E10
ref: 36
LEVER ASSY,GEAR SHIFT
2560046E10
€ 66.00
37
2565216500
ref: 37
RUBBER,GEAR SHIFT PEDAL
2565216500
€ 4.00
38
3772048B00
ref: 38
E18,E37,P37,E39
TERMINAL BASE ASSY,NEUTRAL
3772048B00
€ 57.00
38A
3773031E01
ref: 38A
E2,E4,E22,E24,E25,E3
BASE ASSY,GEAR SHIFT TERMINAL
3773031E01
€ 178.00
39
0928035006
ref: 39
O RING(D:2.4,ID:35.5)
0928035006
€ 4.00
40
0211275163
ref: 40
SCREW
0211275163
€ 2.50
41
0920905011
ref: 41
PIN(5X15.5)
0920905011
€ 2.00
42
0944004010
ref: 42
SPRING
0944004010
€ 1.50
43
0940406429
ref: 43
CLAMP(L:45)
€ 2.50
44-1
0940406431
ref: 44-1
CLAMP(L:65)
0940406431
€ 2.50
44-2
0940406433
ref: 44-2
CLAMP(L:80)
0940406433
€ 3.00
40-1
0211275168
ref: 40-1
MODEL P/R
SCREW
0211275168
€ 2.50
40-2
0211275163
ref: 40-2
MODEL S
SCREW
0211275163
€ 2.50
41
0920905011
ref: 41
PIN(5X15.5)
0920905011
€ 2.00
42
0944004010
ref: 42
SPRING
0944004010
€ 1.50
43-1
0940406402
ref: 43-1
MODEL P/R
CLAMP
€ 2.50
43-2
0940406429
ref: 43-2
MODEL S
CLAMP(L:45)
€ 2.50
44-1
0940406404
ref: 44-1
CLAMP
0940406404
€ 3.00
44-2
0940406426
ref: 44-2
CLAMP
0940406426
€ 3.00
44-3
0940406431
ref: 44-3
MODEL S
CLAMP(L:65)
0940406431
€ 2.50
44-4
0940406433
ref: 44-4
MODEL S
CLAMP(L:80)
0940406433
€ 3.00
