STEERING STEM

GSXR1100W 1994 (R) (E01 E02 E04 E15 E17 18 21 22 24 25 34 39 53)

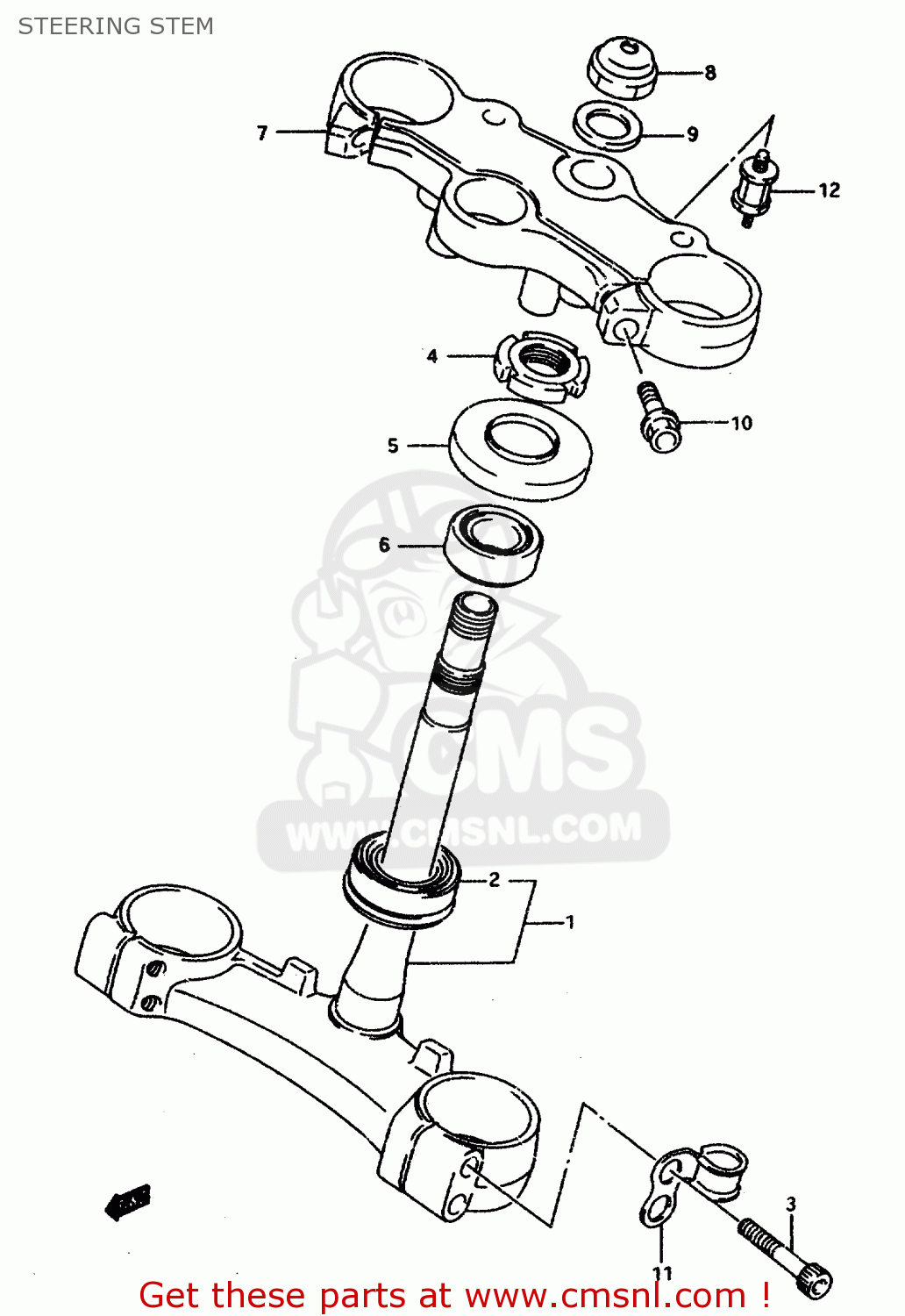

Steering stem diagram GSXR1100W 1994 (R) (E01 E02 E04 E15 E17 18 21 22 24 25 34 39 53)

STEERING STEM GSXR1100W 1994 (R) (E01 E02 E04 E15 E17 18 21 22 24 25 34 39 53)
STEERING STEM GSXR1100W 1994 (R) (E01 E02 E04 E15 E17 18 21 22 24 25 34 39 53)
STEERING STEM GSXR1100W 1994 (R) (E01 E02 E04 E15 E17 18 21 22 24 25 34 39 53)
prices are in EUR
ref
part #
description
quantity
1-1
5141046E00
ref: 1-1
MODEL P/R
STEM,STEERING
€ 721.00
1-2
5141046E20
ref: 1-2
MODEL S/T/V
STEM,STEERING
€ 745.00
2
0926530009
ref: 2
BEARING(30X55X17)
0926530009
€ 49.50
3-1
0711010505
ref: 3-1
MODEL P/R
BOLT
0711010505
€ 5.50
3-2
0155008453
ref: 3-2
MODEL S/T/V
BOLT
€ 3.00
4
5163128000
ref: 4
NUT,STEERING STEM(25X44X10)
5163128000
€ 12.50
5
0928534009
ref: 5
SEAL,OIL(34X69X11.9)
0928534009
€ 16.50
6
0926525019
ref: 6
BEARING(25X47X15)
0926525019
€ 48.50
7-1
5131146E00
ref: 7-1
MODEL P/R
HEAD,STEERING STEM
€ 353.50
7-2
5131146E20
ref: 7-2
MODEL S/T/V
HEAD,STEERING STEM
€ 330.50
8
5135328A10
ref: 8
NUT
5135328A10
€ 30.00
9
5135624B01
ref: 9
WASHER(22.5X32X1.6)
5135624B01
€ 3.00
10-1
5145146E00
ref: 10-1
MODEL P/R
BOLT,LWR
€ 15.50
10-2
0155008407
ref: 10-2
MODEL S/T/V
BOLT
0155008407
€ 3.50
11
3493817E10
ref: 11
MODEL P/R
GUIDE,SPEEDOMETER CABLE
3493817E10
€ 8.00
12
1778810D00
ref: 12
MODEL P/R
BOLT,SPEEDOMETER CUSHION
1778810D00
€ 8.50
