STEERING DAMPER

GSXR1100W 1994 (R) (E01 E02 E04 E15 E17 18 21 22 24 25 34 39 53)

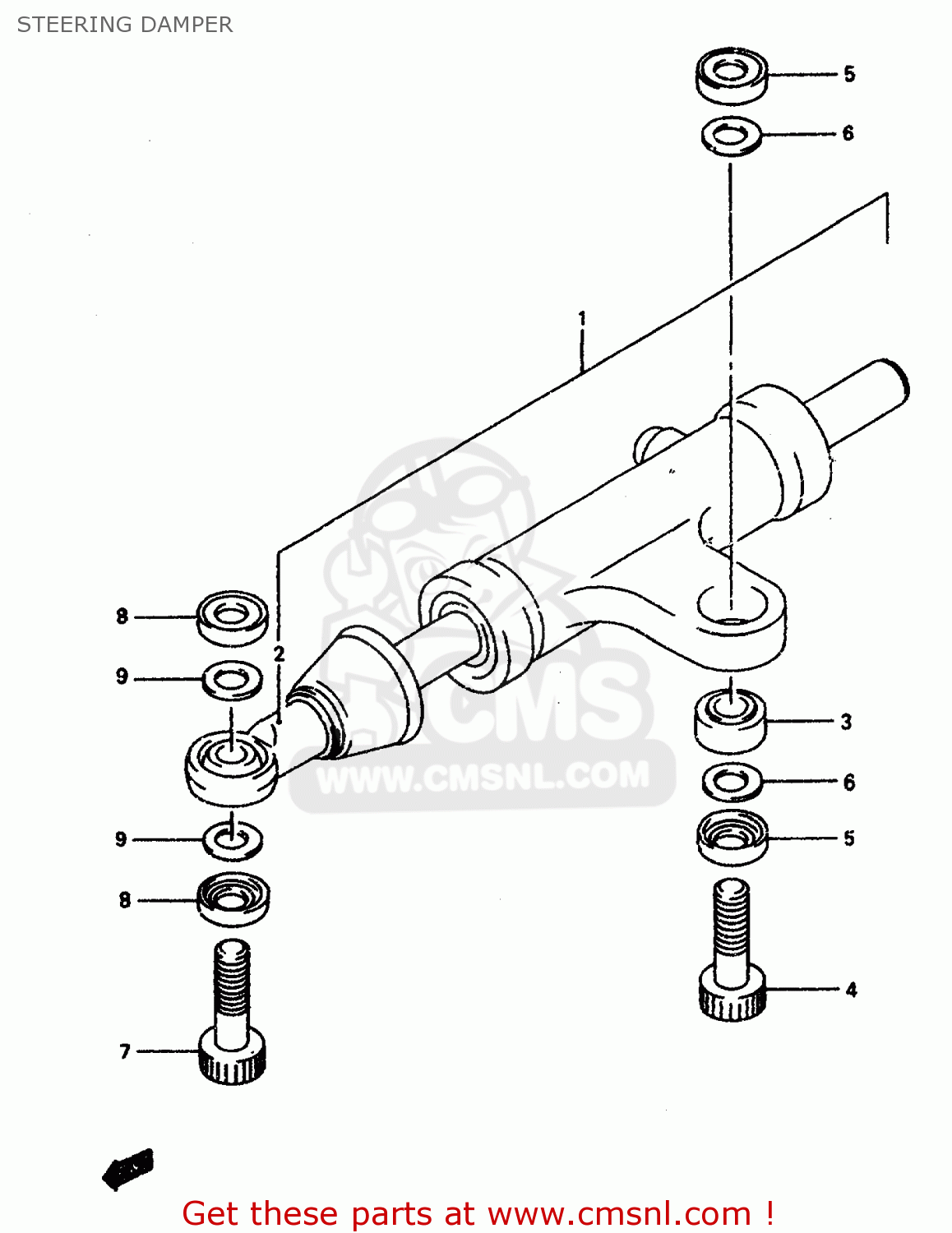

Steering damper diagram GSXR1100W 1994 (R) (E01 E02 E04 E15 E17 18 21 22 24 25 34 39 53)

prices are in EUR

ref

part #

description

quantity

5175046E00
ref: 1

DAMPER ASSY,STEERING

€ 794.50

5176040C01
ref: 2

PILLOW BALL,ROD END

€ 111.50

0926908003
ref: 3

BEARING(8X17.5X11)

€ 39.50

4-1

0713008307
ref: 4-1
MODEL P/R

BOLT

€ 4.50

4-2

0713008303
ref: 4-2
MODEL S/T/V

BOLT

€ 3.00

6433940410
ref: 5

6433940410

6-1

0822108126
ref: 6-1
MODEL P/R/S/T

SHIM

€ 3.00

6-2

0918108106
ref: 6-2
MODEL V

SHIM(8X12X0.8)

€ 3.00

7-1

0713008307
ref: 7-1
MODEL P/R

BOLT

€ 4.50

7-2

0713008303
ref: 7-2
MODEL S/T/V

BOLT

€ 3.00

6433940410
ref: 8

6433940410

9-1

0822108126
ref: 9-1
MODEL P/R/S/T

SHIM

€ 3.00

9-2

0918108106
ref: 9-2
MODEL V

SHIM(8X12X0.8)

€ 3.00
