CYLINDER
GSXR1100W 1996 (T) USA (E03)

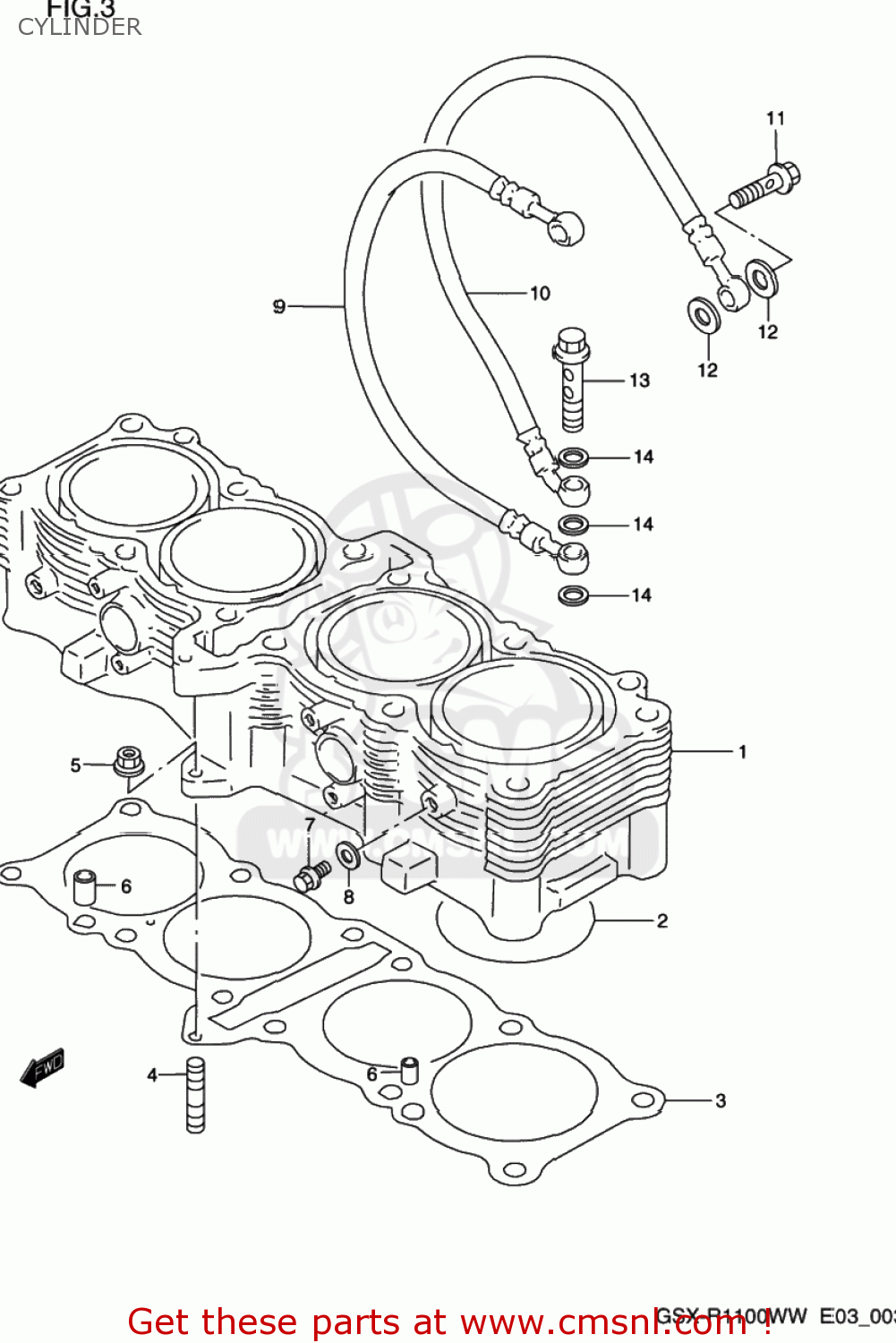

Cylinder diagram GSXR1100W 1996 (T) USA (E03)
CYLINDER GSXR1100W 1996 (T) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
1121046E00
ref: 1-1
11210-46E01
CYLINDER COMP
€ 1,481.50
1-2
1121046E01
ref: 1-2
CYLINDER
€ 1,481.50
2
0928081002
ref: 2
O RING(D:1.9,ID:79.5)
€ 24.50
3
1124146E01
ref: 3
GASKET,CYLINDER
€ 35.50
4-1
0142106205
ref: 4-1
01421-0620A
STUD BOLT L:20
€ 2.50
4-2
0142106203
ref: 4-2
01421-0620A
STUD,M6X1X32
€ 2.50
5-1
0831616064
ref: 5-1
08316-1006B
NUT 6MM
€ 2.50
5-2
0831610063
ref: 5-2
08316-1006B
NUT
€ 2.50
6
0421111189
ref: 6
PIN
€ 2.00
7
1741514300
ref: 7
BOLT,DRAIN
€ 2.00
8
0916808008
ref: 8
09168-08016
GASKET 8.2X14X1 (NAS)
€ 1.00
9-1
1128117E00
ref: 9-1
11281-17E01
HOSE,OIL
€ 81.50
9-2
1128117E01
ref: 9-2
HOSE,OIL,R
€ 81.50
10-1
1128217E00
ref: 10-1
11282-17E01
HOSE,OIL
€ 107.00
10-2
1128217E01
ref: 10-2
HOSE,OIL,L
€ 107.00
11
1128417E00
ref: 11
09360-08013
BOLT,OIL PIPE UNION,NO
€ 15.00
12-1
0916808026
ref: 12-1
09168-08016
GASKET (NAS)
€ 1.00
12-2
0916808016
ref: 12-2
GASKET(8.2X14X1) (NAS)
€ 1.00
13
1128532C00
ref: 13
09360-10052
BOLT,OIL PIPE UNION,NO
€ 16.50
14
0916110009
ref: 14
WASHER(10X15X1.5)
€ 2.00
