FRAME COVER (MODEL S)

GSXR1100W 1996 (T) USA (E03)

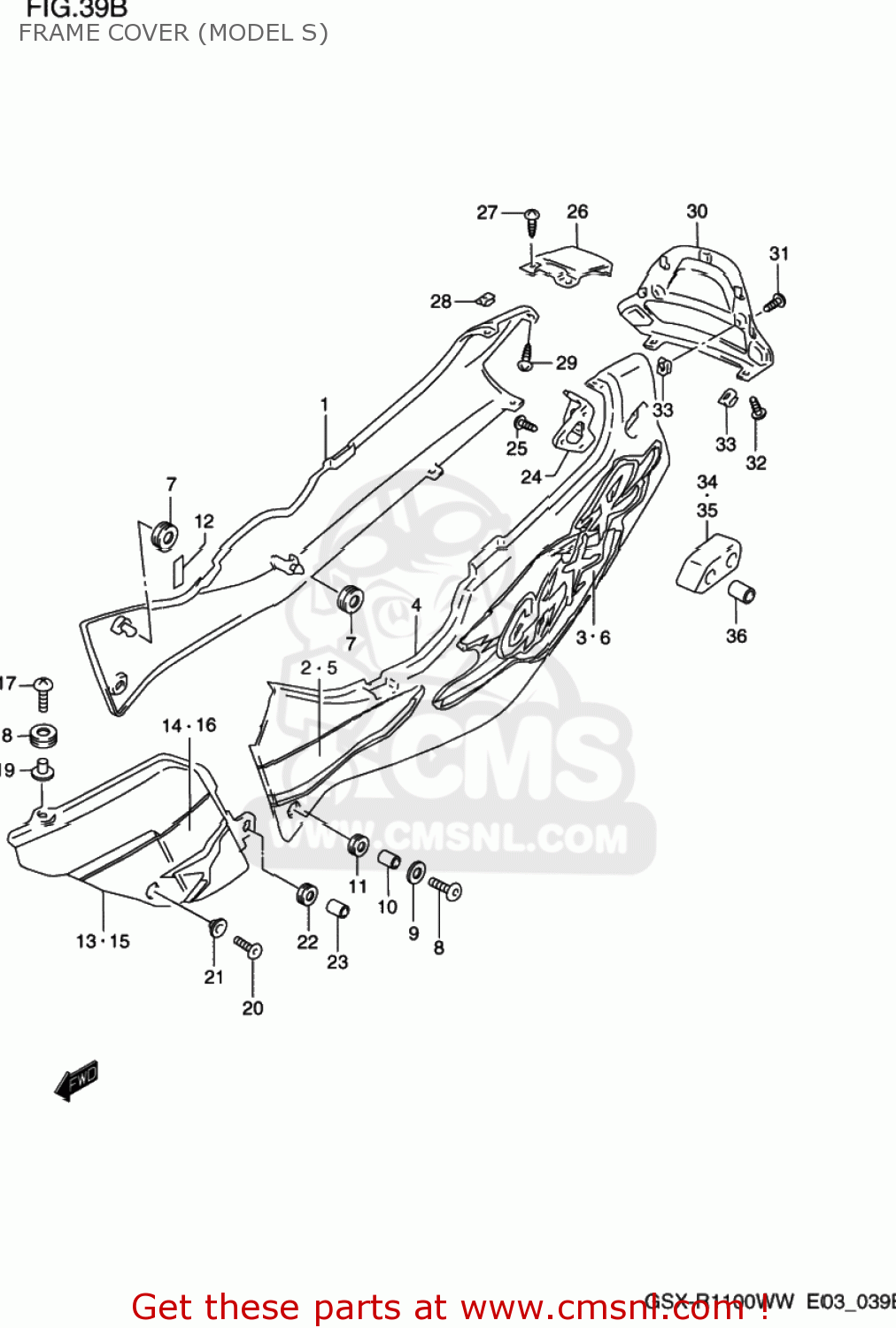

Frame cover (model s) diagram GSXR1100W 1996 (T) USA (E03)

FRAME COVER (MODEL S) GSXR1100W 1996 (T) USA (E03)
FRAME COVER (MODEL S) GSXR1100W 1996 (T) USA (E03)
FRAME COVER (MODEL S) GSXR1100W 1996 (T) USA (E03)
prices are in EUR
ref
part #
description
quantity
1-1
4710046E400JW
ref: 1-1
COVER ASSY,FRAME,R(WHITE)
€ 366.50
1-2
4710046E4033J
ref: 1-2
COVER ASSEMBLY,FRAME,RIGHT
€ 366.50
2-1
6813546E30D4H
ref: 2-1
TAPE,FRAME COVER,RIGHT
€ 25.00
2-2
6813546E30D6B
ref: 2-2
TAPE,FRAME COVER,RIGHT
€ 18.00
3-1
6813146E20Y72
ref: 3-1
EMBLEM,FRAME COVER,R
€ 74.00
3-2
6813146E20Y83
ref: 3-2
EMBLEM,FRAME COVER,R
€ 74.00
4-1
4720046E400JW
ref: 4-1
COVER ASSEMBLY,FRAME,LEFT
4720046E400JW
€ 360.50
4-2
4720046E4033J
ref: 4-2
COVER ASSEMBLY,FRAME,LEFT
€ 366.50
5-1
6814546E30D4H
ref: 5-1
TAPE,FRAME COVER,L
€ 15.50
5-2
6814546E30D6B
ref: 5-2
TAPE,FRAME COVER,L
€ 15.50
6-1
6814146E20Y72
ref: 6-1
EMBLEM,FRAME COVER,LEFT
€ 81.50
6-2
6814146E20Y83
ref: 6-2
EMBLEM,FRAME COVER,LEFT
6814146E20Y83
€ 81.50
7
0932008018
ref: 7
CUSHION
0932008018
€ 4.00
8
0913906042
ref: 8
SCREW(6X30)
0913906042
€ 7.50
9
0916006006
ref: 9
09160-06084
WASHER
0916006006
€ 2.00
10
0918006011
ref: 10
09180-06263
SPACER (6.1X9X9)
0918006011
€ 2.00
11
0932009016
ref: 11
CUSHION
0932009016
€ 2.50
12
4488538A00
ref: 12
CUSHION
4488538A00
€ 3.00
13-1
4750046E400JW
ref: 13-1
COVER ASSEMBLY,FRAME BODY
4750046E400JW
€ 146.50
13-2
4750046E4033J
ref: 13-2
COVER ASSY,FRAME BODY,R
€ 140.00
14-1
6866546E10D4H
ref: 14-1
TAPE,FRAME COVER BODY,R
€ 18.00
14-2
6866546E10D6B
ref: 14-2
TAPE,FRAME COVER BODY,R
€ 18.00
15-1
4760046E400JW
ref: 15-1
COVER ASSEMBLY,FRAME BODY
€ 146.50
15-2
4760046E4033J
ref: 15-2
COVER ASSEMBLY,FRAME BODY
€ 146.50
16-1
6867546E10D4H
ref: 16-1
TAPE,FRAME COVER BODY
€ 18.00
16-2
6867546E10D6B
ref: 16-2
TAPE,FRAME COVER BODY
€ 18.00
17
0913606113
ref: 17
SCREW(6X25)
0913606113
€ 2.00
18
0932009016
ref: 18
CUSHION
0932009016
€ 2.50
19
0916906062
ref: 19
WASHER
0916906062
€ 3.00
20
0913905025
ref: 20
SCREW(5X14)
0913905025
€ 2.00
21
0916906040
ref: 21
WASHER
0916906040
€ 2.00
22
0932009016
ref: 22
CUSHION
0932009016
€ 2.50
23
0918006011
ref: 23
09180-06263
SPACER (6.1X9X9)
0918006011
€ 2.00
24-1
4553146E00
ref: 24-1
BRACKET,RR COMBINATION LAMP,L
€ 13.50
24-2
4553246E00
ref: 24-2
BRACKET,RR COMBINATION LAMP,L
€ 13.50
25
0354104103
ref: 25
03541-0410A
SCREW
0354104103
€ 1.50
26-1
4730046E000JW
ref: 26-1
COVER ASSY,FRAME CTR
€ 40.00
26-2
4730046E0033J
ref: 26-2
COVER ASSY,FRAME CTR
4730046E0033J
€ 32.00
27
0214205123
ref: 27
02142-0512A
SCREW 5X12
0214205123
€ 1.50
28
0914805021
ref: 28
NUT
0914805021
€ 1.50
29
0354104103
ref: 29
03541-0410A
SCREW
0354104103
€ 1.50
30
4741146E00
ref: 30
COVER,FRAME RR
4741146E00
€ 24.50
31
0913905021
ref: 31
SCREW(5X12)
0913905021
€ 2.00
32
0214205123
ref: 32
02142-0512A
SCREW 5X12
0214205123
€ 1.50
33
0914805021
ref: 33
NUT
0914805021
€ 1.50
34
4623846E00
ref: 34
CUSHION,PILLION RIDER HANDLE,R
4623846E00
€ 12.50
35
4623946E00
ref: 35
CUSHION,PILLION RIDER HANDLE,L
4623946E00
€ 9.50
36
0918008180
ref: 36
09180-08180-XC0
SPACER (8.5X16X37)
0918008180
€ 5.50
