WIRING HARNESS (MODEL P/R)
GSXR1100W 1996 (T) USA (E03)

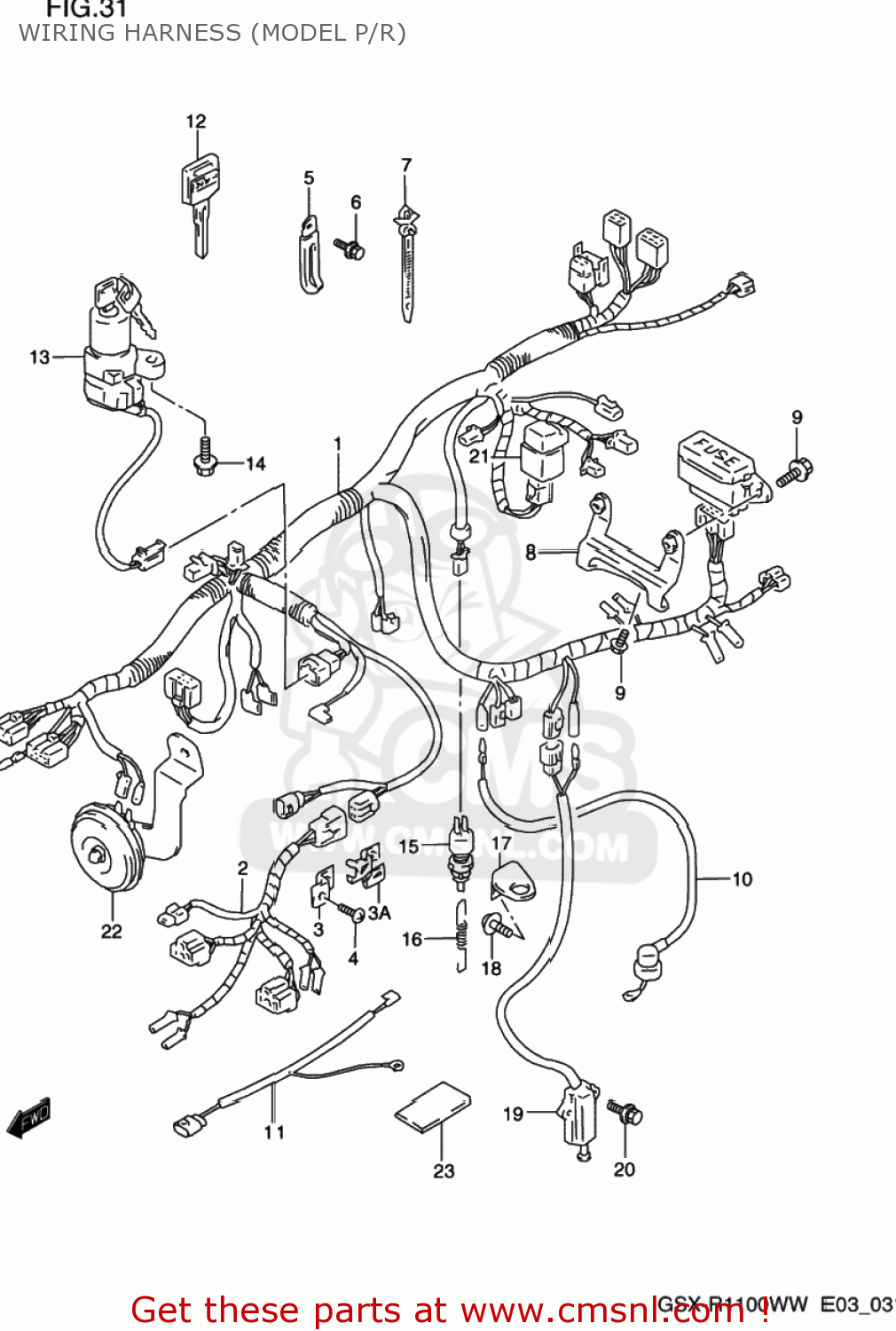

Wiring harness (model p/r) diagram GSXR1100W 1996 (T) USA (E03)
WIRING HARNESS (MODEL P/R) GSXR1100W 1996 (T) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
3661046E10
ref: 1-1
36610-17E13
HARNESS,WIRING NO.1
€ 457.50
1-2
3661046E12
ref: 1-2
36610-17E13
HARNESS,WIRING
€ 457.50
2
3662017E10
ref: 2
36856-18D01
HARNESS,WIRING NO.2
€ 95.00
3
3668717E00
ref: 3
HOLDER,COUPLER
€ 6.00
3A
3668717E10
ref: 3A
HOLDER,COUPLER
€ 8.50
4
0214205103
ref: 4
02142-0510B
SCREW
€ 2.50
5-1
0940406413
ref: 5-1
09404-06432
CLAMP
€ 2.50
5-2
0940406206
ref: 5-2
09404-06432
CLAMP(L:45)
€ 2.50
5-3
0940406426
ref: 5-3
09404-06433
CLAMP
€ 3.00
5-4
0940410403
ref: 5-4
09404-10205
CLAMP
€ 2.50
6
0155006107
ref: 6
BOLT
€ 2.50
7-1
0940711402
ref: 7-1
CLAMP(L:90)
€ 2.50
7-2
0940714403
ref: 7-2
CLAMP(L:125)
€ 2.50
7-3
0940718403
ref: 7-3
09407-18402
CLAMP L:165
€ 2.50
7-4
0940725401
ref: 7-4
CLAMP(L:235)
€ 4.00
8
4741017E00
ref: 8
BRACKET,FUSE BOX
€ 13.50
9
0155006127
ref: 9
BOLT
€ 2.50
10
3685146E00
ref: 10
WIRE,OIL PRESSURE SWITCH LEAD
€ 14.00
11-1
3685246EZ0
ref: 11-1
WIRE,WATER TEMPERATURE GAUGE
€ 12.50
11-2
3685246E10
ref: 11-2
WIRE,WATER TEMPERATURE GAUGE
€ 9.50
12
3714626D10
ref: 12
KEY,BLANK
€ 41.50
13-1
3710033D00
ref: 13-1
37100-26D03
LOCK ASSEMBLY,STEERING
€ 134.00
13-2
3710026D02
ref: 13-2
37100-26D03
LOCK ASSEMBLY,STEERING
€ 134.00
14
0913906026
ref: 14
SCREW(6X18)
€ 2.50
15
3774024A00
ref: 15
SWITCH ASSY,STOP LAMP
€ 20.50
16
0944306012
ref: 16
SPRING
€ 3.00
17
4325033C00
ref: 17
BRACKET,STOP LAMP SWITCH
€ 5.00
18
0913906027
ref: 18
SCREW(6X12)
€ 3.00
19
3784032C01
ref: 19
SWITCH ASSY,SIDE STAND WARNING
€ 67.50
20-1
0151706164
ref: 20-1
01550-0616A
BOLT
€ 2.50
20-2
0155006163
ref: 20-2
01550-0616A
BOLT
€ 2.50
21-1
3874024B10
ref: 21-1
38740-24X50
RELAY ASSEMBLY
€ 37.50
21-2
3874024X50
ref: 21-2
RELAY ASSY
€ 37.50
22
3850217E00
ref: 22
38502-17E12
HORN ASSEMBLY,LOW PITCH
€ 78.00
23
3692010B00
ref: 23
TAPE
€ 3.00
