SECOND AIR (CALIFORNIA ONLY)

GSXR1100W 1996 (T) USA (E03)

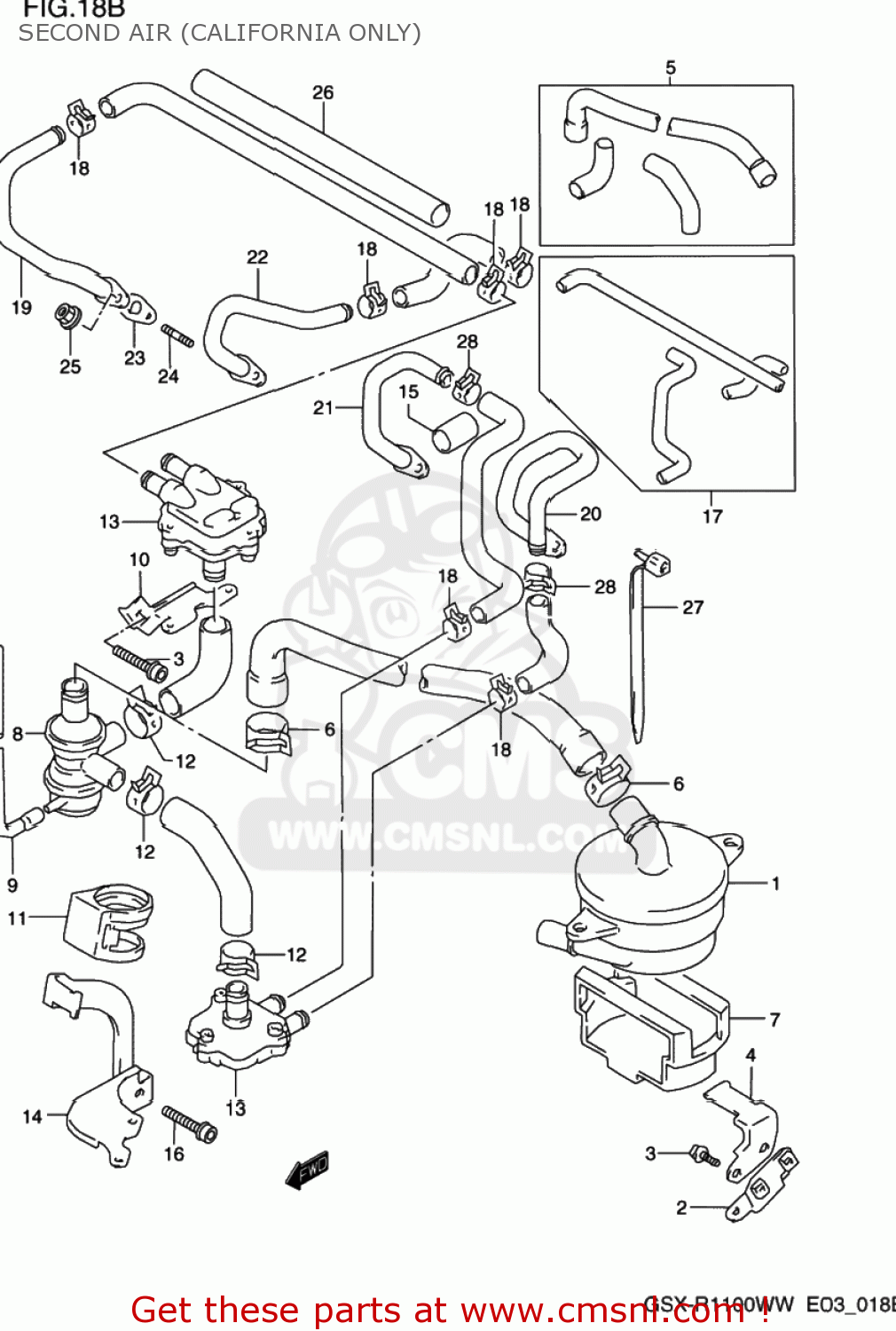

Second air (california only) diagram GSXR1100W 1996 (T) USA (E03)

SECOND AIR (CALIFORNIA ONLY) GSXR1100W 1996 (T) USA (E03)
SECOND AIR (CALIFORNIA ONLY) GSXR1100W 1996 (T) USA (E03)
SECOND AIR (CALIFORNIA ONLY) GSXR1100W 1996 (T) USA (E03)
prices are in EUR
ref
part #
description
quantity
1-1
1870048B03
ref: 1-1
18700-17C03
CLEANER ASSEMBLY,SECOND AIR
€ 38.00
1-2
1870017C03
ref: 1-2
CLEANER ASSEMBLY,SECOND AIR
€ 38.00
2
1876046E00
ref: 2
BRACKET,SECOND AIR CLEANER
€ 0.00
3-1
0712006125
ref: 3-1
07120-0612B
BOLT
€ 3.50
3-2
0712006123
ref: 3-2
07120-0612B
BOLT
€ 3.50
4
1875146E00
ref: 4
BRACKET,SECOND AIR CLEANER
€ 0.00
5-1
1842046810
ref: 5-1
HOSE SET,SECOND AIR NO.2
€ 0.00
5-2
1842046820
ref: 5-2
HOSE SET,SECOND AIR NO.2
€ 0.00
6-1
0940125402
ref: 6-1
CLIP
€ 3.00
6-2
0940125403
ref: 6-2
09401-25404
CLIP
€ 3.00
7
1877446E00
ref: 7
CUSHION,SECOND AIR CLEANER
€ 0.00
8
1851046E00
ref: 8
VALVE ASSEMBLY,SECOND AIR SWITCH
€ 0.00
9
0935945852600
ref: 9
HOSE(4.5X8.5X600)
0935945852600
€ 9.00
10
1873146E00
ref: 10
BRACKET,SECOND AIR REED VALVE
€ 0.00
11
1848701D00
ref: 11
CUSHION,2ND AIR VALVE
1848701D00
€ 10.00
12-1
0940121401
ref: 12-1
CLIP
€ 3.00
12-2
0940121403
ref: 12-2
CLIP
€ 3.00
12-3
0940120405
ref: 12-3
CLIP
0940120405
€ 3.00
13
1845048B00
ref: 13
VALVE ASSY,2ND AIR REED
1845048B00
€ 125.50
14-1
1872046E00
ref: 14-1
18720-46E01
BRACKET,SECOND AIR VALVE
€ 0.00
14-2
1872046E01
ref: 14-2
BRACKET,SECOND AIR VALVE
€ 0.00
15-1
4431246E00
ref: 15-1
PROTECTOR,REED VALVE
€ 3.50
15-2
4431246E01
ref: 15-2
PROTECTOR,REED VALVE H
€ 3.50
16-1
0712006165
ref: 16-1
07120-0616B
BOLT
€ 2.50
16-2
0712006163
ref: 16-2
07120-0616B
BOLT MAGNETO S
0712006163
€ 2.50
16-3
0712006123
ref: 16-3
07120-0612B
BOLT
€ 3.50
17
1841046810
ref: 17
HOSE SET,SECOND AIR NO.1
€ 0.00
18-1
0940113408
ref: 18-1
09401-13417
CLIP
€ 2.50
18-2
0940113413
ref: 18-2
09401-13417
CLIP
€ 2.50
18-3
0940113417
ref: 18-3
CLIP
0940113417
€ 2.50
19-1
1844046E00
ref: 19-1
PIPE COMP,SECOND AIR NO.4
1844046E00
€ 35.00
19-2
1844046E10
ref: 19-2
PIPE,2ND AIR NO.4
€ 0.00
20
1841046E00
ref: 20
PIPE,2ND AIR NO.1
1841046E00
€ 47.00
21
1842046E00
ref: 21
PIPE,2ND AIR NO.2
€ 0.00
22
1843046E00
ref: 22
PIPE COMP,SECOND AIR NO.3
€ 0.00
23
1844145C00
ref: 23
18441-45C01
GASKET,SECOND AIR PIPE (N (NAS)
1844145C00
€ 6.00
24-1
0142106165
ref: 24-1
01421-0616A
STUD 6X16
0142106165
€ 2.00
24-2
0142106163
ref: 24-2
01421-0616A
STUD BOLT
0142106163
€ 2.00
25-1
0831616064
ref: 25-1
08316-1006B
NUT 6MM
0831616064
€ 2.50
25-2
0831610063
ref: 25-2
08316-1006B
NUT
0831610063
€ 2.50
26-1
4431146E00
ref: 26-1
PROTECTOR,REED VALVE H
€ 9.50
26-2
4431146E01
ref: 26-2
PROTECTOR,REED VALVE H
€ 9.50
27
0940718402
ref: 27
CLAMP(L:165)
0940718402
€ 2.50
