prices are in EUR
ref
part #
description
quantity
1-1

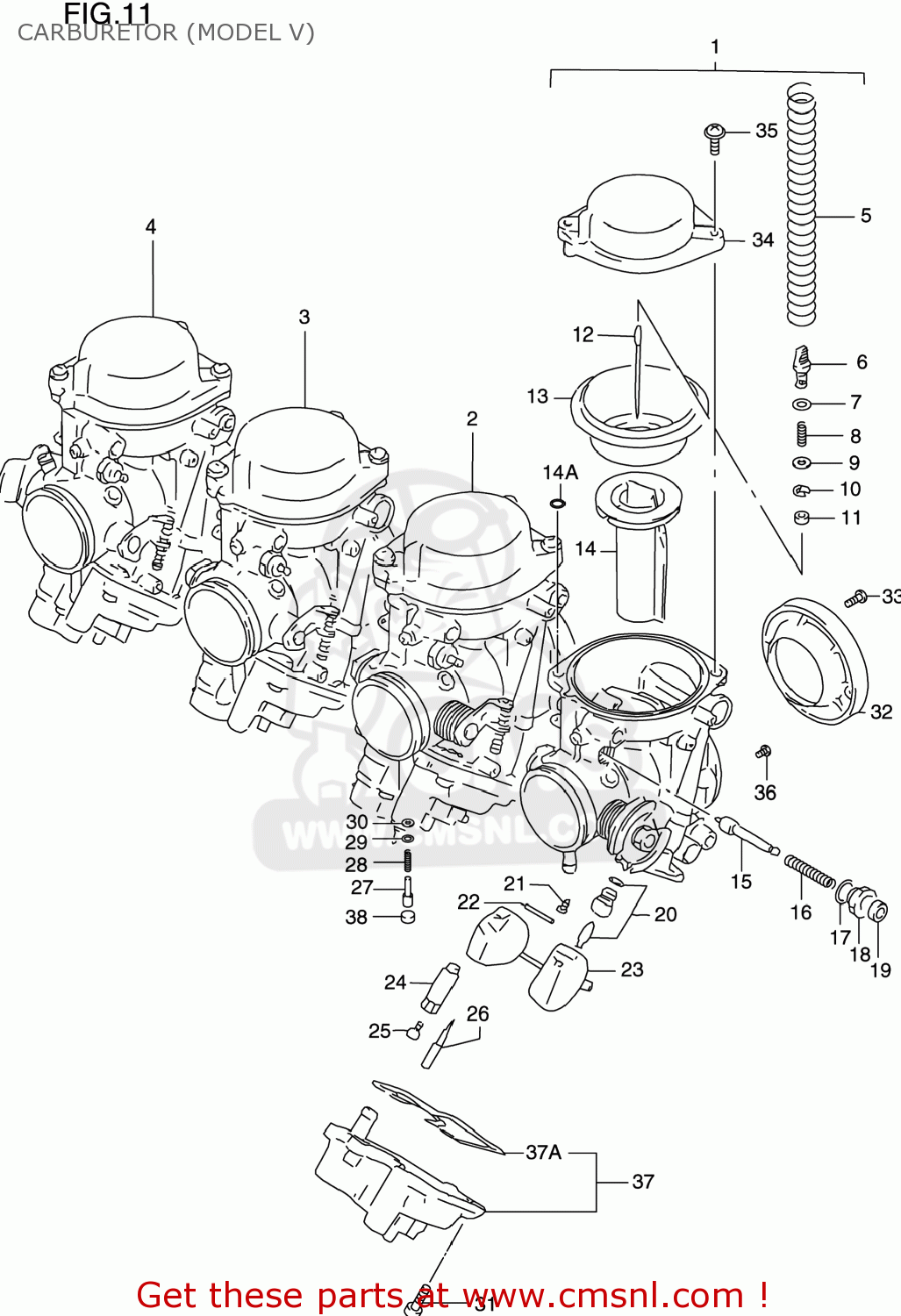

CARBURETOR ASSEMBLY,LEFT
1-2
CARBURETOR ASSEMBLY,LEFT
2-1
CARBURETOR ASSEMBLY,MIDDLE,LEFT
2-2
CARBURETOR ASSEMBLY,MIDDLE,LEFT
3-1
CARBURETOR ASSEMBLY,MIDDLE,RIGHT
3-2
CARBURETOR ASSEMBLY,MIDDLE,RIGHT
4-1
CARBURETOR ASSEMBLY,RIGHT
4-2
CARBURETOR ASSEMBLY,RIGHT
5
SPRING
6
HOLDER
7
O RING(D:1.9,ID:4.8)
8
SPRING
9
WASHER
10
E RING,MULTIPLE JET NOZZLE
12
NEEDLE,JET
13
DIAPHRAGM
14
VALVE,PISTON
14A
O RING
15
PLUNGER
16
SPRING
17
O RING
18
GUIDE SCREW,PLUNGER
19
CAP,STARTER VALVE
21
SCREW
22
PIN,FLOAT
23
FLOAT ASSY
24
HOLDER,JET
25-1
JET,MAIN(125)
25-2
JET,MAIN(122.5)
26
JET,PILOT(12.5)
27-1
ADJUSTER
27-2
ADJUSTER
28
SPRING,THROTTLE SCREW
29
WASHER
30
O RING,PILOT AIR SCREW
31
SCREW
32
FUNNEL
33
SCREW
34
COVER ASSY,DIAPHRAGM
35
SCREW
36-1
JET,MAIN(135)
36-2
JET,MAIN(130)
37A
O RING
38
PLUG
