FUEL TANK (MODEL V)
GSXR600 1997 (V) USA (E03)

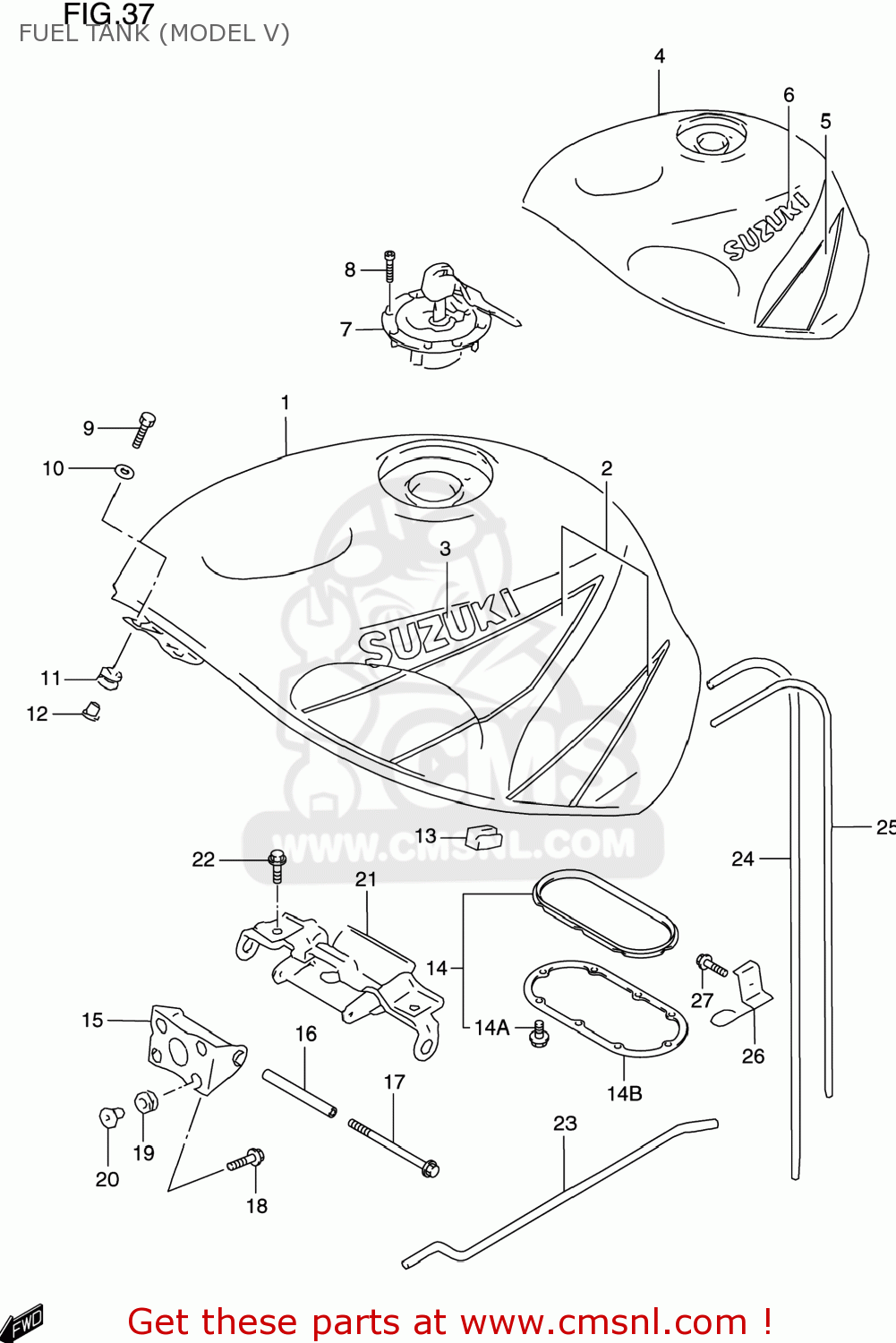

Fuel tank (model v) diagram GSXR600 1997 (V) USA (E03)
FUEL TANK (MODEL V) GSXR600 1997 (V) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
4410034E2033J
ref: 1-1
TANK ASSEMBLY,FUEL
€ 838.00
1-2
4410034E3033J
ref: 1-2
TANK ASSEMBLY,FUEL
€ 0.00
2
6811034E10G9D
ref: 2
TAPE SET,FUEL TANK
€ 67.00
3
6811112C0013L
ref: 3
68111-12C30-13L
EMBLEM,FUEL TANK
€ 18.00
4-1
4410034E00L99
ref: 4-1
TANK ASSEMBLY,FUEL
€ 779.50
4-2
4410034E10L99
ref: 4-2
TANK ASSEMBLY,FUEL
€ 0.00
5
6811034E00M18
ref: 5
TAPE SET,FUEL TANK
€ 49.00
6
6811112C000JW
ref: 6
68111-12C30-0JW
EMBLEM,FUEL TANK
€ 21.00
7-1
4420033820
ref: 7-1
CAP SET,FUEL TANK
€ 217.50
7-2
4420033830
ref: 7-2
CAP SET,FUEL TANK
€ 0.00
8
0910605017
ref: 8
BOLT(5X20)
€ 3.00
9
0913906029
ref: 9
SCREW(6X25)
€ 5.00
10
0916006006
ref: 10
09160-06084
WASHER
€ 2.00
11
0932009009
ref: 11
CUSHION
€ 5.00
12
0916906062
ref: 12
WASHER
€ 3.00
13
4454133E00
ref: 13
CUSHION,FUEL TANK SIDE
€ 20.50
14
4459002830
ref: 14
44590-02831
PACKING SET,FUEL PUMP (NAS)
€ 161.50
14A
1521102F00
ref: 14A
09103-05017
BOLT,FUEL PUMP
€ 4.00
14B
4459702F00
ref: 14B
PLATE,FUEL PUMP GASKET
€ 23.50
15
4453033E00
ref: 15
44530-33E01
BRACKET COMP,FUEL TANK
€ 23.00
16
4456133E10
ref: 16
SPACER,FUEL TANK RR
€ 19.00
17
0155008953
ref: 17
01550-0895A
BOLT
€ 3.50
18
0911606111
ref: 18
09116-06152
BOLT 6X20,WITH PLAIN WASHER
€ 2.00
19
0932008001
ref: 19
CUSHION
€ 3.50
20
0916906062
ref: 20
WASHER
€ 3.00
21
4455033E00
ref: 21
BRACKET,FUEL TANK NO.2
€ 36.50
22
0155008163
ref: 22
01550-0816A
BOLT
€ 3.00
23
4457433E00
ref: 23
44574-33E01
STAY,FUEL TANK
€ 13.50
24
0935250823600
ref: 24
44420-44AR0
HOSE(5X8.2X600)
€ 13.00
25
0935270103600
ref: 25
HOSE(7X10.2X600)
€ 8.00
26
4448033E00
ref: 26
44480-33E0V
GUIDE COMP,DRAIN HOSE
€ 6.00
27
0155006123
ref: 27
01550-0612A
BOLT
€ 2.50
