WATER PUMP
GSXR600 1997 (V) USA (E03)

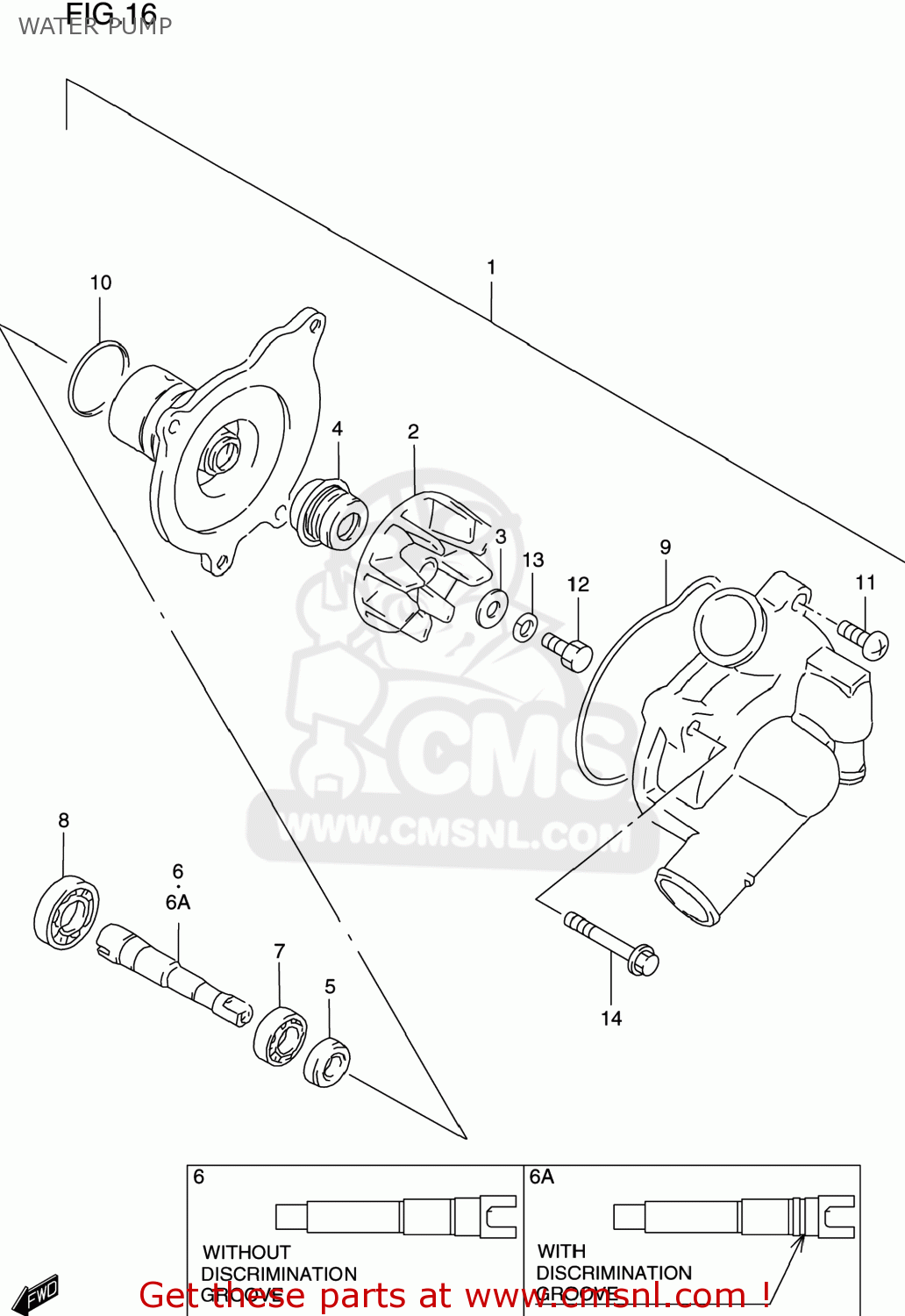

Water pump diagram GSXR600 1997 (V) USA (E03)
WATER PUMP GSXR600 1997 (V) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1740033E00
ref: 1
PUMP ASSY,WATER
€ 383.50
2
1749117E01
ref: 2
IMPELLER
€ 15.00
3
0916806025
ref: 3
GASKET(6X15X2.2) (NAS)
€ 3.00
4-1
1747046A00
ref: 4-1
17470-02F00
SEAL,MECHANICAL
€ 21.50
4-2
1747046A01
ref: 4-2
17470-02F00
SEAL,MECHANICAL
€ 21.50
5
0928310004
ref: 5
SEAL,OIL(10X21X5)
€ 4.50
6
1751133E00
ref: 6
17511-33E01
SHAFT,WATER PUMP
€ 112.50
6A
1751133E01
ref: 6A
SHAFT,WATER PUMP
€ 112.50
7
0926210014
ref: 7
BEARING(10X26X8)
€ 13.00
8
0926212001
ref: 8
BEARING(12X28X8)
€ 15.00
9
1741833400
ref: 9
O RING
€ 4.00
10
1743533400
ref: 10
O RING,WATER PUMP HOLDER
€ 13.00
11
0211206163
ref: 11
02112-0616A
SCREW 6X16
€ 2.00
12
0910006099
ref: 12
BOLT(6X13)
€ 2.00
13
0916406006
ref: 13
WASHER
€ 2.50
14
0154706353
ref: 14
01547-0635B
BOLT
€ 3.00
