FRAME COVER (MODEL W)
GSXR600 1997 (V) USA (E03)

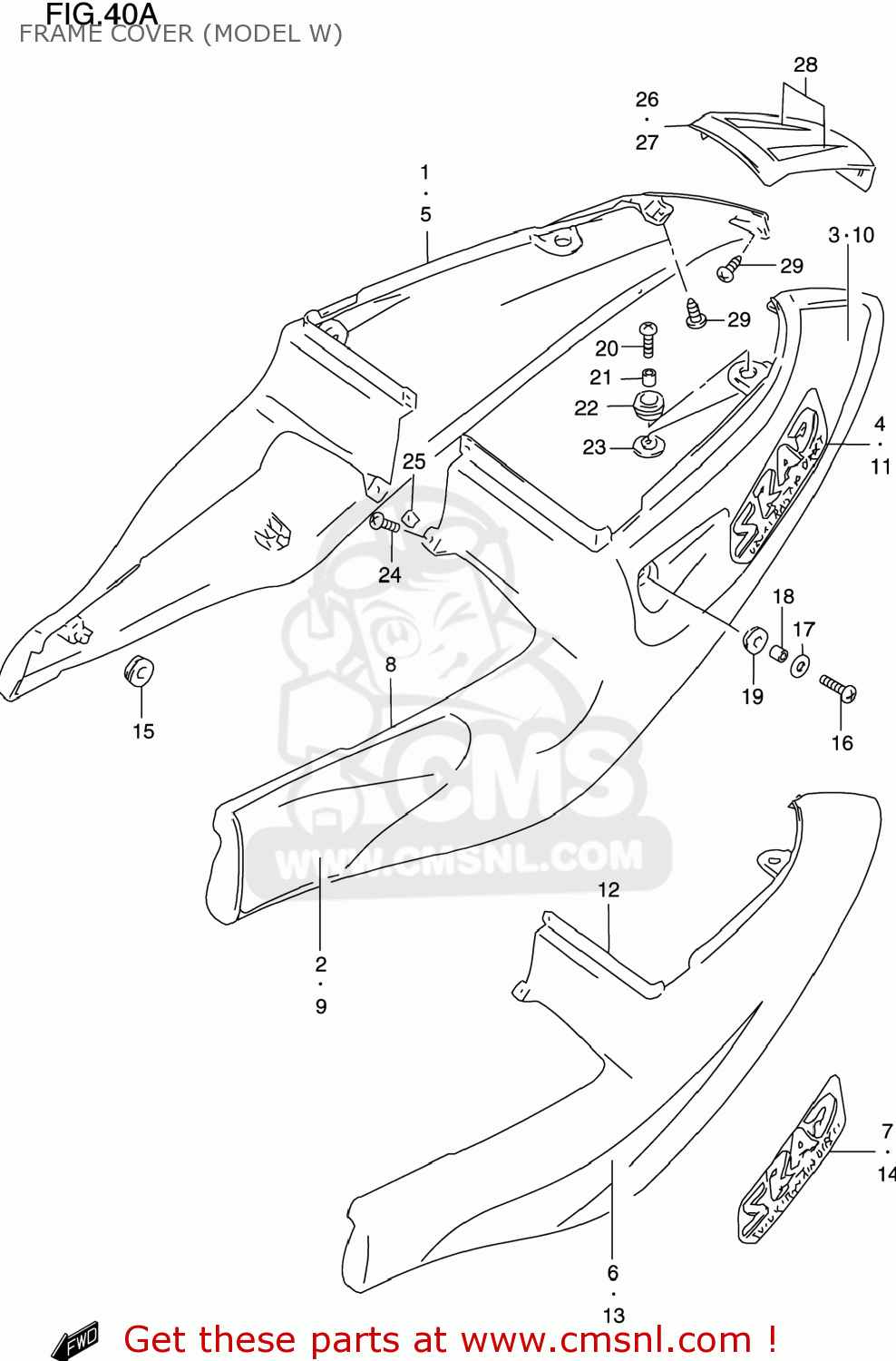

Frame cover (model w) diagram GSXR600 1997 (V) USA (E03)
FRAME COVER (MODEL W) GSXR600 1997 (V) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
4711034E301PX
ref: 1
COVER,FRAME,R(BLACK)
€ 224.00
2
6813534E30Y0W
ref: 2
TAPE,FRAME COVER,RIGHT NO
€ 23.00
3
6813534E40Y0W
ref: 3
TAPE,FRAME COVER,R
€ 27.50
4
6813133E30K4F
ref: 4
EMBLEM,FRAME COVER
€ 13.00
5
4711034E200JW
ref: 5
COVER,FRAME,R(WHITE)
€ 209.50
6
6813534E20Y3P
ref: 6
TAPE,FRAME COVER,RIGHT
€ 25.50
7
6813133E30F3S
ref: 7
EMBLEM,FRAME COVER
€ 20.00
8
4721034E301PX
ref: 8
COVER,FRAME,L(BLACK)
€ 224.00
9
6814534E30Y0W
ref: 9
TAPE,FRAME COVER NO.1,L
€ 19.00
10
6814534E40Y0W
ref: 10
TAPE,FRAME COVER,L
€ 36.00
11
6813133E30K4F
ref: 11
EMBLEM,FRAME COVER
€ 13.00
12
4721034E200JW
ref: 12
COVER,FRAME,L(WHITE)
€ 209.50
13
6814534E20Y3P
ref: 13
TAPE,FRAME COVER,LEFT
€ 26.00
14
6813133E30F3S
ref: 14
EMBLEM,FRAME COVER
€ 20.00
15
0932008018
ref: 15
CUSHION
€ 4.00
16
0913906071
ref: 16
SCREW(6X20)
€ 5.00
17
0916006054
ref: 17
WASHER(6.5X22X1.6)
€ 2.00
18
0918006258
ref: 18
SPACER(6.5X9X6.7)
€ 3.00
19
9443326B00
ref: 19
CUSHION
€ 4.00
20
0913606082
ref: 20
SCREW(6X25)
€ 3.00
21
0918006286
ref: 21
SPACER(6.5X10X9.4)
€ 2.50
22
4514904A00
ref: 22
CUSHION,TAIL COVER UPR
€ 2.00
23
4532617C00
ref: 23
CUSHION,FRAME COVER LWR
€ 7.00
24
0324115103
ref: 24
03241-1510B
SCREW
€ 2.00
25
0914805038
ref: 25
NUT
€ 2.50
26
4731133E00019
ref: 26
COVER,FRAME CTR
€ 35.00
27
4731033E200JW
ref: 27
COVER,FRAME CTR
€ 16.00
28
6816533E101LF
ref: 28
TAPE SET,FRAME COVER CTR
€ 15.50
29
0354115163
ref: 29
03541-1516A
SCREW
€ 2.00
