CLUTCH (MODEL X/Y)
GSXR600 1999 (X) USA (E03)

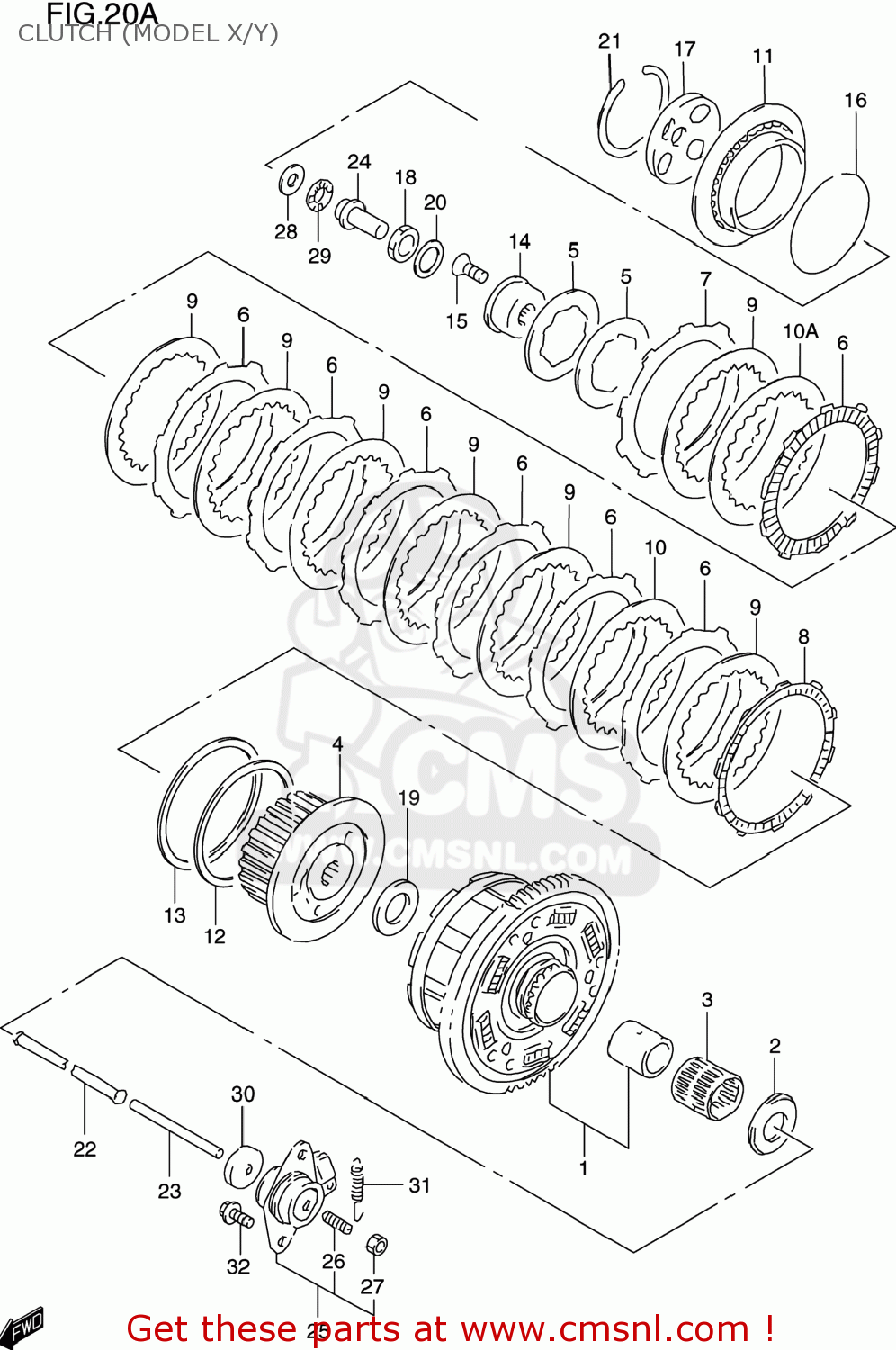

Clutch (model x/y) diagram GSXR600 1999 (X) USA (E03)
CLUTCH (MODEL X/Y) GSXR600 1999 (X) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
2120031890
ref: 1
GEAR ASSY,PRI DRIVEN
€ 377.00
2
0916025037
ref: 2
WASHER(25X54X2.5)
€ 9.00
3
0926335017
ref: 3
BEARING(35X40X35.8)
€ 36.50
4
2141031E20
ref: 4
21410-31E50
HUB,CLUTCH SLEEVE
€ 140.50
5
2141331E40
ref: 5
SPRING,CLUTCH
€ 15.50
6
2144131E50
ref: 6
PLATE,CLUTCH DRIVE NO.1 (NAS)
€ 21.00
7
2144131E60
ref: 7
PLATE,CLUTCH DRIVE (NAS)
€ 13.50
8
2144231E20
ref: 8
21442-31E21
PLATE,CLUTCH DRIVE NO (NAS)
€ 19.00
9
2145131E20
ref: 9
PLATE,CLUTCH DRIVEN NO.1 (NAS)
€ 9.00
10
2145131E30
ref: 10
PLATE,CLUTCH DRIVEN NO.2 (NAS)
€ 9.00
10A
2145131E10
ref: 10A
PLATE,CLUTCH DRIVEN NO.2
€ 7.50
11-1
2146231E50
ref: 11-1
21462-31E20
DISC,CLUTCH PRESSURE
€ 58.00
11-2
2146231E20
ref: 11-2
DISC,CLUTCH PRESSURE
€ 58.00
12
2147131E20
ref: 12
SEAT,CLUTCH PLATE WAVE WASHER
€ 12.00
13
2147231E01
ref: 13
WASHER,CLUTCH PLATE WAVE
€ 15.00
14
2161131E20
ref: 14
HOLDER,CLUTCH SPRING
€ 39.00
15
2161431E20
ref: 15
SCREW,CLUTCH SPRING HOLDER
€ 3.50
16
2162331E20
ref: 16
SEAT,CLUTCH SPRING
€ 5.50
17
2146340C01
ref: 17
LIFTER,CLUTCH PRESSURE DISC
€ 33.00
18
0915924010
ref: 18
NUT
€ 11.00
19
0821125505
ref: 19
WASHER
€ 6.00
20
0916424006
ref: 20
WASHER
€ 4.00
21-1
0938184002
ref: 21-1
09381-84003
CIRCLIP
€ 10.50
21-2
0938184003
ref: 21-2
CIRCLIP
€ 10.50
22
2311027A00
ref: 22
ROD,CLUTCH
€ 17.00
23
2311134C00
ref: 23
ROD,CLUTCH PUSH,L
€ 15.50
24
2312131E10
ref: 24
23121-31E00
PIECE,CLUTCH PUSH
€ 18.50
25
2320020C00
ref: 25
SCREW ASSY,CLUTCH RELEASE
€ 74.50
26
0913406010
ref: 26
SCREW(6X25)
€ 3.00
27
0831000067
ref: 27
NUT
€ 2.50
28
0916015045
ref: 28
WASHER(15.5X28X1)
€ 4.00
29
0926315003
ref: 29
BEARING(15X28X2)
€ 7.00
30
0928506015
ref: 30
SEAL,OIL(6X34X5.5)
€ 8.50
31
0944309044
ref: 31
SPRING
€ 3.50
32
0155006163
ref: 32
01550-0616A
BOLT
€ 2.50
