TAIL LAMP
GSXR600 1999 (X) USA (E03)

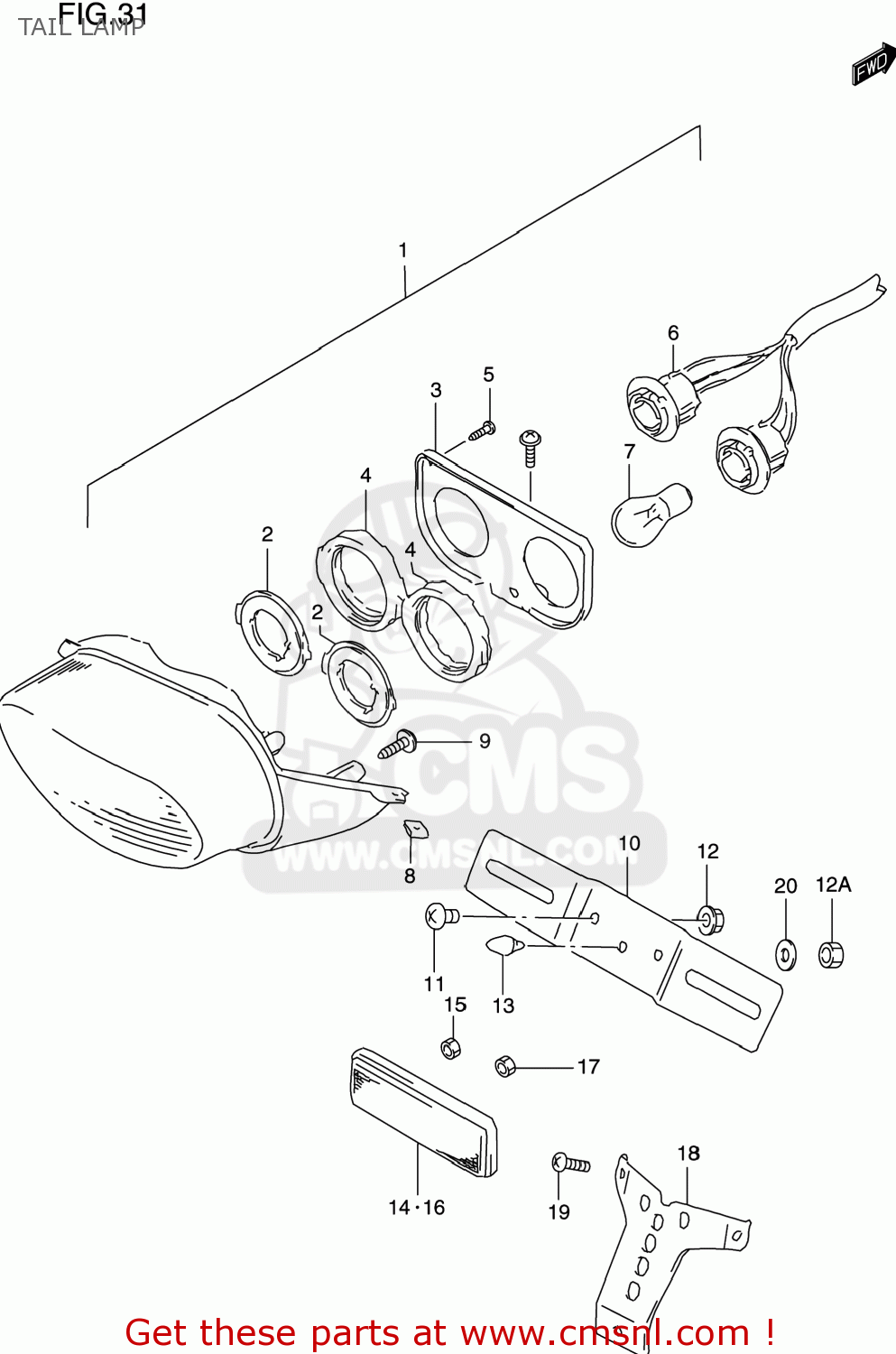

Tail lamp diagram GSXR600 1999 (X) USA (E03)
TAIL LAMP GSXR600 1999 (X) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3571033E30
ref: 1
LAMP ASSY,RR COMBINATION
€ 195.00
2
3571648B21
ref: 2
PLATE NO.1
€ 25.00
3
3573633E00
ref: 3
PLATE NO.2
€ 9.50
4
3576548B21
ref: 4
CUSHION
€ 10.50
5
0321104123
ref: 5
03211-0412A
SCREW
€ 1.50
6
3571833E00
ref: 6
SOCKET & CORD
€ 61.00
7
0947112083
ref: 7
09471-12128
BULB(12V21/5W)
€ 6.00
8
0914805020
ref: 8
NUT
€ 2.00
9
0354115163
ref: 9
03541-1516A
SCREW
€ 2.00
10
3592748B30
ref: 10
BRACKET,LICENSE PLATE
€ 15.00
11
0214206123
ref: 11
02142-0612A
SCREW 6X12
€ 2.00
12
0831610063
ref: 12
08316-1006B
NUT
€ 2.50
12A
0831000063
ref: 12A
08310-0006A
NUT 6MM
€ 2.00
13
0932106023
ref: 13
CUSHION
€ 2.00
14
3597024D60
ref: 14
REFLECTOR ASSY,RR
€ 19.50
15
0831000053
ref: 15
08310-0005A
NUT
€ 2.50
16
3597024D60
ref: 16
REFLECTOR ASSY,RR
€ 19.50
17
0831000053
ref: 17
08310-0005A
NUT
€ 2.50
18
3597448E00
ref: 18
BRACKET,RR REFLECTOR
€ 8.00
19
0912506092
ref: 19
SCREW(6X12)
€ 3.00
20
0916006077
ref: 20
WASHER(6.5X20X1.2)
€ 2.00
