STARTING MOTOR (MODEL Y)

GSXR600 1999 (X) USA (E03)

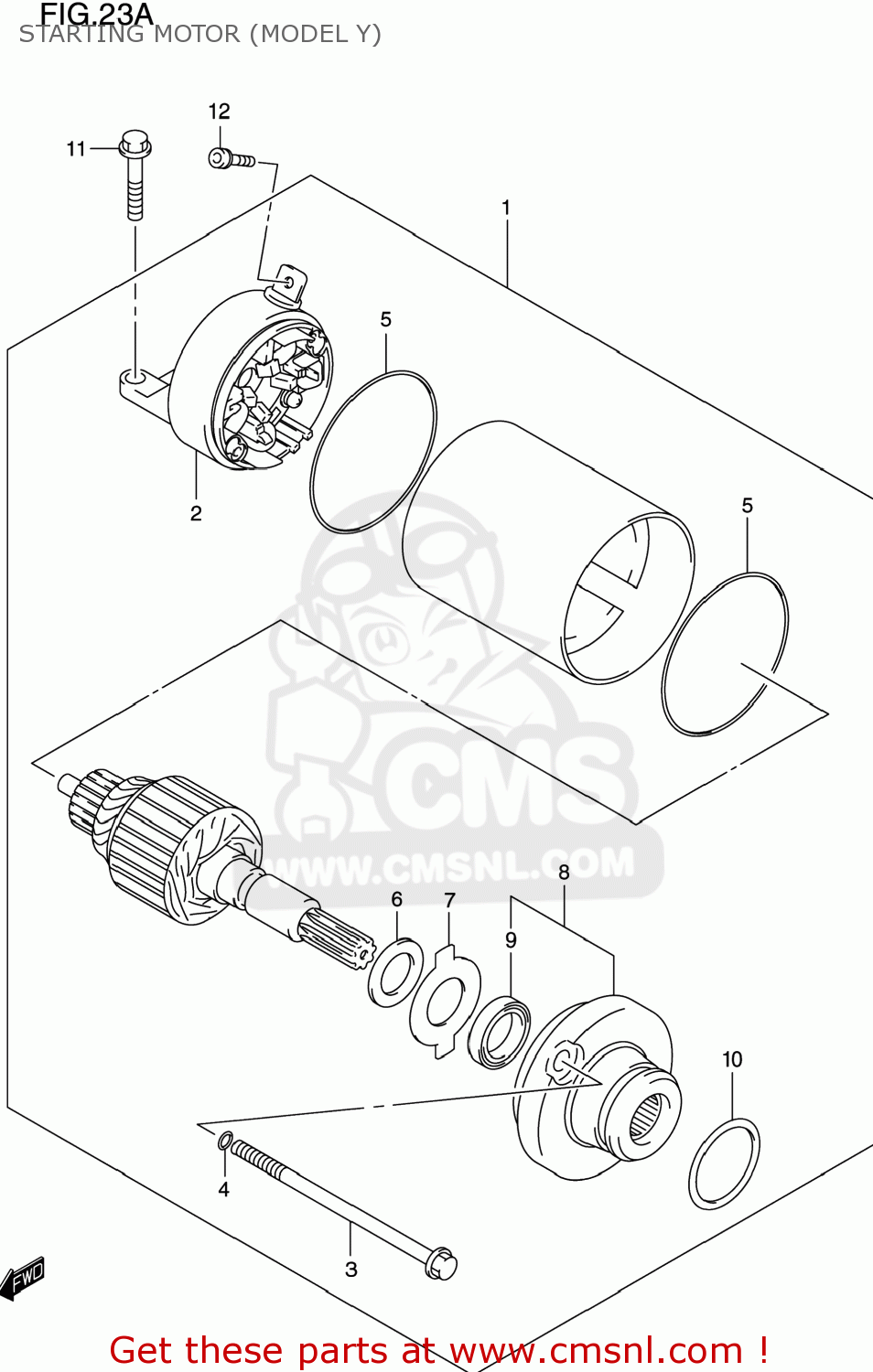

Starting motor (model y) diagram GSXR600 1999 (X) USA (E03)

STARTING MOTOR (MODEL Y) GSXR600 1999 (X) USA (E03)

STARTING MOTOR (MODEL Y) GSXR600 1999 (X) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

3110034E01
ref: 1

MOTOR ASSY,STARTING

€ 623.50

2

3117526F00
ref: 2

FRAME ASSY,COMMUTATOR END

€ 121.00

3

3128134E00
ref: 3

BOLT

€ 8.00

4

3115608F00
ref: 4

O RING

€ 3.00

5

3126432C10
ref: 5

O RING

€ 9.00

6

3136138300
ref: 6

SHIM

€ 1.50

7

3136132C10
ref: 7

PLATE,LOCK

€ 2.50

8

3115008F00
ref: 8

BRACKET

€ 87.50

9

3115349210
ref: 9

SEAL,OIL

€ 15.00

10

0928024003
ref: 10

O RING(D:3,ID:24.5)

€ 2.00

11

0912806057
ref: 11

BOLT(6X20)

€ 2.00

12

0913705004
ref: 12

SCREW(5X8)

€ 2.00
