FRONT DAMPER (MODEL V)
GSXR600 1999 (X) USA (E03)

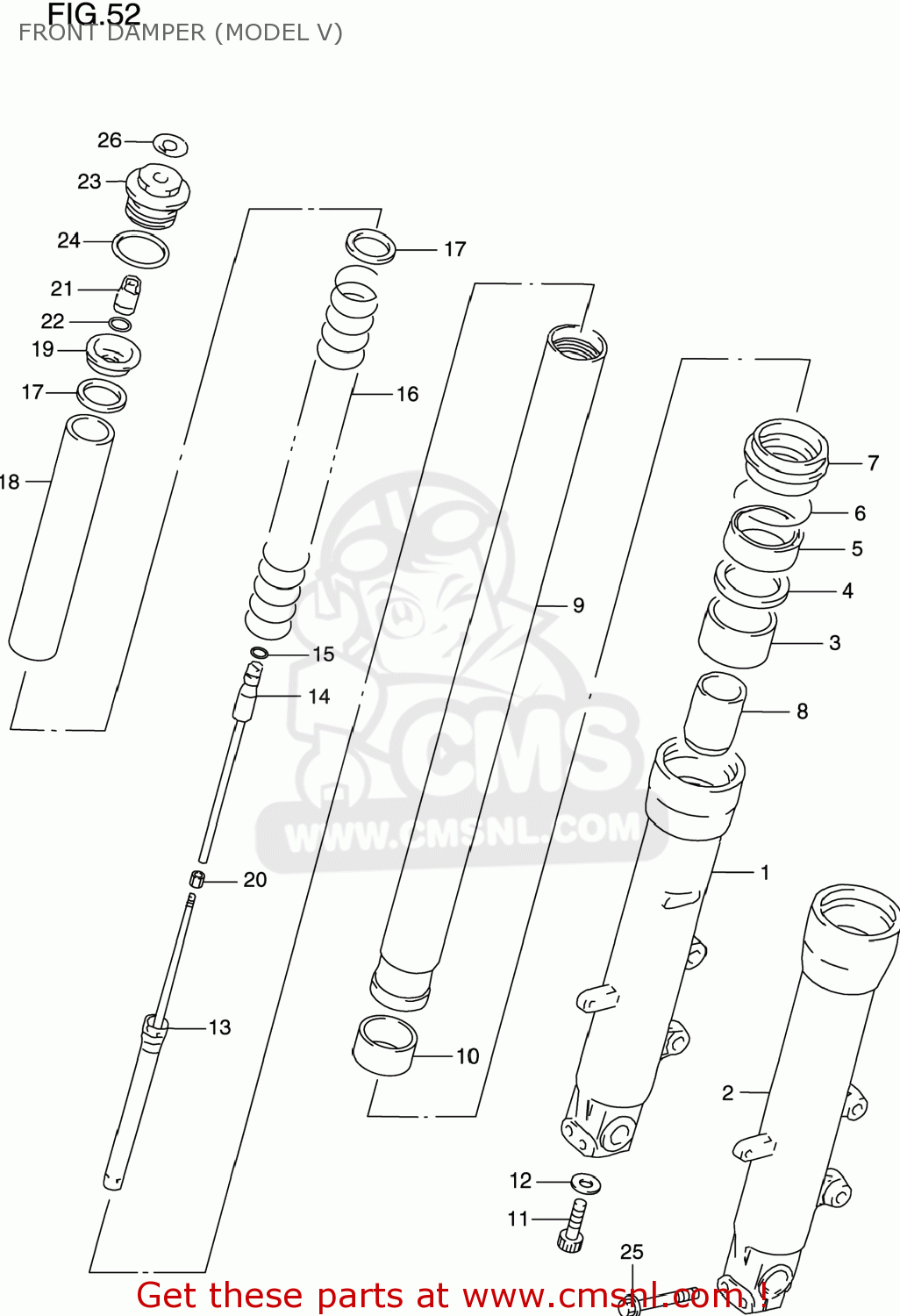

Front damper (model v) diagram GSXR600 1999 (X) USA (E03)
FRONT DAMPER (MODEL V) GSXR600 1999 (X) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
5110334E10
ref:
DAMPER ASSY,FR FORK,R
€ 0.00
5110434E10
ref:
DAMPER ASSEMBLY,FRONT FORK
€ 0.00
1
5113034E00
ref: 1
TUBE,OUTER,R
€ 483.50
2
5114034E00
ref: 2
TUBE,OUTER,LEFT
€ 450.50
3
5115234E00
ref: 3
BUSH,GUIDE
€ 22.00
4
5115827C40
ref: 4
SPACER,SEAL
€ 6.00
5
5115334E00
ref: 5
SEAL,OIL
€ 16.50
6
5115627C40
ref: 6
RING,OIL SEAL STOPPER
€ 3.50
7
5117328E40
ref: 7
SEAL,DUST
€ 22.00
8
5119534E00
ref: 8
PIECE,OIL LOCK
€ 19.50
9
5111034E00
ref: 9
TUBE,INNER
€ 461.00
10
5112134E00
ref: 10
BUSH,SLIDE
€ 24.00
11
5114748130
ref: 11
BOLT(8X27)
€ 3.50
12
5114836011
ref: 12
GASKET (NAS)
€ 4.00
13
5211034E00
ref: 13
ROD,FR DAMPER
€ 381.50
14
5211134E00
ref: 14
ROD,ADJUST
€ 24.50
15
0928003002
ref: 15
O RING(D:1.9,ID:3.8)
€ 2.00
16
5117134E00
ref: 16
SPRING,FRONT
€ 72.00
17
5117229EA0
ref: 17
JOINT,SPRING
€ 7.00
18
5117634E00
ref: 18
COLLAR,SPRING
€ 10.50
19
5117217C00
ref: 19
SEAT,SPRING UPR
€ 11.50
20
5182727E00
ref: 20
NUT
€ 6.50
21
5118534E00
ref: 21
ADJUSTER,SPRING
€ 49.00
22
0928014003
ref: 22
09280-14011
O-RING (D:2.4 ID:13.8)
€ 3.50
23
5118934E00
ref: 23
BOLT,FORK
€ 62.00
24
5111729EA0
ref: 24
O RING
€ 5.50
25
0155008457
ref: 25
BOLT
€ 4.00
26
5114934E00
ref: 26
LABEL
€ 4.50
