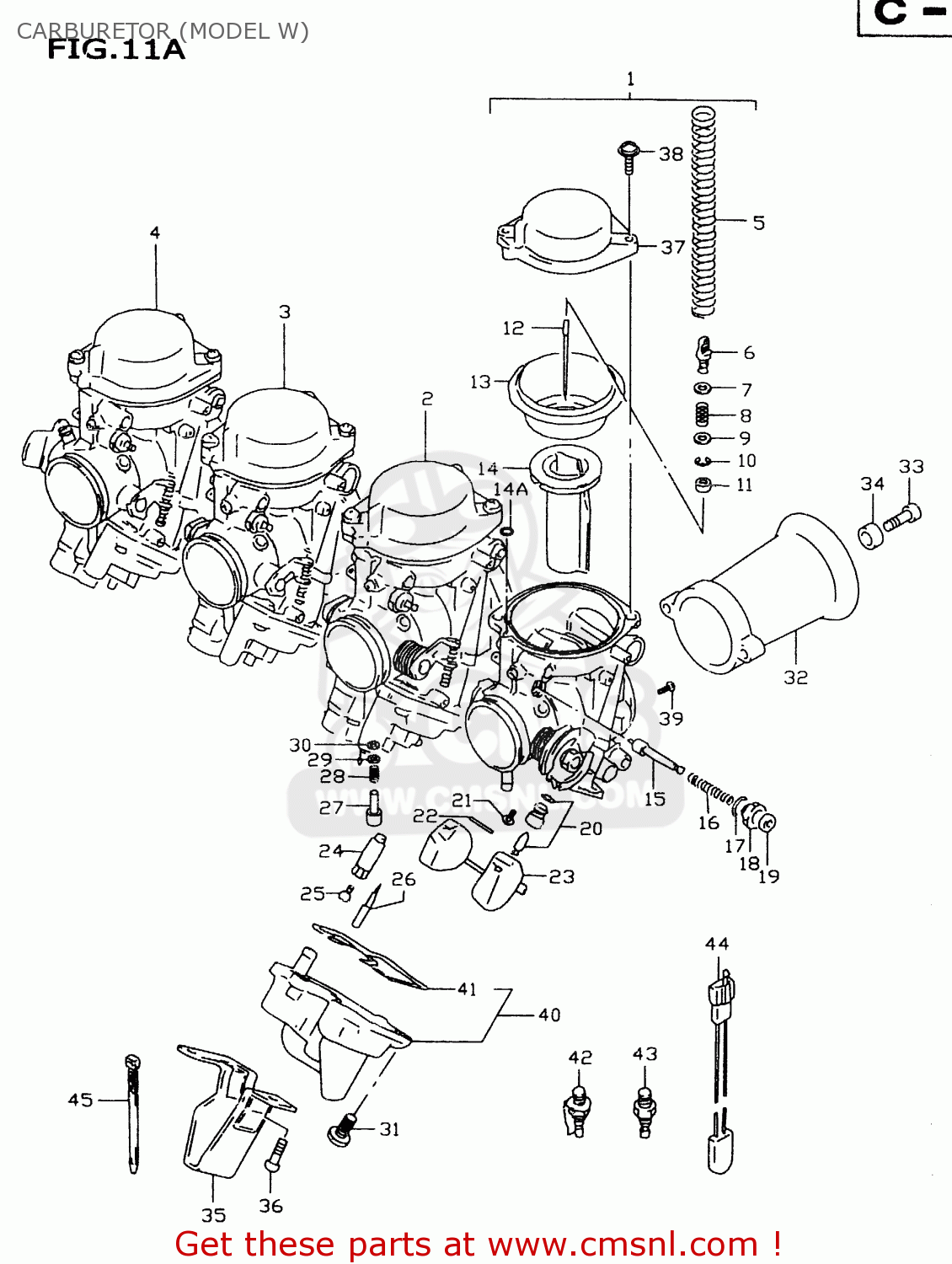

CARBURETOR (MODEL W)

ref

part #

description

quantity

1-1

1320134E60
ref: 1-1

CARBURETOR ASSY,L

€ 712.50

1-2

1320134E70
ref: 1-2
E18, E39

CARBURETOR ASSEMBLY,LEFT

€ 0.00

1-3

1320134E80
ref: 1-3
E4, E22

CARBURETOR ASSY,L

€ 0.00

1-4

1320134EA0
ref: 1-4
E24

CARBURETOR ASSY, LH

€ 0.00

2-1

1320234E60
ref: 2-1

CARBURETOR ASSY,ML

€ 712.50

2-2

1320234E70
ref: 2-2
E18, E39

CARBURETOR ASSEMBLY,MIDDLE,LEFT

€ 0.00

2-3

1320234E80
ref: 2-3
E4, E22

CARBURETOR ASSY, ML

€ 0.00

2-4

1320234EA0
ref: 2-4
E24

CARBURETOR ASSY, ML

€ 0.00

3-1

1320334E60
ref: 3-1

CARBURETOR ASSY,MR

€ 712.50

3-2

1320334E70
ref: 3-2
E18, E39

CARBURETOR ASSY,MR

€ 0.00

3-3

1320334E80
ref: 3-3
E4, E22

CARBURETOR ASSY,MR

€ 0.00

3-4

1320334EA0
ref: 3-4
E24

CARBURETOR ASSY, MR

€ 0.00

4-1

1320434E60
ref: 4-1

CARBURETOR ASSY,R

€ 712.50

4-2

1320434E70
ref: 4-2
E18, E39

CARBURETOR ASSY,R

€ 0.00

4-3

1320434E80
ref: 4-3
E4, E22

CARBURETOR ASSY,R

€ 0.00

4-4

1320434EA0
ref: 4-4
E24

CARBURETOR ASSY, RH

€ 0.00

5

1357334E00
ref: 5

SPRING

€ 7.50

6

1341833E00
ref: 6

HOLDER

€ 4.50

7

0928005004
ref: 7

O RING(D:1.9,ID:4.8)

€ 2.00

8

1348133E00
ref: 8

SPRING

€ 3.00

9

1338244030
ref: 9

WASHER

€ 3.50

10

1339417E60
ref: 10

E RING,MULTIPLE JET NOZZLE

€ 1.50

11

1338733E00
ref: 11

RING

€ 5.00

12-1

1338334E60
ref: 12-1

NEEDLE,JET

€ 15.00

12-2

1338334E80
ref: 12-2
E4, E22

NEEDLE,JET

€ 12.50

13

1350717C01
ref: 13

DIAPHRAGM

€ 24.50

14

1350134E00
ref: 14

VALVE,PISTON

€ 87.50

14A

1329533010
ref: 14A

O RING

€ 4.50

15

1341105300
ref: 15

PLUNGER

€ 23.50

16

1341726D00
ref: 16

SPRING

€ 5.50

17

1327847090
ref: 17

O RING

€ 2.00

18

1341844080
ref: 18

GUIDE SCREW,PLUNGER

€ 8.00

19

1368231210
ref: 19

CAP,STARTER VALVE

€ 5.00

20

1337033E80
ref: 20

VALVE ASSY,NEEDLE(NI)

€ 61.00

21

1360205A10
ref: 21

SCREW

€ 4.00

22

1325492910
ref: 22

PIN,FLOAT

€ 3.00

23

1325033E00
ref: 23

FLOAT ASSY

€ 41.00

24

1338533E00
ref: 24

HOLDER,JET

€ 25.00

25-1

0949127008
ref: 25-1
LH, RH

JET,MAIN(135)

€ 11.50

25-2

0949126013
ref: 25-2
ML, MR

JET,MAIN (132.5)

€ 18.50

26

0949212008
ref: 26

JET,PILOT(12.5)

€ 14.00

27-1

1327933E00
ref: 27-1
LH, RH

ADJUSTER

€ 9.50

27-2

1327933E00
ref: 27-2
ML, MR

ADJUSTER

€ 9.50

27-3

1327933E00
ref: 27-3
E4, E22 LH, RH

ADJUSTER

€ 9.50

27-4

1327933E00
ref: 27-4
E4, E22 ML, MR

ADJUSTER

€ 9.50

28

1326848700
ref: 28

SPRING,THROTTLE SCREW

€ 3.50

29

1329129900
ref: 29

WASHER

€ 2.00

30

1329529900
ref: 30

O RING,PILOT AIR SCREW

€ 4.00

31

0211205127
ref: 31

SCREW

€ 2.50

32

1366734E60
ref: 32

FUNNEL

€ 32.50

33

1360218E20
ref: 33

SCREW

€ 4.00

34

1366334E60
ref: 34

RING

€ 3.50

35

1345434E60
ref: 35

BRACKET

€ 15.00

36

0211204107
ref: 36

SCREW

€ 2.00

37-1

1350234E00
ref: 37-1

COVER ASSY,DIAPHRAGM

€ 43.50

37-2

1350234E20
ref: 37-2
E4, E22

COVER ASSY,DIAPHRAGM

€ 30.50

38

1324733E00
ref: 38

SCREW

€ 3.00

39

0949127008
ref: 39

JET,MAIN(135)

€ 11.50

40-1

1324534E00
ref: 40-1

BODY ASSY,FLOAT,L

€ 57.00

40-2

1324534E00
ref: 40-2

BODY ASSY,FLOAT,L

€ 57.00

40-3

1324534E10
ref: 40-3

BODY ASSY,FLOAT,R

€ 57.00

40-4

1324534E10
ref: 40-4

BODY ASSY,FLOAT,R

€ 57.00

41

1325833E00
ref: 41

O RING

€ 9.50

42

1365025E01
ref: 42
E2

HEATER ASSY,CARBURETOR(15W)

€ 35.00

43

1365125E01
ref: 43
E2 -> 13650-25E01

HEATER, CARB.

€ 35.00

44

1365525E00
ref: 44
E2

THERMO SWITCH,CARB HEATER

€ 36.00

45

0940714403
ref: 45
E2 <- 09407-11401

CLAMP(L:125)

€ 2.50

all assemblies
