RADIATOR

GSXR600 1999 (X)

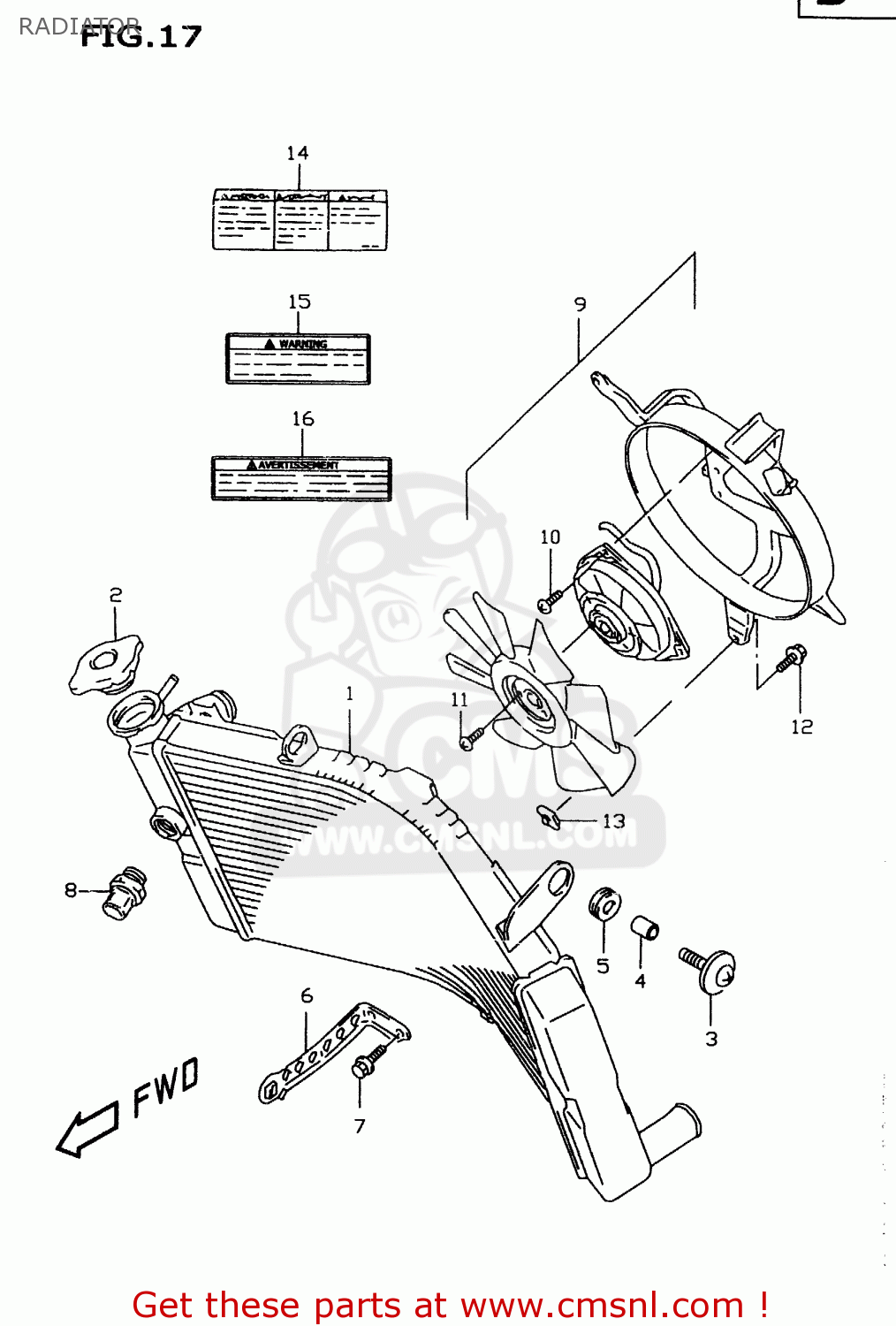

Radiator diagram GSXR600 1999 (X)

RADIATOR GSXR600 1999 (X)

RADIATOR GSXR600 1999 (X)

prices are in EUR

ref

part #

description

quantity

1

1771033E00
ref: 1

RADIATOR ASSY,WATER

€ 826.00

2

1773012C01
ref: 2

CAP,RADIATOR

€ 40.00

3

0911606143
ref: 3

BOLT 6X20

€ 2.00

4

0918006290
ref: 4

SPACER(6.5X10X12)

€ 2.50

5

0932010042
ref: 5

CUSHION

€ 4.00

6

1775033E00
ref: 6

BRACKET,RADIATOR LWR

€ 7.50

7

0155006123
ref: 7

BOLT

€ 2.50

8

1768033E00
ref: 8

SWITCH,RADIATOR FAN

€ 49.50

9

1780033E00
ref: 9

FAN ASSEMBLY,RADIATOR

€ 491.50

10

0214205083
ref: 10

SCREW

€ 2.00

11

0211204063
ref: 11

SCREW 4X6

€ 2.00

12

0155006103
ref: 12

BOLT

€ 2.50

13

1776239A00
ref: 13

NUT,RADIATOR COVER

€ 3.50

14

1799160B02
ref: 14
MODEL V

LABEL, COOLING FAN

€ 0.00

15

1799102F00
ref: 15
MODEL W

LABEL (COOLING FAN)

€ 4.00

16

1799102F10
ref: 16
MODEL W E4, E18, E34

LABEL,COOLING FAN

€ 6.50
