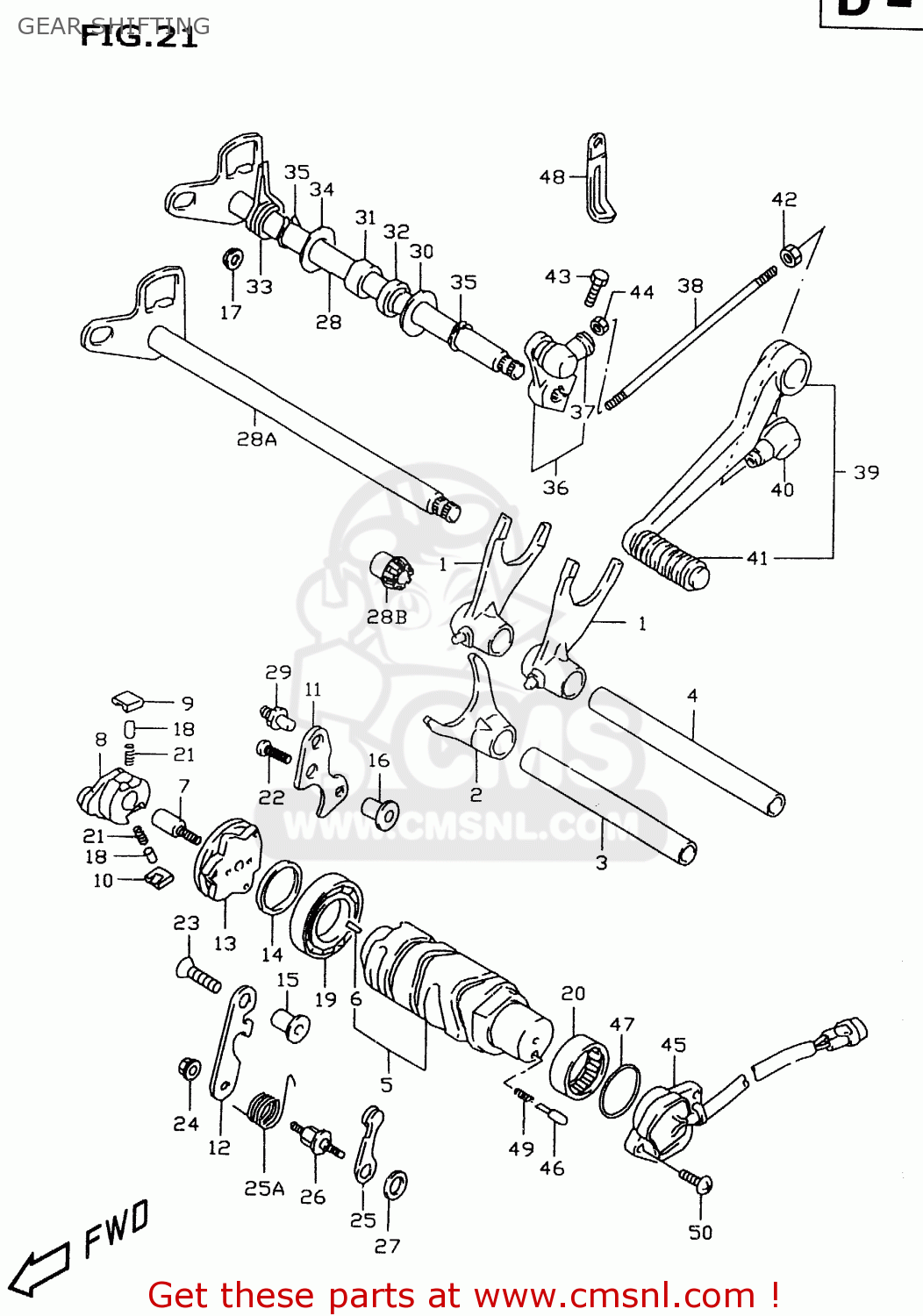

GEAR SHIFTING

ref

part #

description

quantity

1

2521117E00
ref: 1

FORK,GEAR SHIFT NO.1

€ 64.50

2

2523117E00
ref: 2

FORK,GEAR SHIFT NO.3

€ 108.50

3

2541126D01
ref: 3

SHAFT,GEAR SHIFT FORK

€ 16.00

4

2541127A00
ref: 4

SHAFT,GEAR SHIFT FORK(L:128)

€ 23.50

5-1

2531017E01
ref: 5-1
MODEL V

CAM,GEAR SHIFT

€ 147.00

5-2

2531017E02
ref: 5-2
MODEL W

CAM,GEAR SHIFT

€ 147.00

6

0422104089
ref: 6

PIN

€ 1.50

7

2531212C00
ref: 7

PIN,SHIFT CAM DRIVEN GEAR

€ 6.00

8

2532233C01
ref: 8

SHIFTER,GEAR SHIFT CAM

€ 49.50

9

2532334201
ref: 9

PAWL,GEAR SHIFT NO.1

€ 6.00

10

2532434201
ref: 10

PAWL,GEAR SHIFT NO.2

€ 6.00

11

2533126D10
ref: 11

LIFTER,GEAR SHIFT PAWL

€ 6.00

12

2534133E00
ref: 12

GUIDE,GEAR SHIFT CAM

€ 6.00

13

2538033E00
ref: 13

PLATE,GEAR SHIFT CAM

€ 13.00

14

0916025059
ref: 14
25X32X3

WASHER(25X32X3)

€ 5.00

15

0918006202
ref: 15
6.1X10X16

SPACER(6.1X10X16)

€ 4.00

16

0918006202
ref: 16
6.1X10X16

SPACER(6.1X10X16)

€ 4.00

17

0918007014
ref: 17
7X10X5

SPACER(7X10X5)

€ 4.00

18

0926105003
ref: 18

PIN(5X8)

€ 1.50

19

0926225006
ref: 19
25X47X8

BEARING(25X47X8)

€ 24.00

20

0926325018
ref: 20
25X32X12

BEARING(25X32X12)

€ 17.50

21

0944004003
ref: 21

SPRING

€ 1.50

22

0211206303
ref: 22

SCREW 6X30

€ 2.50

23

0212206303
ref: 23

SCREW

€ 2.00

24

0831610063
ref: 24

NUT

€ 2.50

25

2535026D01
ref: 25

STOPPER,GEAR SHIFT CAM

€ 8.50

25A

2535533E00
ref: 25A

SPRING,SHIFT CAM STOPPER

€ 4.50

26

2535612C00
ref: 26

SUPPORT,CAM STOPPER ARM

€ 9.50

27

0821106141
ref: 27

WASHER

€ 2.50

28

2551033E00
ref: 28
MODEL V

SHAFT,GEAR SHIFT

€ 62.50

28A

2551033E10
ref: 28A
MODEL W

SHAFT,GEAR SHIFT

€ 62.50

28B

2551633E00
ref: 28B
MODEL W

BUSH,GEAR SHIFT SHAFT

€ 6.50

29

2567101000
ref: 29

STOPPER,GEAR SHIFT CAM

€ 3.00

30

0916014016
ref: 30
14X29X0.8

WASHER(14X29X0.8)

€ 1.50

31

0926314027
ref: 31
14X20X12

BEARING(14X20X12)

€ 11.00

32

0928314006
ref: 32
14X22X6

SEAL,OIL(14X22X6)

€ 6.50

33

0944420003
ref: 33

SPRING

€ 5.50

34

0821114261
ref: 34

WASHER

€ 2.00

35

0833131146
ref: 35

CIRCLIP

€ 2.00

36

2552029B00
ref: 36

ARM,GEAR SHIFT LINK

€ 58.00

37

2552647000
ref: 37

COVER,DUST

€ 3.50

38

2552507A10
ref: 38

ROD,GEAR SHIFT LINK(L:165)

€ 12.00

39

2560033E00
ref: 39

LEVER ASSY,GEAR SHIFT

€ 106.00

40

2552647000
ref: 40

COVER,DUST

€ 3.50

41

2565220C00
ref: 41

RUBBER,GEAR SHIFT PEDAL

€ 8.00

42

0914006011
ref: 42

NUT

€ 1.50

43

0150006203
ref: 43

BOLT

€ 2.00

44

0831000067
ref: 44

NUT

€ 2.50

45-1

3773033E00
ref: 45-1
MODEL V

BASE ASSEMBLY,GEAR SHIFT TERMINAL

€ 100.50

45-2

3773033E10
ref: 45-2
MODEL W

BASE ASSEMBLY,GEAR SHIFT TERMINAL

€ 106.50

46

0920905011
ref: 46

PIN(5X15.5)

€ 2.00

47

0928026007
ref: 47
ID:25.7, OD:2.4

O RING(D:2.4,ID:25.7)

€ 6.50

48

0940406429
ref: 48

CLAMP(L:45)

€ 2.50

49

0944004010
ref: 49

SPRING

€ 1.50

50

0211205163
ref: 50

SCREW

€ 2.00
