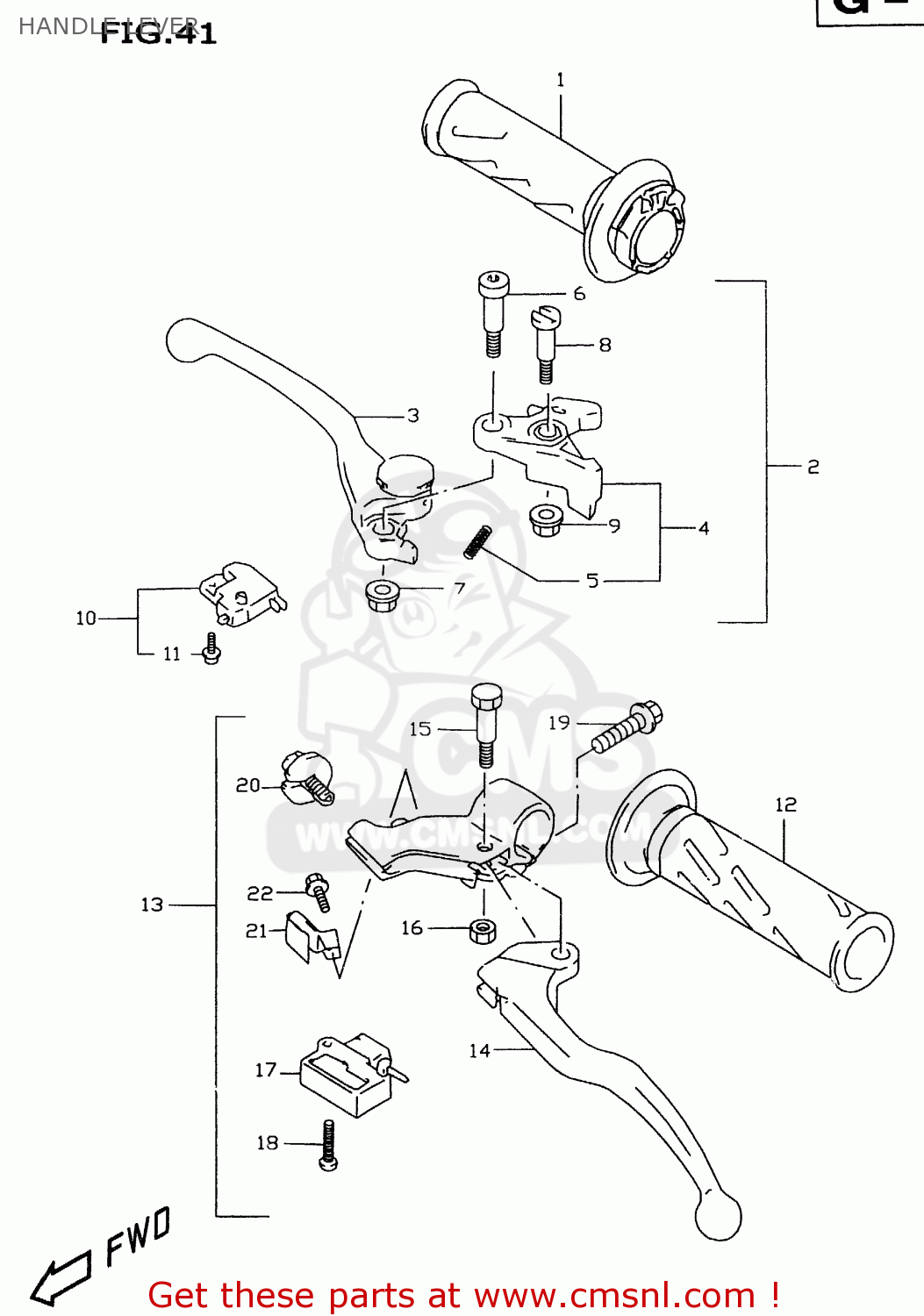

HANDLE LEVER

ref

part #

description

quantity

1

5711046E01
ref: 1

GRIP,THROTTLE

€ 26.00

2

5730032C10
ref: 2

LEVER ASSY,BRAKE

€ 88.00

3

5742032C00
ref: 3

LEVER,ADJUST

€ 39.50

4

5743032C10
ref: 4

KNOCKER

€ 45.50

5

5743832C00
ref: 5

SPRING

€ 4.00

6

5743732C01
ref: 6

BOLT,LEVER

€ 6.50

7

0831931063
ref: 7

NUT

€ 2.50

8

5743117C00
ref: 8

BOLT,LEVER PIVOT

€ 8.00

9

0831610063
ref: 9

NUT

€ 2.50

10

5746017C00
ref: 10

SWITCH ASSEMBLY,STOP

€ 32.50

11

5746517C00
ref: 11

SCREW

€ 1.50

12

5721122D01
ref: 12

GRIP,LEFT

€ 11.50

13

5750033E20
ref: 13

LEVER ASSEMBLY,CLUTCH

€ 97.00

14

5762133E00
ref: 14

LEVER,CLUTCH

€ 24.00

15

5743145C00
ref: 15

BOLT,LEVER SET

€ 10.50

16

0831921065
ref: 16

NUT

€ 2.50

17

5756005A00
ref: 17

SWITCH,CLUTCH

€ 11.00

18

0212203208
ref: 18

SCREW

€ 2.00

19

0154706203
ref: 19

SCREW

€ 2.50

20

5764133E20
ref: 20

NUT,CABLE ADJUSTER

€ 24.00

21

5764433E00
ref: 21

SPRING,ADJUST

€ 6.50

22

5764233E00
ref: 22

SCREW,SPRING

€ 2.50

all assemblies
