CLUTCH (MODEL V/W)
GSXR600 2000 (Y) USA (E03)

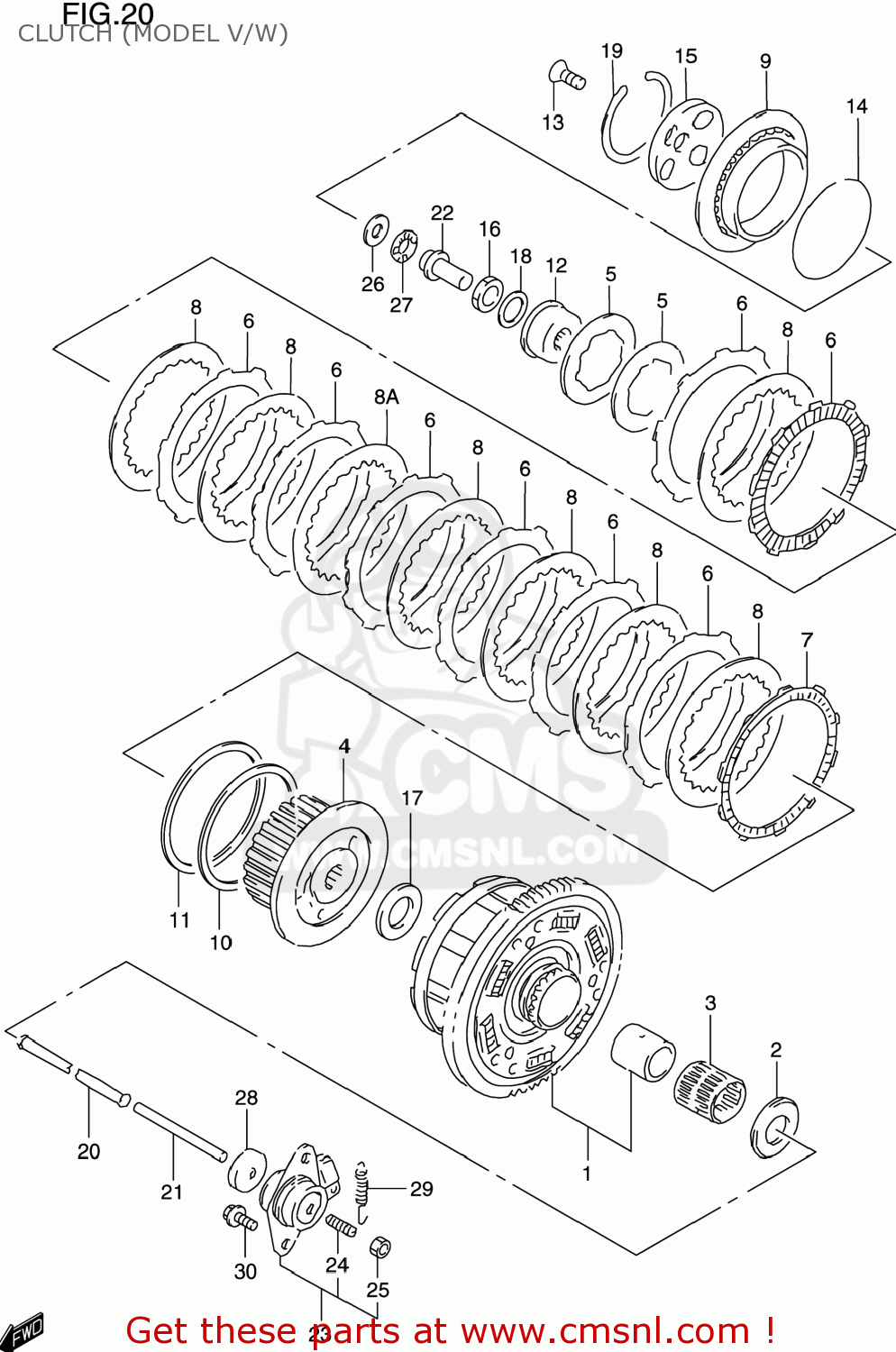

Clutch (model v/w) diagram GSXR600 2000 (Y) USA (E03)
CLUTCH (MODEL V/W) GSXR600 2000 (Y) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
2120031880
ref: 1-1
21200-31890
GEAR ASSEMBLY,PRIMARY DRIVE
€ 377.00
1-2
2120131810
ref: 1-2
GEAR ASSY,PRI DRIVEN
€ 337.50
2
0916025037
ref: 2
WASHER(25X54X2.5)
€ 9.00
3
0926335017
ref: 3
BEARING(35X40X35.8)
€ 36.50
4
2141031E40
ref: 4
HUB,CLUTCH SLEEVE
€ 87.50
5
2141331E40
ref: 5
SPRING,CLUTCH
€ 15.50
6-1
2144131E20
ref: 6-1
21441-31E50
PLATE,CLUTCH DRIVE NO (NAS)
€ 21.00
6-2
2144131E50
ref: 6-2
PLATE,CLUTCH DRIVE NO.1 (NAS)
€ 21.00
7-1
2144231E00
ref: 7-1
PLATE,CLUTCH DRIVE
€ 25.50
7-2
2144231E20
ref: 7-2
21442-31E21
PLATE,CLUTCH DRIVE NO (NAS)
€ 19.00
8
2145131E00
ref: 8
PLATE,CLUTCH DRIVEN NO.1
€ 7.00
8A
2145131E10
ref: 8A
PLATE,CLUTCH DRIVEN NO.2
€ 7.50
9-1
2146231E40
ref: 9-1
DISC,CLUTCH PRESSURE
€ 54.00
9-2
2146231E60
ref: 9-2
21462-31E40
DISC,CLUTCH PRESSURE
€ 54.00
10
2147131E20
ref: 10
SEAT,CLUTCH PLATE WAVE WASHER
€ 12.00
11-1
2147231E20
ref: 11-1
WASHER,CLUTCH PLATE WAVE
€ 15.00
11-2
2147231E01
ref: 11-2
WASHER,CLUTCH PLATE WAVE
€ 15.00
12
2161131E20
ref: 12
HOLDER,CLUTCH SPRING
€ 39.00
13
2161431E20
ref: 13
SCREW,CLUTCH SPRING HOLDER
€ 3.50
14
2162331E20
ref: 14
SEAT,CLUTCH SPRING
€ 5.50
15
2146340C01
ref: 15
LIFTER,CLUTCH PRESSURE DISC
€ 33.00
16
0915924010
ref: 16
NUT
€ 11.00
17
0821125505
ref: 17
WASHER
€ 6.00
18
0916424006
ref: 18
WASHER
€ 4.00
19
0938184002
ref: 19
09381-84003
CIRCLIP
€ 10.50
20
2311027A00
ref: 20
ROD,CLUTCH
€ 17.00
21
2311134C00
ref: 21
ROD,CLUTCH PUSH,L
€ 15.50
22
2312131E10
ref: 22
23121-31E00
PIECE,CLUTCH PUSH
€ 18.50
23
2320020C00
ref: 23
SCREW ASSY,CLUTCH RELEASE
€ 74.50
24
0913406010
ref: 24
SCREW(6X25)
€ 3.00
25
0831000067
ref: 25
NUT
€ 2.50
26
0916015045
ref: 26
WASHER(15.5X28X1)
€ 4.00
27
0926315003
ref: 27
BEARING(15X28X2)
€ 7.00
28
0928506015
ref: 28
SEAL,OIL(6X34X5.5)
€ 8.50
29
0944309044
ref: 29
SPRING
€ 3.50
30
0155006163
ref: 30
01550-0616A
BOLT
€ 2.50
