ELECTRICAL

GSXR600 2000 (Y) USA (E03)

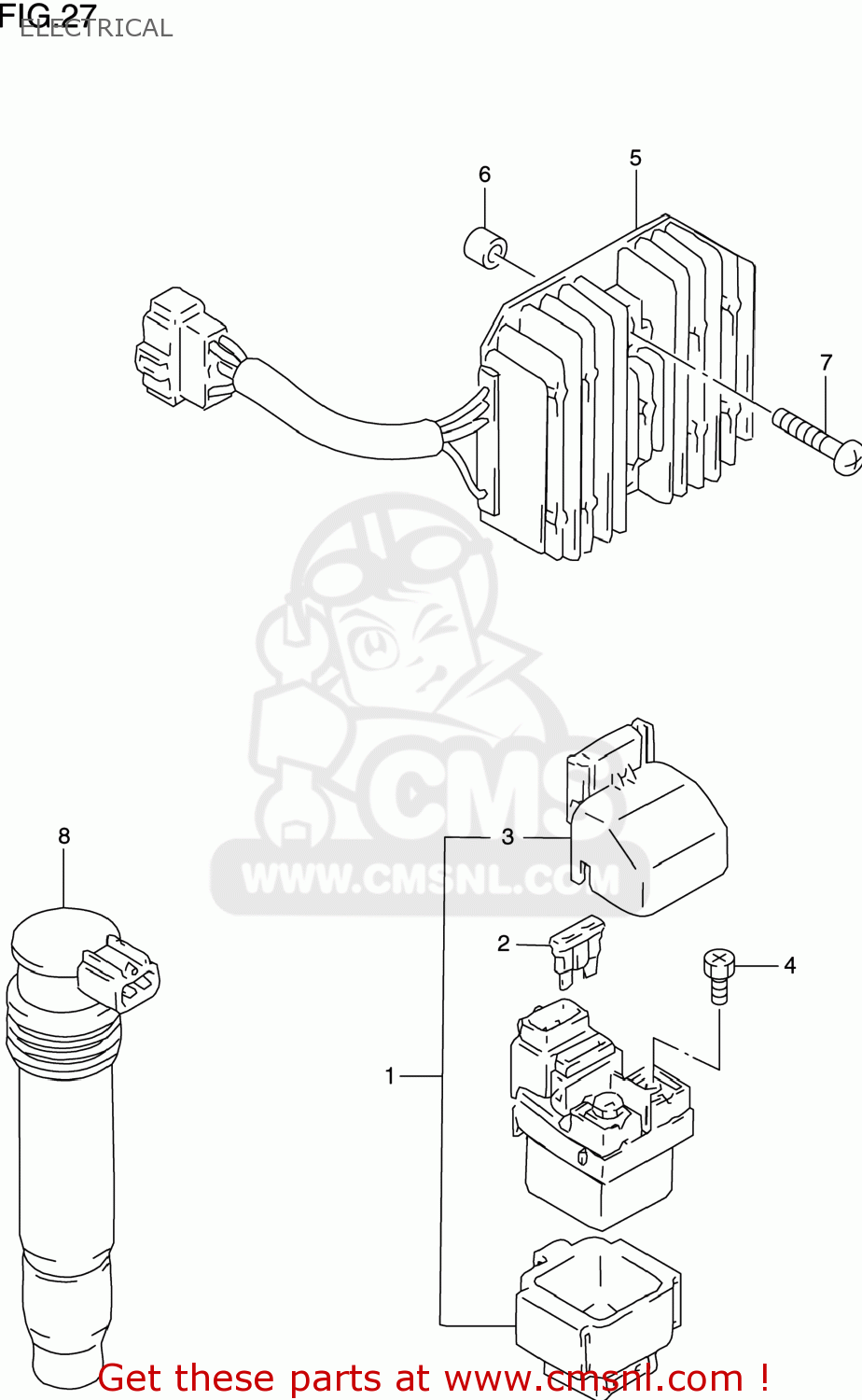

Electrical diagram GSXR600 2000 (Y) USA (E03)

ELECTRICAL GSXR600 2000 (Y) USA (E03)

ELECTRICAL GSXR600 2000 (Y) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

3180026E00
ref: 1

RELAY ASSY,STARTING MOTOR

€ 77.50

2

0948130101
ref: 2

FUSE(30A)

€ 6.00

3

3186126E00
ref: 3

COVER,STARTER RELAY

€ 3.50

4

0912806013
ref: 4

SCREW(6X8)

€ 1.50

5

3280033E00
ref: 5
32800-44D11

RECTIFIER ASSEMBLY

€ 368.00

6

0918006283
ref: 6

SPACER(6.5X10X7)

€ 2.00

7

0214206353
ref: 7
02142-0635A

SCREW

€ 2.00

8

3341034E00
ref: 8

COIL ASSY,IGNITION

€ 146.00
