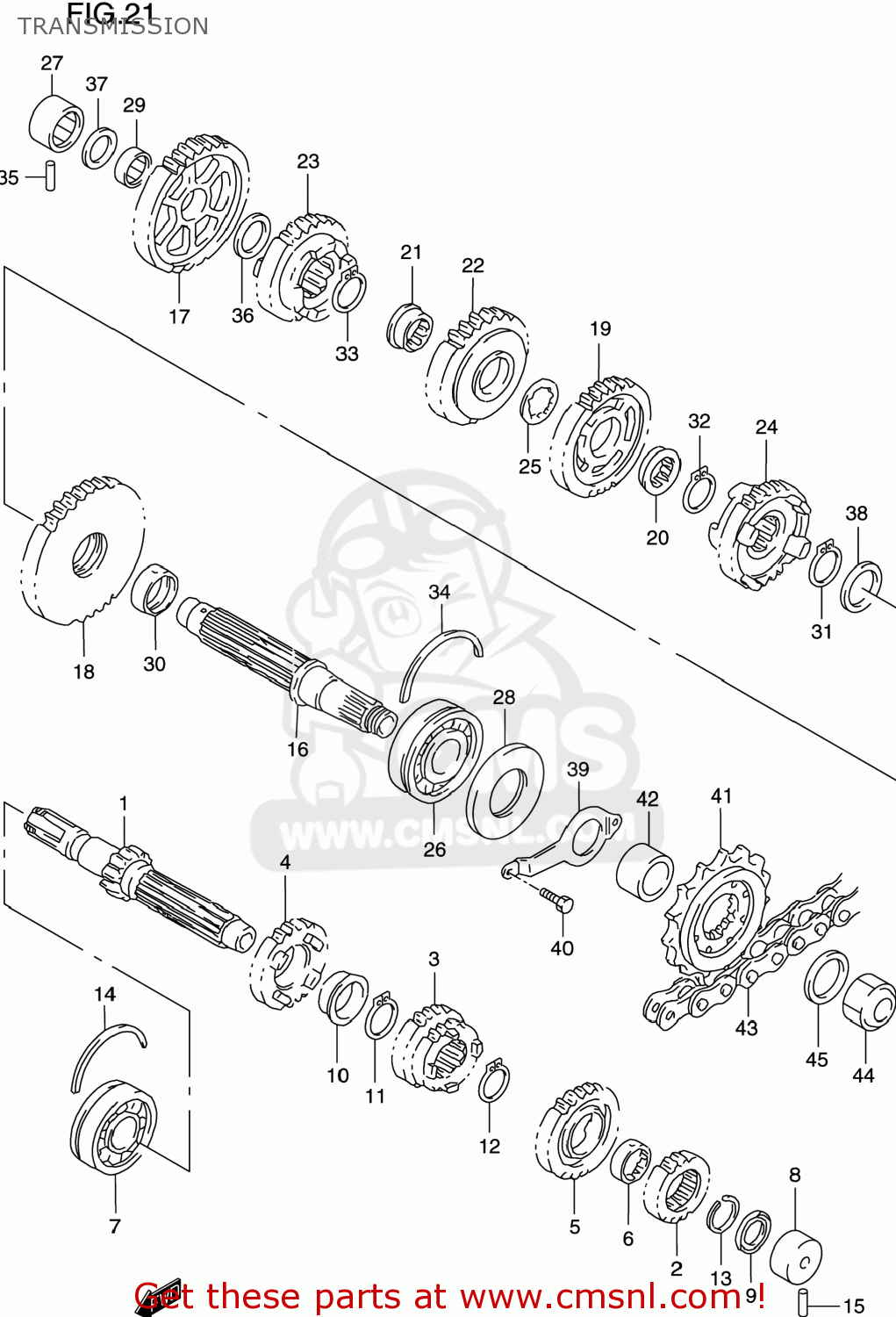

TRANSMISSION

ref

part #

description

quantity

1

2412033E00
ref: 1

SHAFT,COUNTER

€ 193.00

2-1

2422133E00
ref: 2-1

GEAR,2ND DRIVE

€ 65.50

2-2

2422134E00
ref: 2-2

GEAR,2ND DRIVE

€ 65.00

3-1

2423133E00
ref: 3-1

GEAR,3RD & 4TH DRIVE

€ 132.00

3-2

2423134E00
ref: 3-2

GEAR,3RD & 4TH DRIVE

€ 133.50

4-1

2425133E10
ref: 4-1

GEAR,5TH DRIVE

€ 93.00

4-2

2425134E00
ref: 4-2

GEAR,5TH DRIVE

€ 94.00

5-1

2426133E10
ref: 5-1

GEAR,6TH DRIVE

€ 388.50

5-2

2426134E00
ref: 5-2

GEAR,6TH DRIVE

€ 91.00

6

2426217E10
ref: 6

BUSH,6TH DRIVE GEAR

€ 22.00

7

0926225051
ref: 7
09262-25105

BEARING(25X62X17)

€ 59.50

8-1

0926320082
ref: 8-1
09263-20085

BEARING

€ 50.50

8-1

0926320082
ref: 8-1
09263-20085

BEARING

€ 50.50

8-2

0926320085
ref: 8-2

BEARING(20X34X17.5)

€ 50.50

8-2

0926320085
ref: 8-2

BEARING(20X34X17.5)

€ 50.50

9

0928520006
ref: 9

SEAL,OIL(20X31.2X2.7)

€ 7.00

10

0930128001
ref: 10

BUSH(28X32X2)

€ 19.50

11

0938027001
ref: 11

CIRCLIP

€ 2.00

12

0938027001
ref: 12

CIRCLIP

€ 2.00

13

0938027004
ref: 13

CIRCLIP

€ 3.50

14

0939062012
ref: 14

C RING

€ 5.00

15

0422107209
ref: 15

PIN

€ 1.50

16

2413133E00
ref: 16

SHAFT,DRIVE

€ 158.50

17-1

2431133E00
ref: 17-1

GEAR,1ST DRIVEN

€ 95.00

17-2

2431117E01
ref: 17-2

GEAR,1ST DRIVEN(NT:43)

€ 109.00

18-1

2432133E00
ref: 18-1

GEAR,2ND DRIVEN

€ 98.50

18-2

2432134E00
ref: 18-2

GEAR,2ND DRIVEN

€ 232.00

19-1

2433133E01
ref: 19-1

GEAR,3RD DRIVEN(NT:33)

€ 106.00

19-2

2433134E00
ref: 19-2

GEAR,3RD DRIVEN

€ 212.50

20

2433217E10
ref: 20

BUSH

€ 37.00

21

2433217E10
ref: 21

BUSH

€ 37.00

22-1

2434133E01
ref: 22-1

GEAR,4TH DRIVEN(NT:30)

€ 87.00

22-2

2434134E00
ref: 22-2

GEAR,4TH DRIVEN

€ 204.50

23-1

2435133E10
ref: 23-1

GEAR,5TH DRIVEN

€ 101.00

23-2

2435134E00
ref: 23-2

GEAR,5TH DRIVEN

€ 88.50

24-1

2436133E10
ref: 24-1

GEAR,6TH DRIVEN

€ 103.50

24-2

2436134E00
ref: 24-2

GEAR,6TH DRIVEN

€ 132.00

25

0916727002
ref: 25

WASHER,LOCK

€ 5.00

26

0926228025
ref: 26

BEARING(28X70X18)

€ 97.50

27

0926320040
ref: 27

BEARING(20X34X20)

€ 42.50

28

0928336008
ref: 28

SEAL,OIL(34.8X70X6)

€ 16.50

29

0930022008
ref: 29

BUSH(22X26X9)

€ 10.50

30

0930028003
ref: 30

BUSH(28X32X9.5)

€ 19.50

31

0938027001
ref: 31

CIRCLIP

€ 2.00

32

0938027001
ref: 32

CIRCLIP

€ 2.00

33

0938027001
ref: 33

CIRCLIP

€ 2.00

34

0939070001
ref: 34

C RING

€ 5.50

35

0422107209
ref: 35

PIN

€ 1.50

36

0918120251
ref: 36

SHIM(20X34X1)

€ 3.00

37

0918122223
ref: 37

SHIM(22X34X1)

€ 3.00

38

0918128195
ref: 38

SHIM(28X38X1)

€ 3.50

39

2475133E10
ref: 39

RETAINER,CL PUSH ROD OIL SEAL

€ 3.50

40

0150006123
ref: 40
01500-0612A

BOLT

€ 2.00

41

2751020A10
ref: 41

SPROCKET,ENGINE(16T)

€ 38.00

42

2753133E00
ref: 42

SPACER,ENG SPROCKET

€ 19.00

43

2760032C10108
ref: 43

CHAIN,DRIVE(DID525V9,108L)

€ 151.50

44

0915920004
ref: 44

NUT

€ 12.00

45

0916025009
ref: 45

WASHER(25X41X3)

€ 5.00

all assemblies
