REAR MASTER CYLINDER
GSXR600 2000 (Y) USA (E03)

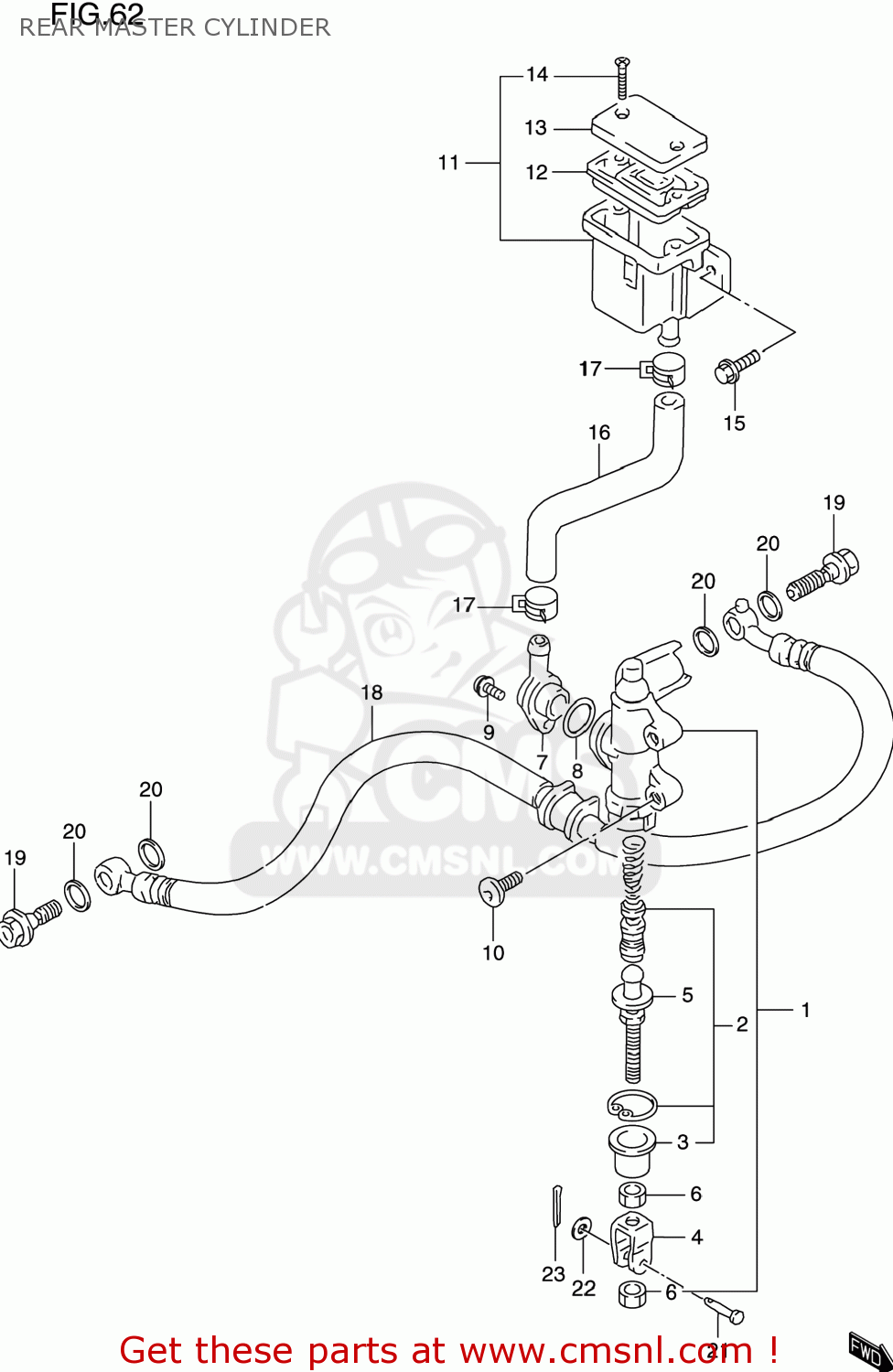

Rear master cylinder diagram GSXR600 2000 (Y) USA (E03)
REAR MASTER CYLINDER GSXR600 2000 (Y) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
6960033C00
ref: 1
CYLINDER ASSY,RR MASTER
€ 194.50
2
6960004820
ref: 2
PISTON/CUP SET
€ 31.00
3
6969100A00
ref: 3
BOOT
€ 3.50
4
6969227A30
ref: 4
YOKE
€ 12.50
5
6967048B00
ref: 5
ROD,PUSH
€ 20.50
6
6969305A00
ref: 6
NUT
€ 1.50
7
6967205A00
ref: 7
CONNECTOR
€ 4.50
8
6968634200
ref: 8
O RING
€ 3.50
9
0211274123
ref: 9
02112-7412A
SCREW
€ 2.50
10
0913906028
ref: 10
SCREW(6X20)
€ 3.50
11
6974024A01
ref: 11
TANK ASSY,RESERVOIR
€ 99.50
12
5966704700
ref: 12
DIAPHRAGM
€ 8.00
13
5966905D00
ref: 13
CAP
€ 13.50
14
6968904A00
ref: 14
SCREW
€ 2.00
15
0155006123
ref: 15
01550-0612A
BOLT
€ 2.50
16
6973133E00
ref: 16
HOSE,RESERVOIR TANK
€ 13.50
17
0940113417
ref: 17
CLIP
€ 2.50
18
6948034E00
ref: 18
HOSE,RR BRAKE
€ 91.00
19
0936010041
ref: 19
09360-10061
BOLT UNION
€ 6.50
20
0916110009
ref: 20
WASHER(10X15X1.5)
€ 2.00
21
0920006037
ref: 21
09200-06068
PIN
€ 5.00
22
0832201063
ref: 22
08322-0106B
WASHER
€ 2.00
23
0411120158
ref: 23
04111-2015A
PIN
€ 1.50
