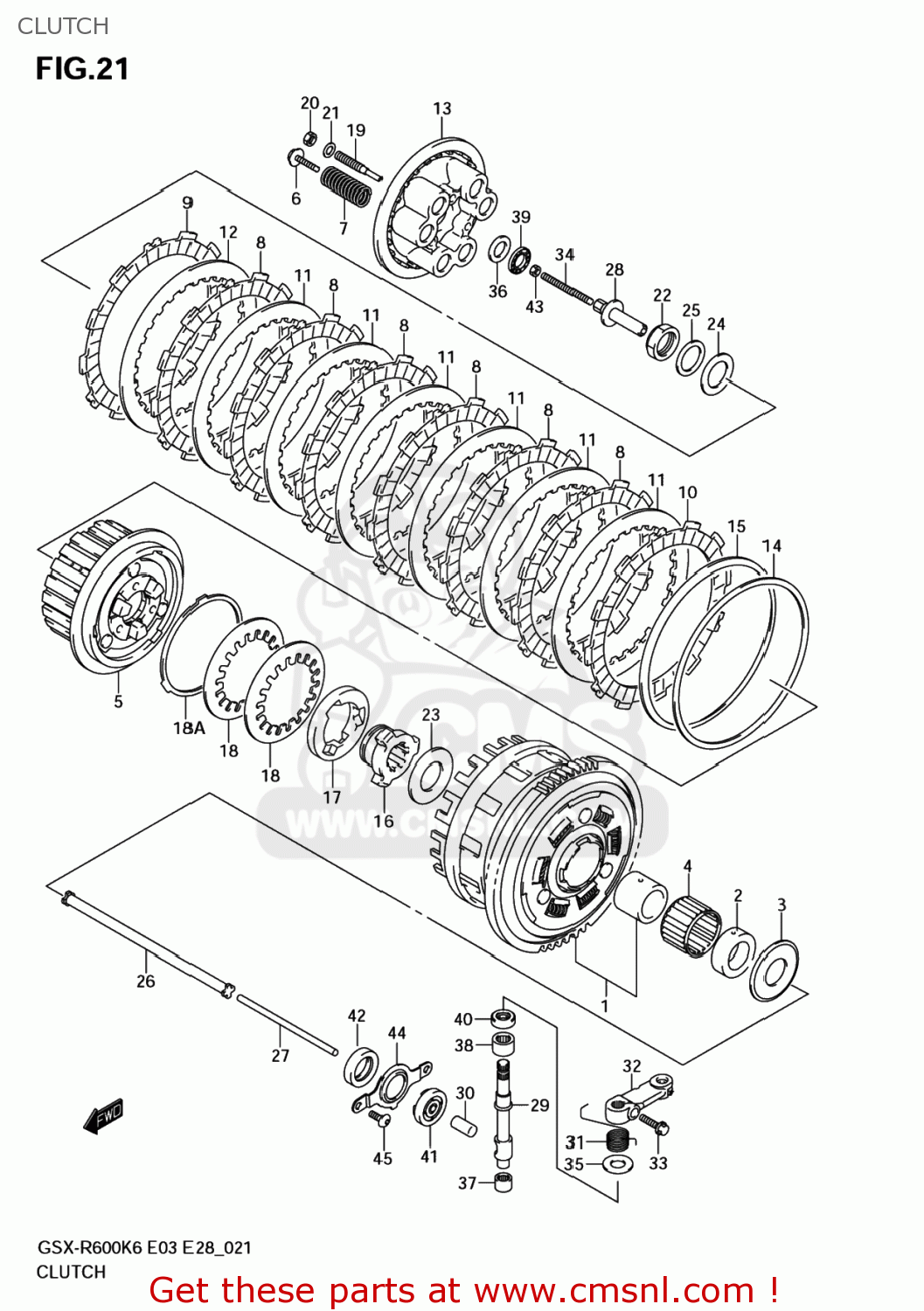

CLUTCH

ref

part #

description

quantity

1

2120001810
ref: 1

GEAR ASSY,PRIM

€ 522.50

2

2125301H00
ref: 2

SPACER,OIL PUMP DRIVE SPROCKET

€ 31.50

3

0916025073
ref: 3

WASHER(25X54X2.4)

€ 8.50

4

0926335015
ref: 4

BEARING(35X40X26.8)

€ 20.00

5

2141041G10
ref: 5

HUB,CLUTCH SLEEVE

€ 226.00

6

2148241G00
ref: 6

BOLT,CLUTCH SPRING

€ 3.00

7

2141301H00
ref: 7

SPRING,CLUTCH

€ 7.00

8

2144136F30
ref: 8

PLATE,CLUTCH DRIVE NO.1 (NAS)

€ 14.50

9

2144136F20
ref: 9

PLATE,CLUTCH DRIVE NO.2 (NAS)

€ 13.50

10

2144241G10
ref: 10

PLATE,CLUTCH DRIVE NO.3 (NAS)

€ 14.50

11

2145141G20
ref: 11

PLATE,CLUTCH DRIVEN (NAS)

€ 10.00

12

2145141G00
ref: 12

PLATE,CLUTCH DRIVEN(T:2.3) (NAS)

€ 7.50

13

2146241G00
ref: 13

DISC,CLUTCH PRESSURE

€ 43.50

14

2147141G00
ref: 14

SEAT,WAVE WASHER

€ 12.00

15

2147241G10
ref: 15

WASHER,CLUTCH PLATE WAVE

€ 20.50

16

2161141G10
ref: 16

CAM,CLUTCH DRIVE

€ 121.50

17

2161241G10
ref: 17

CAM,CLUTCH DRIVEN

€ 77.00

18

2162141G00
ref: 18

WASHER,CAM REACTION WAVE

€ 12.00

18A

2162441G00
ref: 18A

WASHER,CAM REACTION SEAT

€ 10.50

19

2162241G00
ref: 19

LIFTER,CLUTCH PRESSURE DISC

€ 8.00

20

2162341G00
ref: 20

NUT,CL PRESS DISC LIFTER LOCK

€ 2.00

21

0918108139
ref: 21

SHIM(8.8X14X1)

€ 1.50

22

0915924010
ref: 22

NUT

€ 11.00

23

0916025056
ref: 23

WASHER(25X50X2.5)

€ 9.50

24

0916424006
ref: 24

WASHER

€ 4.00

25

0916025077
ref: 25

WASHER(25X41X2.5)

€ 6.50

26

2311038B00
ref: 26

ROD,CLUTCH PUSH,R

€ 19.00

27

2311135F00
ref: 27

ROD,CLUTCH PUSH,L

€ 11.50

28

2312141G00
ref: 28

PIECE,CLUTCH PUSH

€ 33.00

29

2312241G00A05
ref: 29
23122-41G00

CAMSHAFT,CLUTCH RELEASE

€ 36.50

30

2312341G00
ref: 30

CAP,CLUTCH PUSH ROD

€ 9.00

31

2312541G00
ref: 31

SPRING,CLUTCH RELEASE RETURN

€ 3.00

32

2327141G20
ref: 32

ARM,CLUTCH REL

€ 51.00

33

0910306223
ref: 33

BOLT(6X20)

€ 2.50

34

0913406015A05
ref: 34
09134-06015

SCREW. CLUTCH P

€ 5.50

35

0916010020A05
ref: 35
09160-10020

WASHER. CLUTCH

€ 2.00

36

0916015045
ref: 36

WASHER(15.5X28X1)

€ 4.00

37

0926310014
ref: 37

BEARING(10X14X10)

€ 12.00

38

0926312027
ref: 38

BEARING(12X18X12)

€ 6.00

39

0926315003
ref: 39

BEARING(15X28X2)

€ 7.00

40

0928210012
ref: 40

SEAL,OIL(10X20X6)

€ 7.50

41

0928506011
ref: 41

SEAL,OIL(6X34X10)

€ 9.50

42

0928510004
ref: 42

SEAL,OIL(10X17X5)

€ 3.50

43

083100006A
ref: 43

NUT

€ 2.00

44

2474101H00A05
ref: 44
24741-01H00

RETAINER,CL PUSH ROD OIL SEAL

€ 5.00

45

0913906153
ref: 45

SCREW(6X13)

€ 2.00
