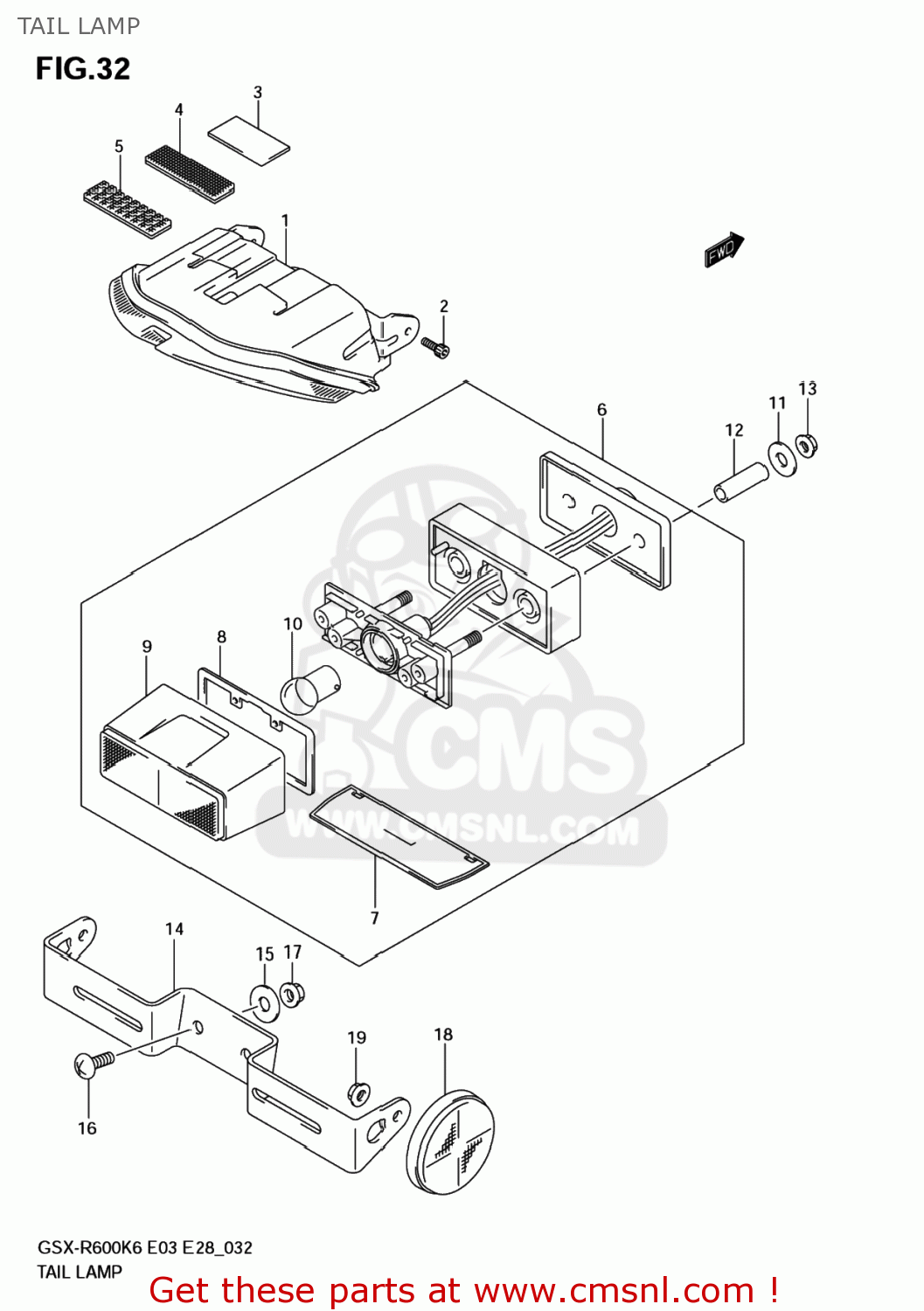

TAIL LAMP

ref

part #

description

quantity

1

3571001H30
ref: 1

LAMP ASSY,RR COMBINATION

€ 143.00

2

071200512A
ref: 2

BOLT

€ 2.00

3

3365224D00
ref: 3

PROTECTOR,BATTERY(100X70X3)

€ 4.00

3

3365224D00
ref: 3

PROTECTOR,BATTERY(100X70X3)

€ 4.00

4

3578401H00
ref: 4

FASTENER,RR COMB LAMP

€ 7.00

5

3578401H10
ref: 5

FASTENER,RR COMB LAMP

€ 6.50

6

3591041G30
ref: 6
35910-41G31

LAMP ASSY,LICE

€ 62.50

7

3591241G00
ref: 7

LENS LICENCE

€ 19.50

8

3591341G00
ref: 8

GASKET (NAS)

€ 19.00

9

3591741G00
ref: 9

COVER,LICENSE LAMP

€ 27.00

10

0947112140
ref: 10
09471-12058

BULB(12V5W,BF150-40160A)

€ 4.00

11

0916006077
ref: 11

WASHER(6.5X20X1.2)

€ 2.00

12

0918006278
ref: 12

SPACER(6.5X9X33.3)

€ 3.50

13

083161006A
ref: 13

NUT

€ 2.50

14

3592741G30
ref: 14

BRACKET,LICENSE PLATE

€ 0.00

15

0916006077
ref: 15

WASHER(6.5X20X1.2)

€ 2.00

16

021420616A
ref: 16

SCREW

€ 2.50

17

083161006A
ref: 17

NUT

€ 2.50

18

3597014A20
ref: 18

REFLECTOR ASSY,RR SIDE

€ 11.00

19

083161005A
ref: 19

NUT

€ 2.50

all assemblies
