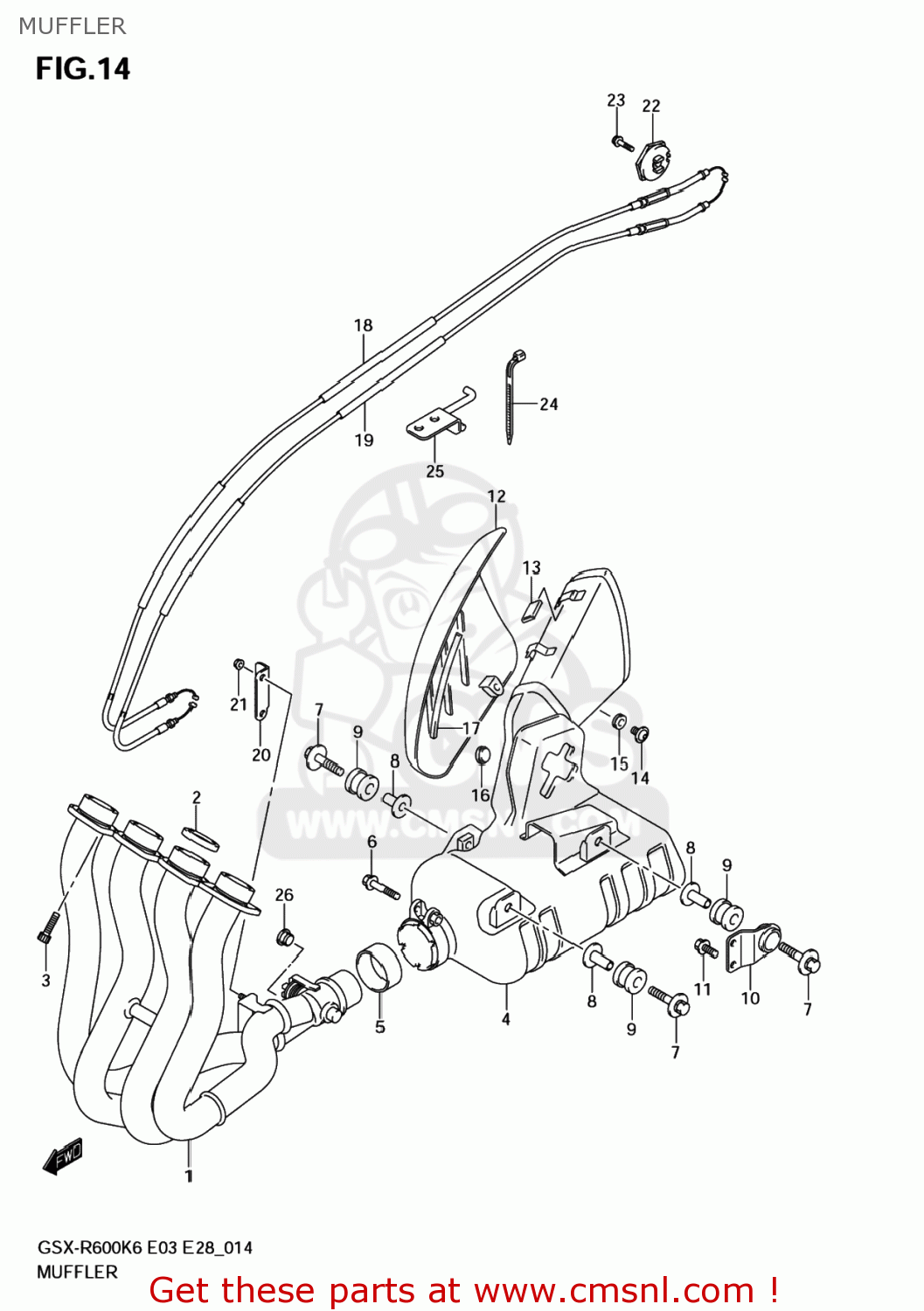

MUFFLER

ref

part #

description

quantity

1-1

1410001H00E00
ref: 1-1
14100-01H00

PIPE COMP,EXHA

€ 638.50

1-2

1410001H10E00
ref: 1-2
14100-01H10

PIPE COMP,EXHA

€ 568.50

2

1418146E00
ref: 2

GASKET,EXHAUST PIPE

€ 6.50

3

071300825A
ref: 3

BOLT

€ 3.00

4

1420001H00H01
ref: 4

MUFFLER

€ 1,644.00

5

1477124F00
ref: 5

CONNECTOR,MUFFLER

€ 14.00

6

0910308392
ref: 6

BOLT(8X40)

€ 4.00

7

0911808152A05
ref: 7

BOLT(8X45)

€ 5.00

8

0918008152A05
ref: 8
09180-08152

SPACER (8.6X12

€ 6.00

9

0932012048
ref: 9

CUSHION

€ 5.00

10

1477001H00
ref: 10

BRACKET,CHAMBER SPRT

€ 15.00

11

071200816A
ref: 11

BOLT

€ 3.00

12

1478001H00E00
ref: 12
14780-01H01

COVER COMP,MUF

€ 245.50

13

1479510FA0
ref: 13

GROMMET

€ 3.00

14

0913906128
ref: 14

SCREW(6X12)

€ 4.00

15

0932008066
ref: 15

CUSHION

€ 7.50

16

0932110018
ref: 16

CUSHION

€ 5.00

17

4731590100
ref: 17

SEAL(L:520)

€ 4.00

18-1

1127601H00E00
ref: 18-1
11276-01H01

CABLE,EXH VALV

€ 61.00

18-2

1127601H01E00
ref: 18-2
11276-01H01

CABLE,EXH VALV

€ 61.00

19-1

1127701H00E00
ref: 19-1
11277-01H01

CABLE,EXH VALV

€ 61.00

19-2

1127701H01E00
ref: 19-2
11277-01H01

CABLE,EXH VALV

€ 61.00

20

1425001H00
ref: 20

BRACKET,EXHAUST VALVE CABLE

€ 7.00

21

083161006A
ref: 21

NUT

€ 2.50

22

1126918G00
ref: 22
11269-18G01

PULLEY CONTROL

€ 17.00

23

071200516A
ref: 23

BOLT

€ 1.50

24

0940719401
ref: 24

CLAMP(L:190)

€ 2.00

25

1461001H00
ref: 25

BRACKET,EXHAUST VALVE CABLE

€ 7.00

26

0924818005
ref: 26

PLUG

€ 4.00
