FRAME

GSXR600Z 2001 (K1) USA (E03)

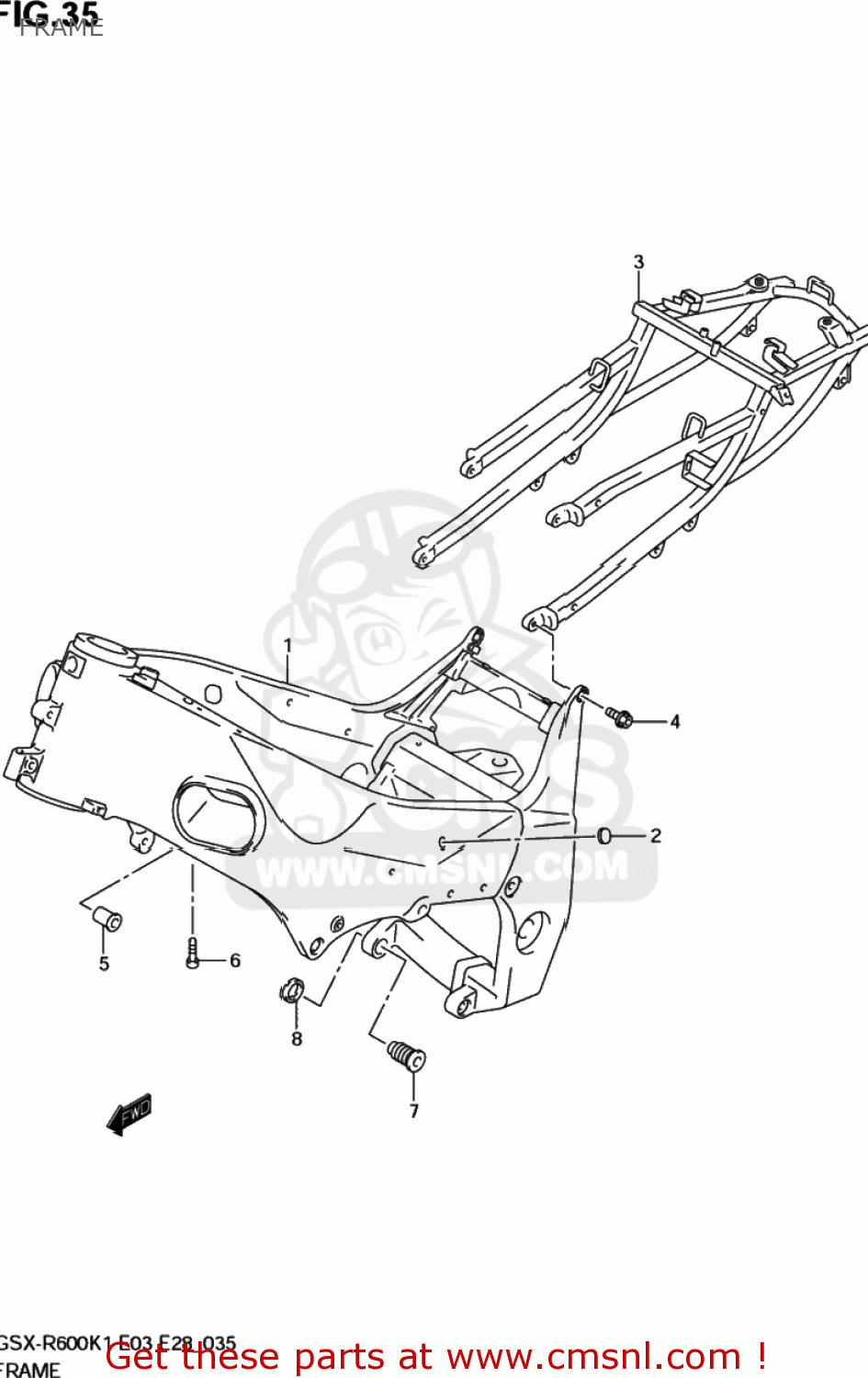

Frame diagram GSXR600Z 2001 (K1) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

4110039F00
ref: 1-1
41100-39F01

FRAME COMP

€ 1,523.50

1-2

4110039F10
ref: 1-2
41100-39F11

FRAME COMP

€ 609.00

1-3

4110039F20
ref: 1-3

FRAME

€ 1,530.00

4358533E00
ref: 2

CAP,TANK RAIL

€ 9.00

3-1

4120039F00
ref: 3-1
41200-39F02

RAIL COMP,SEAT

€ 955.00

3-2

4120035F20
ref: 3-2
41200-35F24

RAIL COMP,SEAT

€ 892.50

3-3

4120035F23
ref: 3-3
41200-35F24

RAIL COMP,SEAT

€ 892.50

4123335F00
ref: 4
41233-35F0V

BOLT,SEAT RAIL

€ 9.50

5-1

4191133E00
ref: 5-1
41911-40F01

SPACER,ENGINE MOUNTING

€ 16.50

5-2

4191140F01
ref: 5-2

SPACER,ENGINE MOUNTING

€ 16.50

0910608149
ref: 6
09106-08170

BOLT

€ 3.00

7-1

4192133E11
ref: 7-1

BOLT,CRANKCASE ADJUST

€ 46.00

7-2

4192139F00
ref: 7-2

BOLT,CRANK CASE ADJUST

€ 23.00

4192233E00
ref: 8

NUT,CRANK CASE ADJUST BOLT

€ 18.50
