SIGNAL GENERATOR

GSXR600Z 2001 (K1) USA (E03)

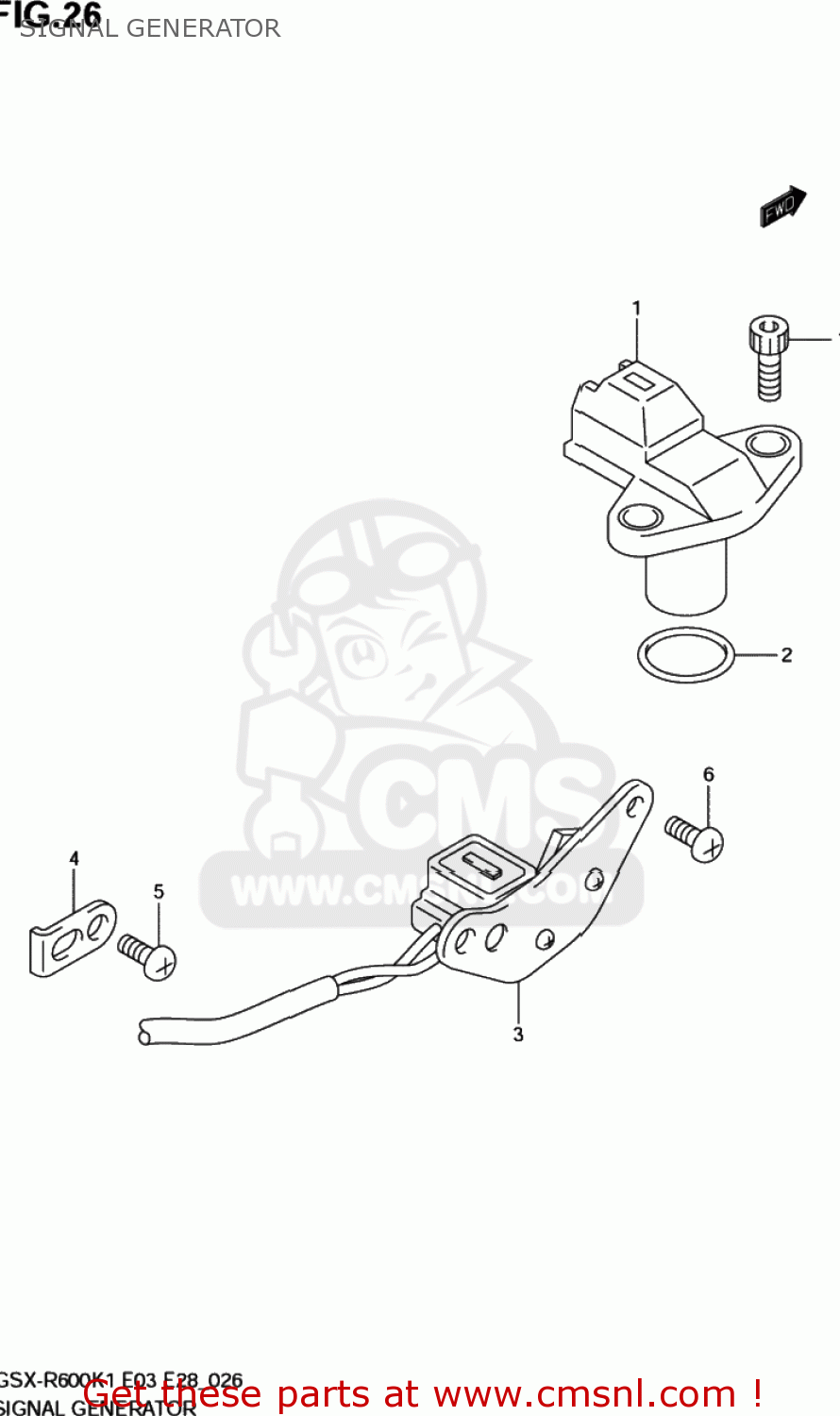

Signal generator diagram GSXR600Z 2001 (K1) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

3216002F00
ref: 1-1

SENSOR ASSY,CAM POSITION

€ 127.50

1-2

3216002F10
ref: 1-2

SENSOR ASSY,CAM POSITION

€ 127.50

3216102F00
ref: 2

PACKING (NAS)

€ 8.00

3311035F00
ref: 3

STARTER SIGNAL GENERATOR

€ 175.00

3311533E00
ref: 4

CLAMP,SIGNAL GENERATORERATOR

€ 3.00

0211205103
ref: 5
02112-0510A

SCREW

€ 2.00

0211205103
ref: 6
02112-0510A

SCREW

€ 2.00

0713006163
ref: 7
07130-0616B

BOLT,OIL FILLE

€ 3.00
