FRONT BRAKE HOSE

GSXR600Z 2001 (K1) USA (E03)

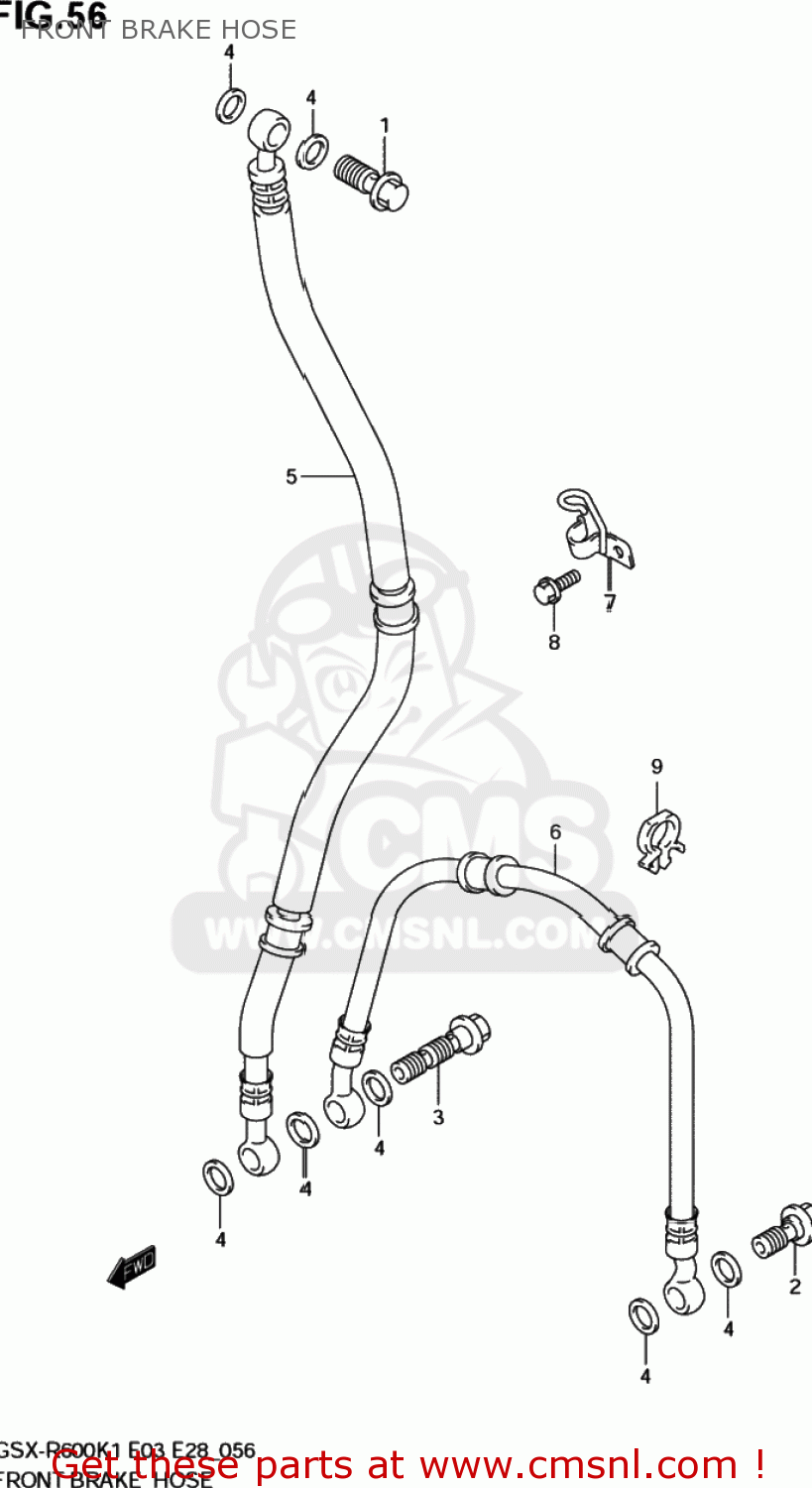

Front brake hose diagram GSXR600Z 2001 (K1) USA (E03)

prices are in EUR

ref

part #

description

quantity

0936010041
ref: 1
09360-10061

BOLT UNION

€ 6.50

0936010042
ref: 2
09360-10062

BOLT UNION

€ 5.00

0936010044
ref: 3
09360-10064

BOLT UNION

€ 5.00

0916110009
ref: 4

WASHER(10X15X1.5)

€ 2.00

5-1

5948035F00
ref: 5-1
59480-35F10

HOSE COMP,FRONT BRAKE

€ 85.50

5-2

5948035F10
ref: 5-2

HOSE,FR BRAKE NO.1

€ 85.50

6-1

5924035F00
ref: 6-1

HOSE,FR BRAKE NO.2

€ 69.50

6-2

5924040F00
ref: 6-2

HOSE,FR BRAKE NO.2

€ 75.00

5926040F00
ref: 7

CLAMP,FR BRAKE HOSE

€ 19.00

0154706123
ref: 8
01547-0612B

BOLT

€ 2.00

0940314304
ref: 9

CLAMP

€ 3.00
