THROTTLE BODY
GSXR600Z 2001 (K1) USA (E03)

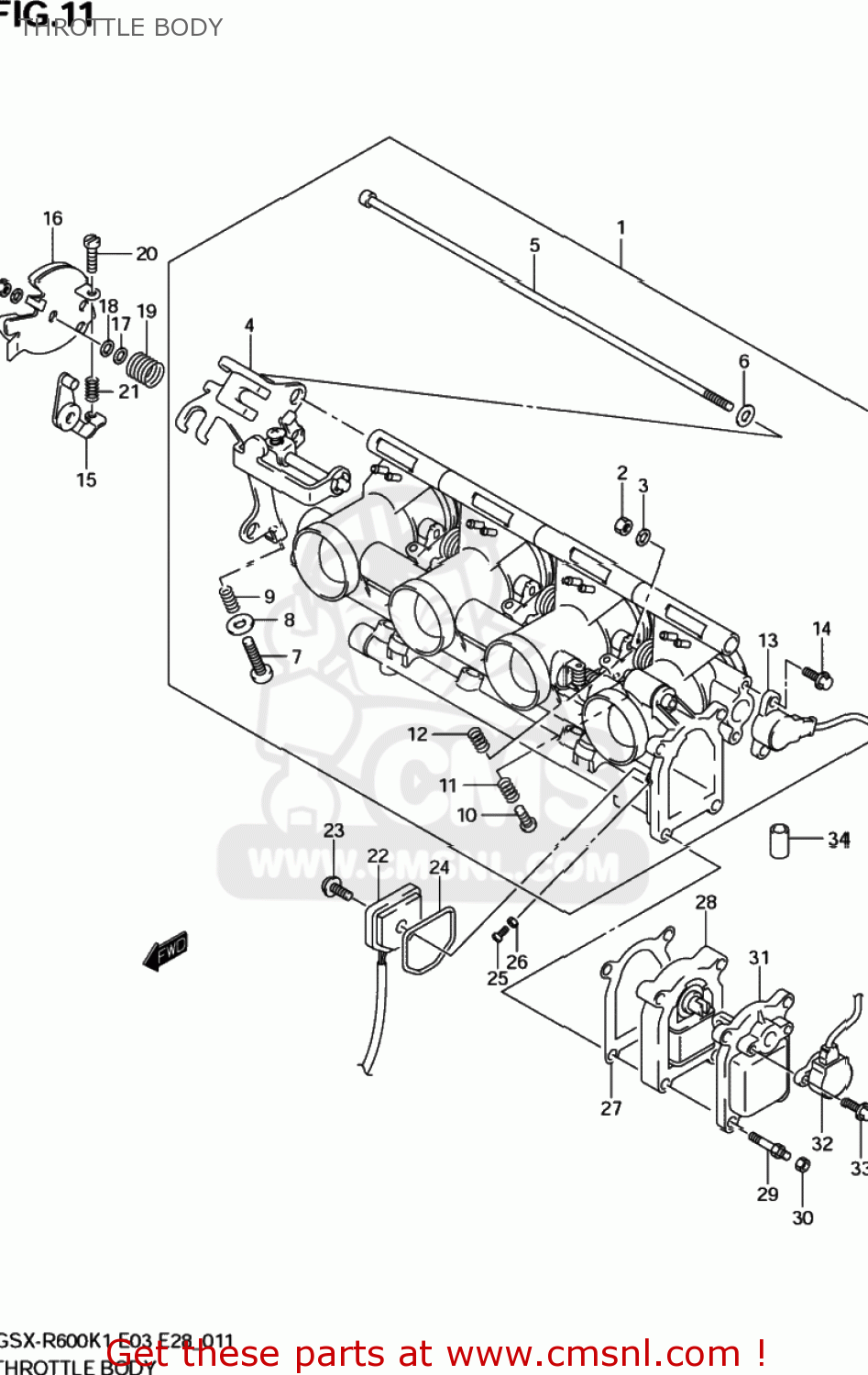

Throttle body diagram GSXR600Z 2001 (K1) USA (E03)
THROTTLE BODY GSXR600Z 2001 (K1) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
1340539F01
ref: 1-1
BODY ASSY,THROTTLE
€ 1,163.00
1-2
1340539F11
ref: 1-2
BODY ASSY,THROTTLE
€ 496.50
2
1358613626
ref: 2
NUT
€ 2.00
3
1361439F00
ref: 3
LOCK WASHER
€ 2.00
4
1362039F00
ref: 4
BRACKET ASSY
€ 68.50
5
1361333E00
ref: 5
BOLT
€ 12.00
6
1361539F00
ref: 6
WASHER
€ 2.50
7
1326720E20
ref: 7
SCREW,ADJUST
€ 8.50
8
1338609410
ref: 8
WASHER
€ 2.50
9
1337560A00
ref: 9
SPRING
€ 4.00
10
1326744B00
ref: 10
SCREW
€ 3.50
11
1327144B00
ref: 11
SPRING
€ 4.00
12
1326896111
ref: 12
SPRING,THROTTLE SCREW
€ 4.50
13
1358026F00
ref: 13
SENSOR ASSY
€ 114.00
14
1360539F00
ref: 14
SCREW
€ 4.00
15
1341339F00
ref: 15
LEVER
€ 25.00
16
1354039F00
ref: 16
THROTTLE LEVER ASSY
€ 20.50
17
1333239F00
ref: 17
WASHER
€ 2.50
18
1361539F10
ref: 18
WASHER
€ 2.00
19
1357339F00
ref: 19
SPRING
€ 6.00
20
0211204203
ref: 20
02112-0420A
SCREW
€ 1.00
21
1360160AT0
ref: 21
SCREW SET,ADJUST
€ 4.50
22
1347739F00
ref: 22
HARNESS ASSY
€ 53.00
23
0211234163
ref: 23
02112-3416B
SCREW
€ 3.00
24
1367339F20
ref: 24
SEAL
€ 5.50
25
1360539F10
ref: 25
SCREW
€ 7.00
26
1360739F10
ref: 26
NUT
€ 2.00
27
1367339F10
ref: 27
GASKET (NAS)
€ 9.00
28
1347239F00
ref: 28
YOKE ASSY
€ 151.00
29
1361339F00
ref: 29
BOLT
€ 8.50
30
1360739F00
ref: 30
NUT
€ 2.50
31
1331139F00
ref: 31
COVER ASSY
€ 176.50
32
1358039F00
ref: 32
SENSOR ASSY
€ 124.50
33
1360539F00
ref: 33
SCREW
€ 4.00
34
1368339F10
ref: 34
HOSE
€ 2.50
