FRONT FENDER (MODEL K2 FOR YC2)

GSXR600Z 2003 (K3) USA (E03)

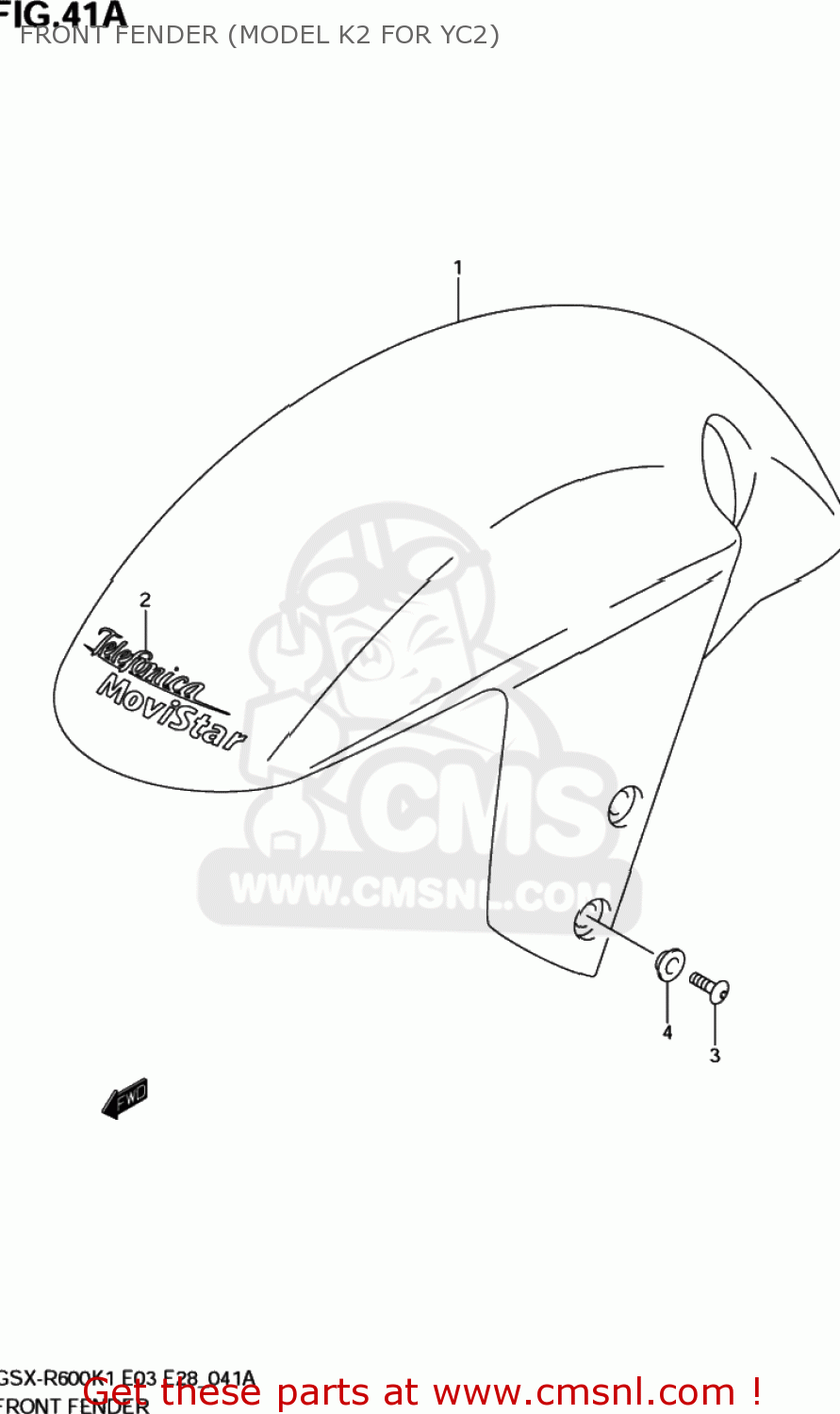

Front fender (model k2 for yc2) diagram GSXR600Z 2003 (K3) USA (E03)

FRONT FENDER (MODEL K2 FOR YC2) GSXR600Z 2003 (K3) USA (E03)

FRONT FENDER (MODEL K2 FOR YC2) GSXR600Z 2003 (K3) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

5310039F00YC2
ref: 1

FENDER ASSY,FR(BLUE)

€ 153.50

2

6815539F00FP1
ref: 2

EMBLEM,FR FENDER

€ 14.50

3

0913906030
ref: 3

SCREW(6X16)

€ 3.50

4

0916106021
ref: 4

WASHER(6.3X16X1.5)

€ 2.50
