GENERATOR (MODEL K2/K3)

GSXR600Z 2003 (K3) USA (E03)

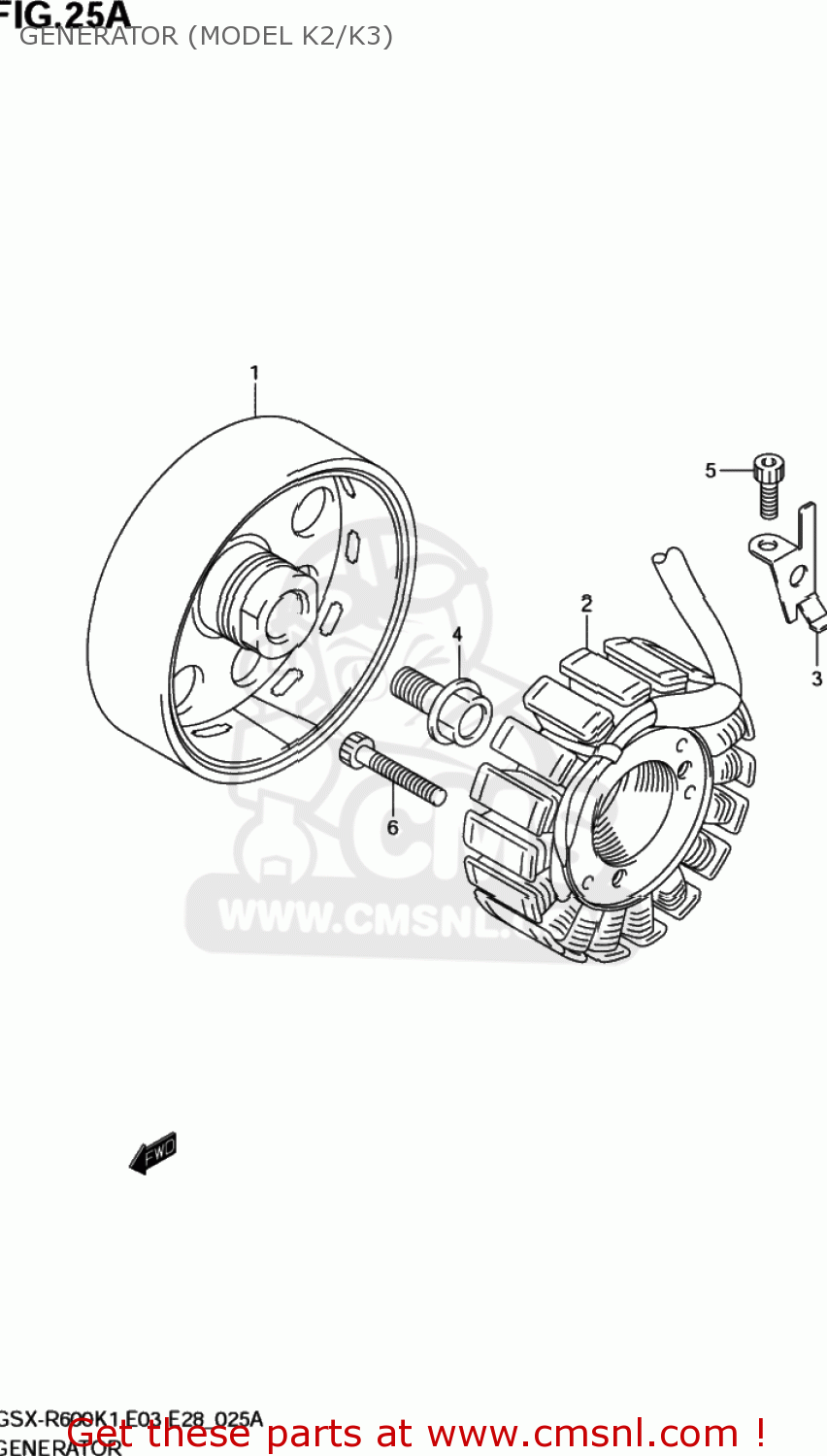

Generator (model k2/k3) diagram GSXR600Z 2003 (K3) USA (E03)

GENERATOR (MODEL K2/K3) GSXR600Z 2003 (K3) USA (E03)

GENERATOR (MODEL K2/K3) GSXR600Z 2003 (K3) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

3140235F10
ref: 1

ROTOR ASSY

€ 399.50

2

3140135F10
ref: 2

STARTER ASSY

€ 473.00

3

3237133E00
ref: 3

CLAMP,MAGNETO LEAD

€ 3.50

4

0910312005
ref: 4

BOLT(12X23)

€ 5.50

5

0713006123
ref: 5
07130-0612A

BOLT,STRANGER

€ 2.50

6

0713006353
ref: 6
07130-0635B

BOLT

€ 3.50
