CAM CHAIN
GSXR750 2003 (K3) USA (E03)

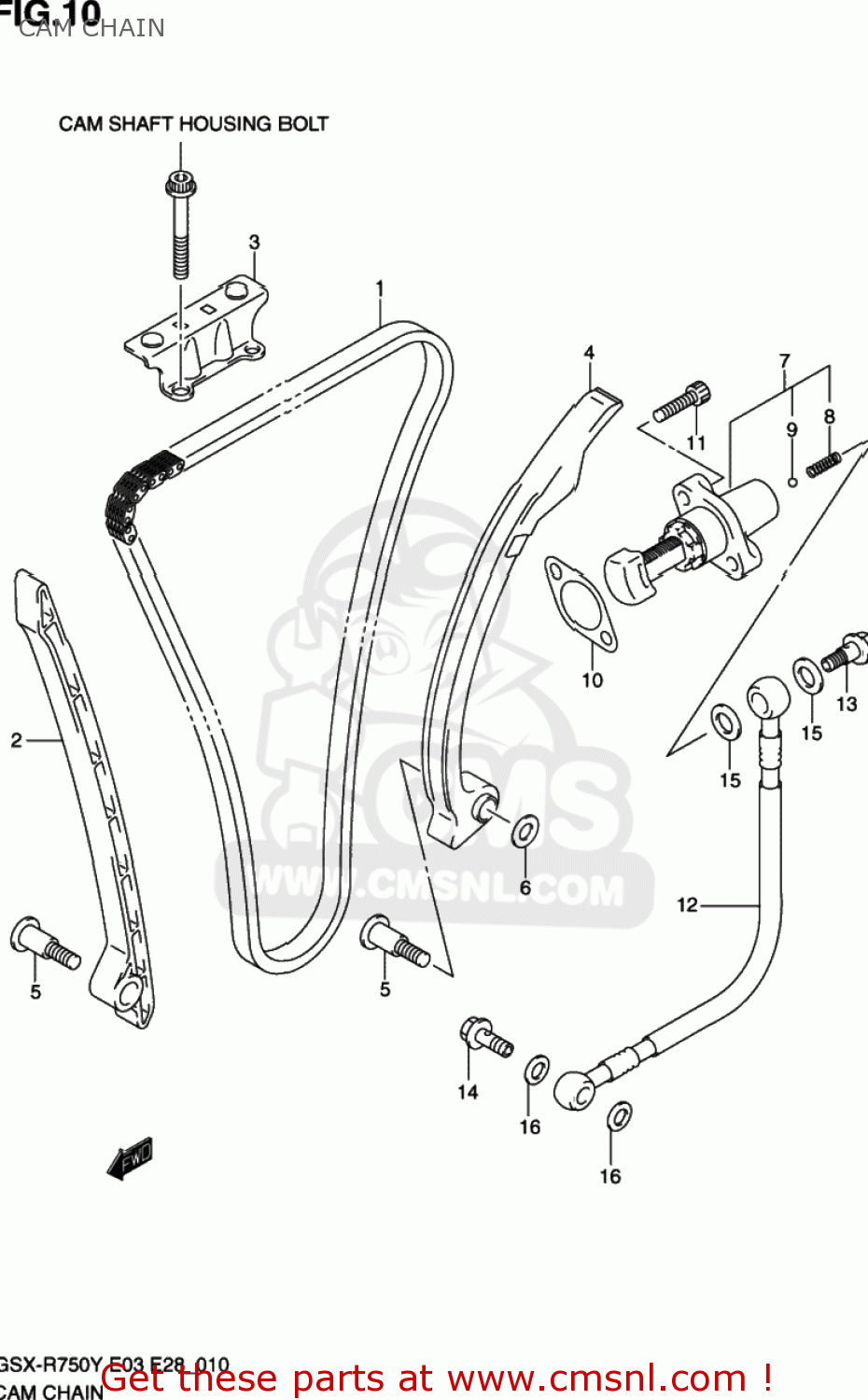

Cam chain diagram GSXR750 2003 (K3) USA (E03)
CAM CHAIN GSXR750 2003 (K3) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1276035F00
ref: 1
12760-35F01
CHAIN COMP,CAMSHAFT DRIVE
€ 138.50
2
1277135F01
ref: 2
GUIDE,CAM CHAIN NO.1
€ 38.00
3-1
1278235F00
ref: 3-1
12782-35F10
GUIDE,CAM CHAIN NO.2
€ 17.00
3-2
1278235F10
ref: 3-2
GUIDE CAM CHAIN NO,2
€ 17.00
4
1281135F01
ref: 4
TENSIONER,CAM CHAIN
€ 47.50
5
1281226B02
ref: 5
BOLT,CAM CHAIN TENSIONER/GUIDE
€ 6.00
6
0832201083
ref: 6
08322-0108A
WASHER
€ 1.50
7
1283035F00
ref: 7
12830-35F01
ADJUSTER ASSEMBLY,TENSIONER
€ 102.50
8
1283135F00
ref: 8
SPRING
€ 3.50
9
1283935F00
ref: 9
BALL
€ 4.50
10
1283735F00
ref: 10
GASKET,TENSIONER ADJUSTER (NAS)
€ 3.50
11
0713006253
ref: 11
07130-0625B
BOLT,CL.COVER
€ 3.00
12-1
1283535F00
ref: 12-1
12835-35F10
HOSE,TENSIONER ADJUSTER
€ 72.00
12-2
1283535F10
ref: 12-2
HOSE,TENSIONER ADJUSTER OIL
€ 72.00
13
1283635F00
ref: 13
BOLT,ADJ OIL HOSE UNION NO,1
€ 7.00
14
1283835F00
ref: 14
12838-35F01
BOLT,ADJUST OIL HOSE UNION
€ 13.50
15-1
0916812017
ref: 15-1
GASKET(12X17X1) (NAS)
€ 2.00
15-2
0916812019
ref: 15-2
GASKET(11.8X18X1.2) (NAS)
€ 3.50
16
0916808008
ref: 16
09168-08016
GASKET 8.2X14X1 (NAS)
€ 1.00
