HEADLAMP (MODEL Y/K1)
GSXR750 2003 (K3) USA (E03)

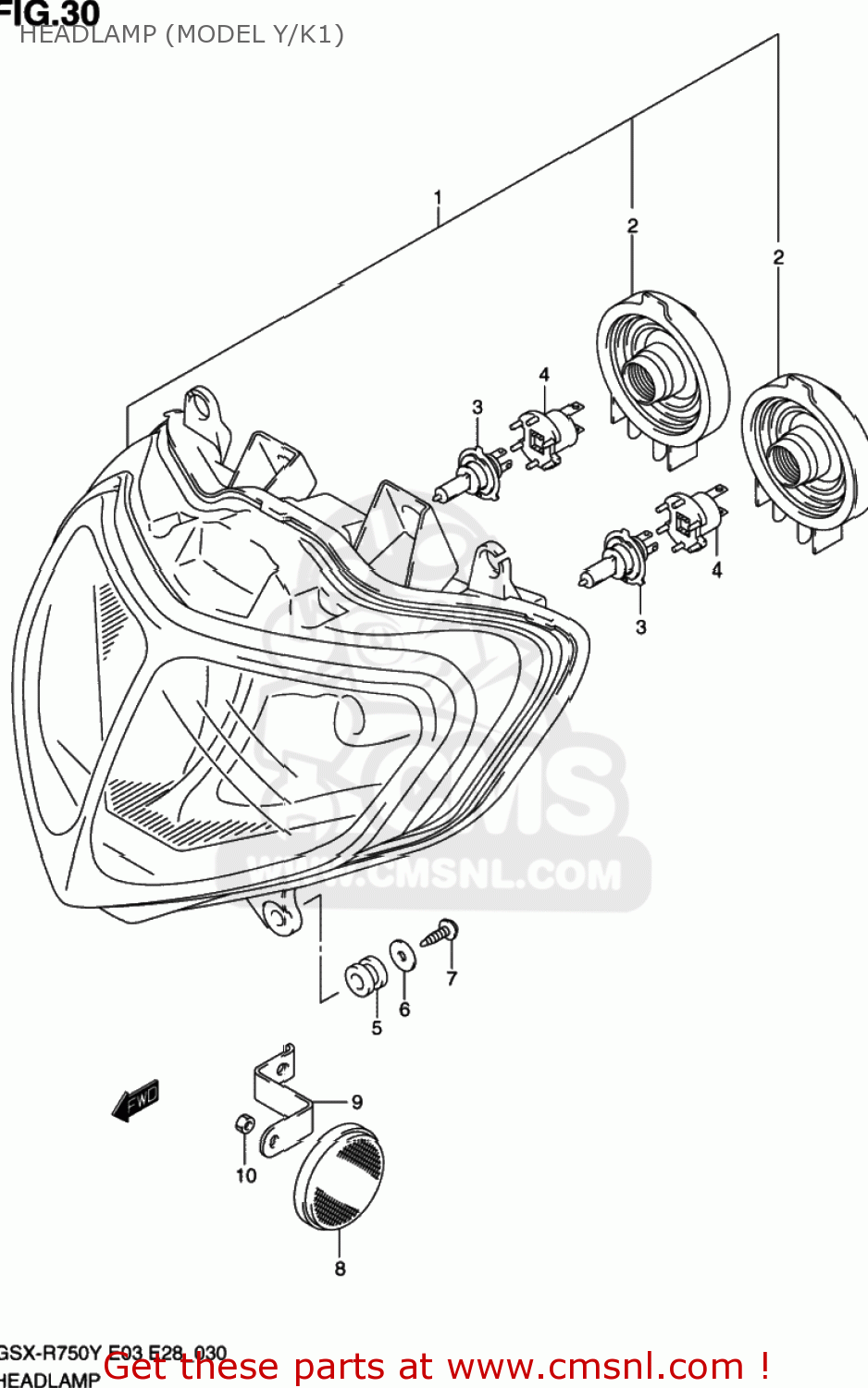

Headlamp (model y/k1) diagram GSXR750 2003 (K3) USA (E03)
HEADLAMP (MODEL Y/K1) GSXR750 2003 (K3) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3510035F30999
ref: 1
HEADLAMP ASSY
€ 418.00
2
3512577A00
ref: 2
COVER,SOCKET
€ 12.00
3
0947112188
ref: 3
BULB(12V55W/H7/PX26D/PHILIPS)
€ 12.50
3
0947112188
ref: 3
BULB(12V55W/H7/PX26D/PHILIPS)
€ 12.50
4
3417533E50
ref: 4
ADAPTER ASSY
€ 20.50
5
0932009039
ref: 5
CUSHION
€ 6.00
6
0916005045
ref: 6
WASHER(5.5X18X1)
€ 2.00
7
0913205041
ref: 7
SCREW(5X16)
€ 2.50
8
3595014A00
ref: 8
REFLECTOR,REFLEX FR
€ 15.00
9
3595635F00
ref: 9
BRACKET,FR SIDE RR
€ 0.00
10
0831000053
ref: 10
08310-0005A
NUT
€ 2.50
