THROTTLE BODY HOSE/JOINT (MODEL K2/K3)

GSXR750 2003 (K3) USA (E03)

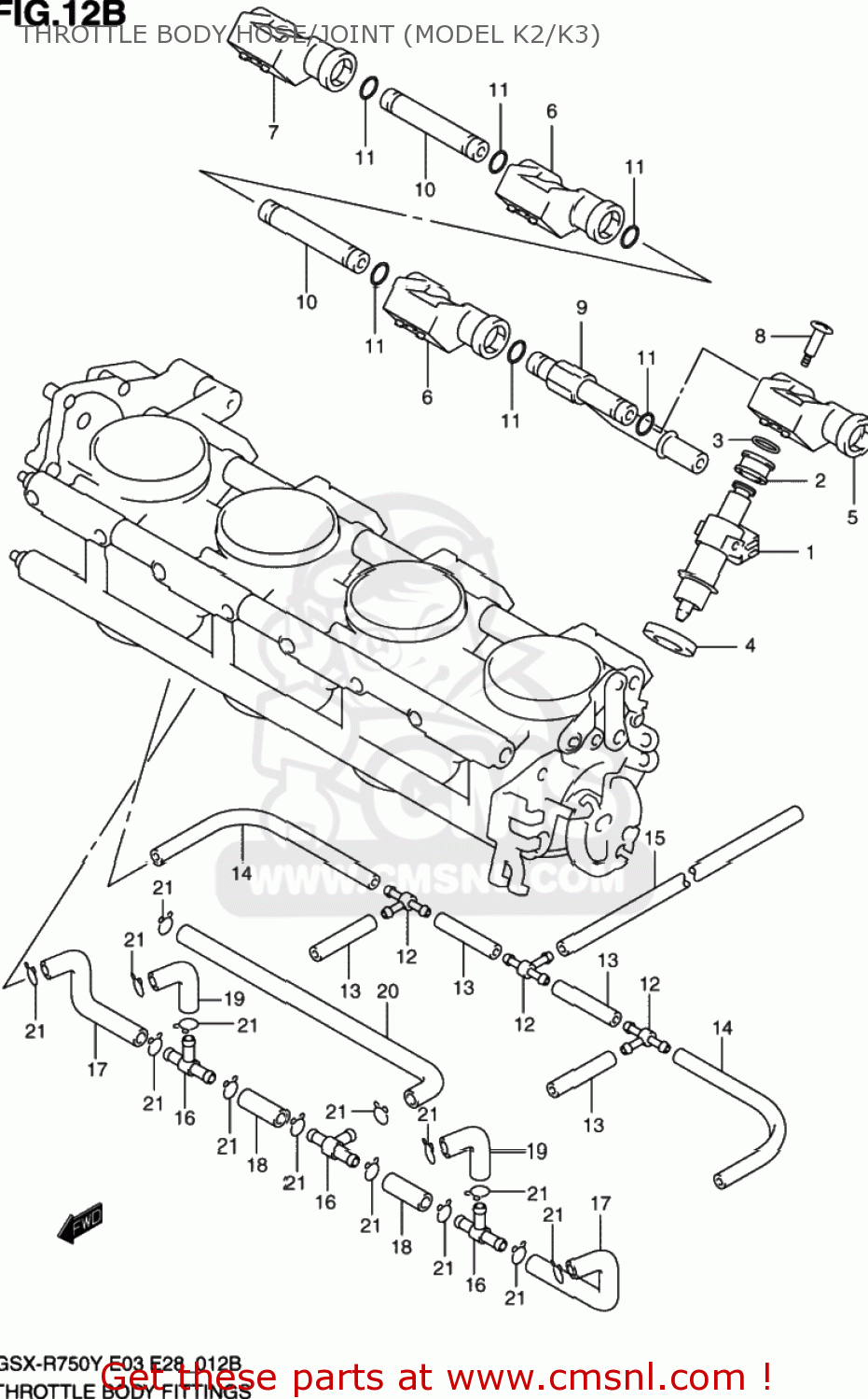

Throttle body hose/joint (model k2/k3) diagram GSXR750 2003 (K3) USA (E03)

THROTTLE BODY HOSE/JOINT (MODEL K2/K3) GSXR750 2003 (K3) USA (E03)
THROTTLE BODY HOSE/JOINT (MODEL K2/K3) GSXR750 2003 (K3) USA (E03)
THROTTLE BODY HOSE/JOINT (MODEL K2/K3) GSXR750 2003 (K3) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
1571024F00
ref: 1
INJECTOR ASSY
1571024F00
€ 311.00
2
1572224F00
ref: 2
RING,CUSHION
1572224F00
€ 13.00
3
1572124F00
ref: 3
O RING
1572124F00
€ 7.50
4
1367224F00
ref: 4
RING,SEAL
1367224F00
€ 16.00
5
1347135F00
ref: 5
JOINT,NO.1
1347135F00
€ 27.00
6
1347135F10
ref: 6
JOINT,NO.2,3
€ 31.50
7
1347135F20
ref: 7
JOINT,NO.4
1347135F20
€ 29.00
8
1360135F00
ref: 8
SCREW
1360135F00
€ 7.00
9
1347335F01
ref: 9
JOINT
1347335F01
€ 82.00
10
1347424F00
ref: 10
JOINT
€ 29.00
11
1572124F00
ref: 11
O RING
1572124F00
€ 7.50
12
1347124F30
ref: 12
JOINT
1347124F30
€ 11.50
13
1369724F00
ref: 13
HOSE,RUBBER(L:35)
1369724F00
€ 2.50
14
1369724F20
ref: 14
HOSE,RUBBER(L:100)
1369724F20
€ 3.50
15
1369735F00
ref: 15
HOSE,RUBBER(3X7X170)
1369735F00
€ 5.50
16
1368536E50
ref: 16
JOINT
€ 8.00
17
1369824F00
ref: 17
HOSE,RUBBER(L:80+25)
€ 0.00
18
1369824F10
ref: 18
HOSE,RUBBER(L:35)
€ 0.00
19
1369824F20
ref: 19
HOSE,RUBBER(L:30+30)
€ 0.00
20
1369835F00
ref: 20
HOSE,RUBBER(L:200+30)
€ 0.00
21
1369324F00
ref: 21
CLIP
€ 2.00
