FRONT CALIPERS
GSXR750 2003 (K3) USA (E03)

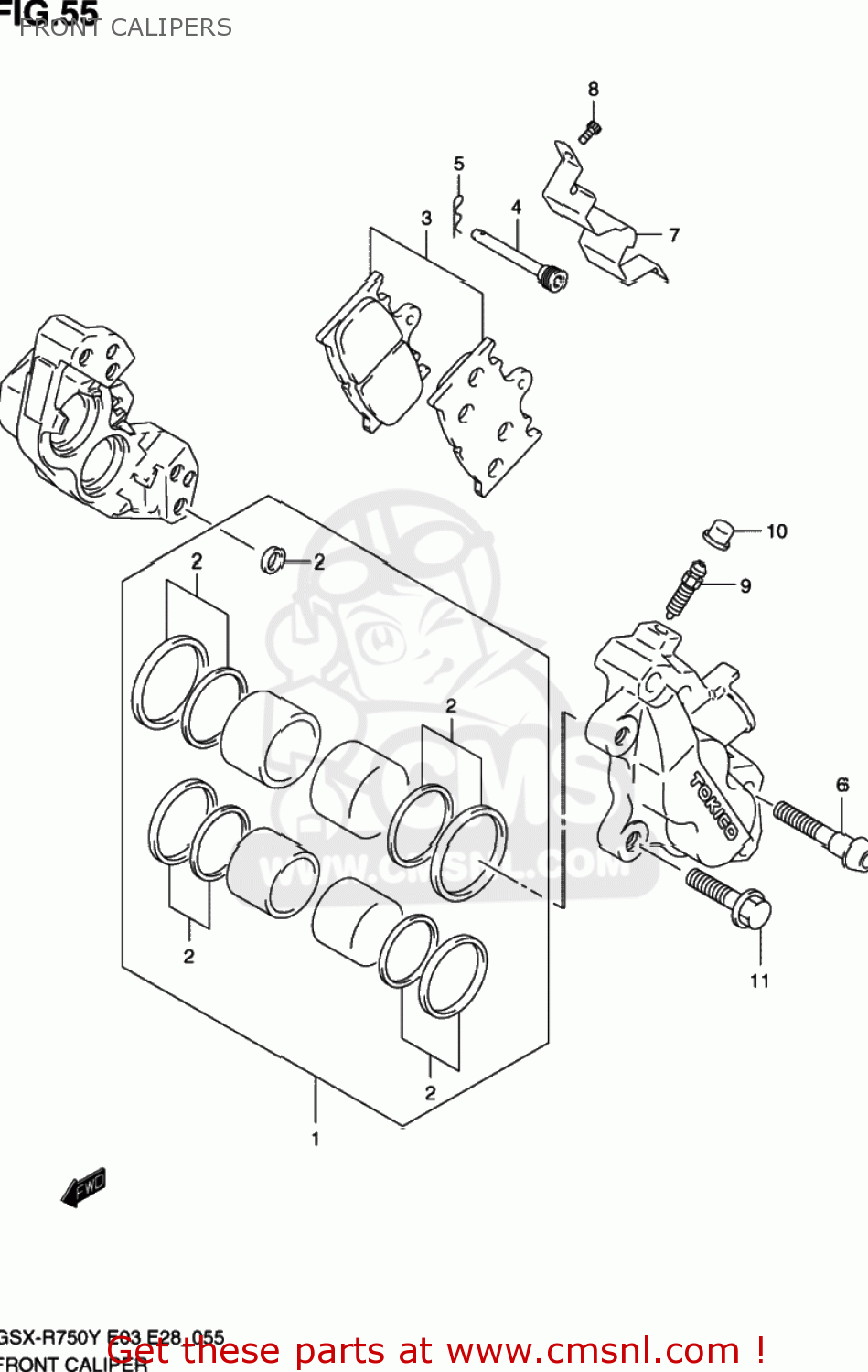

Front calipers diagram GSXR750 2003 (K3) USA (E03)
FRONT CALIPERS GSXR750 2003 (K3) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
5910035F00
ref:
59100-35F20-999
CALIPER ASSEMBLY,FRONT,RIGHT
€ 593.00
5930035F00
ref:
59300-35F20-999
CALIPER ASSEMBLY,FRONT,LEFT
€ 489.50
5910035F30
ref:
59100-35F20-999
CALIPER ASSY,F
€ 593.00
5930035F30
ref:
59300-35F20-999
CALIPER ASSY,F
€ 489.50
1
5910035810
ref: 1
PISTON SET
€ 205.50
2
5910035820
ref: 2
59100-29830
SEAL SET,PISTON
€ 29.50
3
5910035830
ref: 3
PAD SET (NAS)
€ 67.00
4-1
6914135F00
ref: 4-1
PIN,PAD
€ 49.00
4-2
5914140F00
ref: 4-2
PIN,PAD
€ 31.50
5
6914245000
ref: 5
CLIP,PAD PIN
€ 4.50
6-1
5914533E00
ref: 6-1
BOLT,HOUSING
€ 9.00
6-2
5914533E10
ref: 6-2
59145-33E00
BOLT
€ 9.00
7-1
5915235F00
ref: 7-1
COVER,CALIPER DUST
€ 13.50
7-2
5915135F00
ref: 7-2
COVER,CALIPER DUST
€ 14.50
8
5915322D00
ref: 8
SCREW
€ 4.50
9
5912118410
ref: 9
BLEEDER
€ 8.00
10
5515666310
ref: 10
CAP,BLEEDER PLUG
€ 6.00
11
0910308359
ref: 11
BOLT(8X28)
€ 4.00
