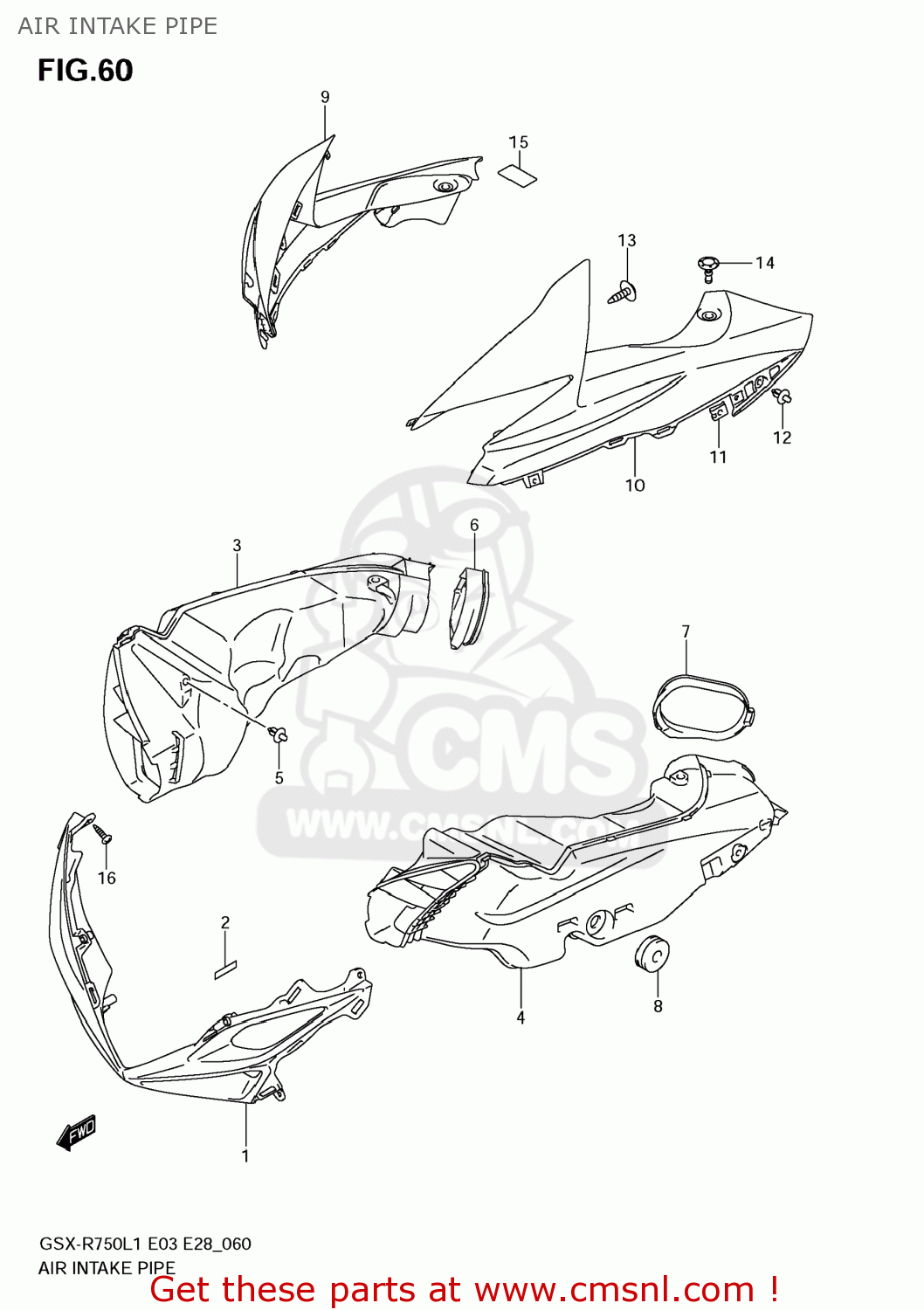

AIR INTAKE PIPE

ref

part #

description

quantity

1-1

9467114J00Y4P
ref: 1-1

COVER,INTAKE

€ 139.00

1-2

9467114J00019
ref: 1-2

COVER,INTAKE

€ 139.00

2

9444306G00
ref: 2

TAPE(6X25X0.13)

€ 2.00

3

9442014J10
ref: 3

PIPE,AIR INTAKE,R

€ 41.00

4

9443014J10
ref: 4

PIPE,AIR INTAKE,L

€ 42.50

5

09409063145PK
ref: 5

CLIP(BLACK)

€ 3.50

6

9442314J00
ref: 6

MOLDING,AIR INTAKE,R

€ 11.50

7

9443314J00
ref: 7

MOLDING,AIR INTAKE,L

€ 11.50

8

0932008028
ref: 8

CUSHION

€ 2.50

9-1

9467214J00YUA
ref: 9-1

COVER,INTAKE,R

€ 131.00

9-2

9467214J00YVB
ref: 9-2

COVER,INTAKE,R

€ 95.00

10-1

9468214J00YUA
ref: 10-1

COVER,INTAKE,L

€ 131.00

10-2

9468214J00YVB
ref: 10-2

COVER,INTAKE,L

€ 95.00

11

0914805052
ref: 11

NUT

€ 3.50

12

09409063145PK
ref: 12

CLIP(BLACK)

€ 3.50

13

0913205050
ref: 13

SCREW(5X12)

€ 2.00

14

9447935F00
ref: 14

CLIP

€ 3.50

15

3365229F00
ref: 15

PROTECTOR(30X80X1)

€ 3.00

16

035410512A
ref: 16

SCREW

€ 2.00
