SEAT
GSXR750 2011 (L1) USA (E03)

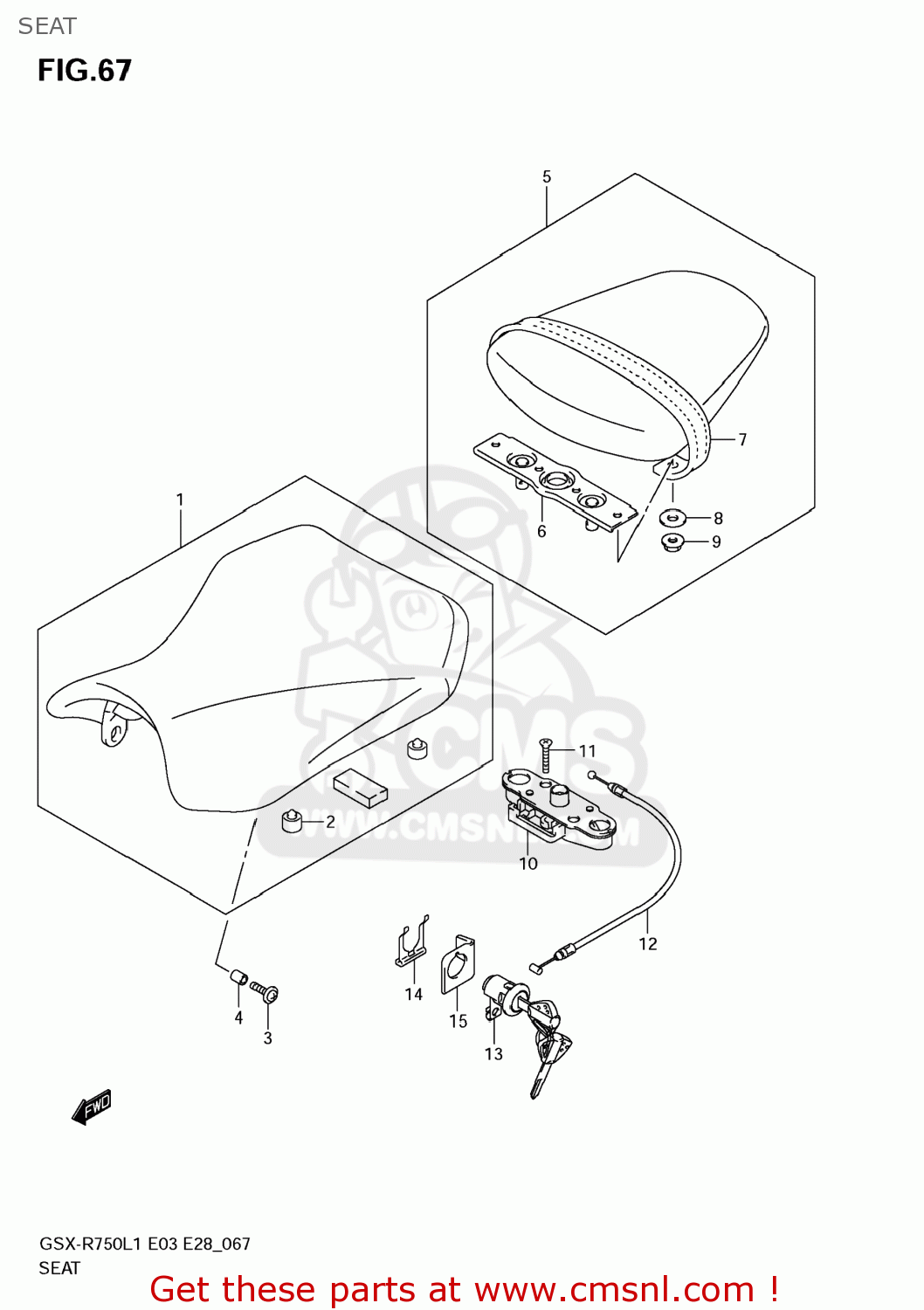

Seat diagram GSXR750 2011 (L1) USA (E03)
SEAT GSXR750 2011 (L1) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
4510014J00DW2
ref: 1
SEAT ASSY
€ 135.00
2
0932110034
ref: 2
CUSHION
€ 6.50
3
0913606121
ref: 3
SCREW(6X25)
€ 3.00
4
0918006264
ref: 4
SPACER(6.5X9X10.5)
€ 2.00
5
4530014J00P3H
ref: 5
SEAT ASSY.PILLI
€ 115.00
6
4529047H00
ref: 6
STRIKER
€ 16.00
7
4518014J00P3H
ref: 7
BAND ASSY,SEAT
€ 18.50
8
0916006088
ref: 8
WASHER(6.5X20X1.6)
€ 2.00
9
083193106A
ref: 9
NUT
€ 2.50
10
4522047H00
ref: 10
BRACKET,SEAT SUPPORT
€ 79.50
11
021220630A
ref: 11
SCREW
€ 1.50
12
4528014J00
ref: 12
CABLE,SEAT LOCK
€ 10.50
13
9570014810
ref: 13
LOCK SET,SEAT
€ 75.50
14
4528911F00
ref: 14
PLATE,SEAT LOCK ASSY
€ 3.00
15
4528814F00
ref: 15
GUIDE,SEAT LOCK CABLE
€ 3.00
