REAR COMBINATION LAMP
GSXR750 2011 (L1) USA (E03)

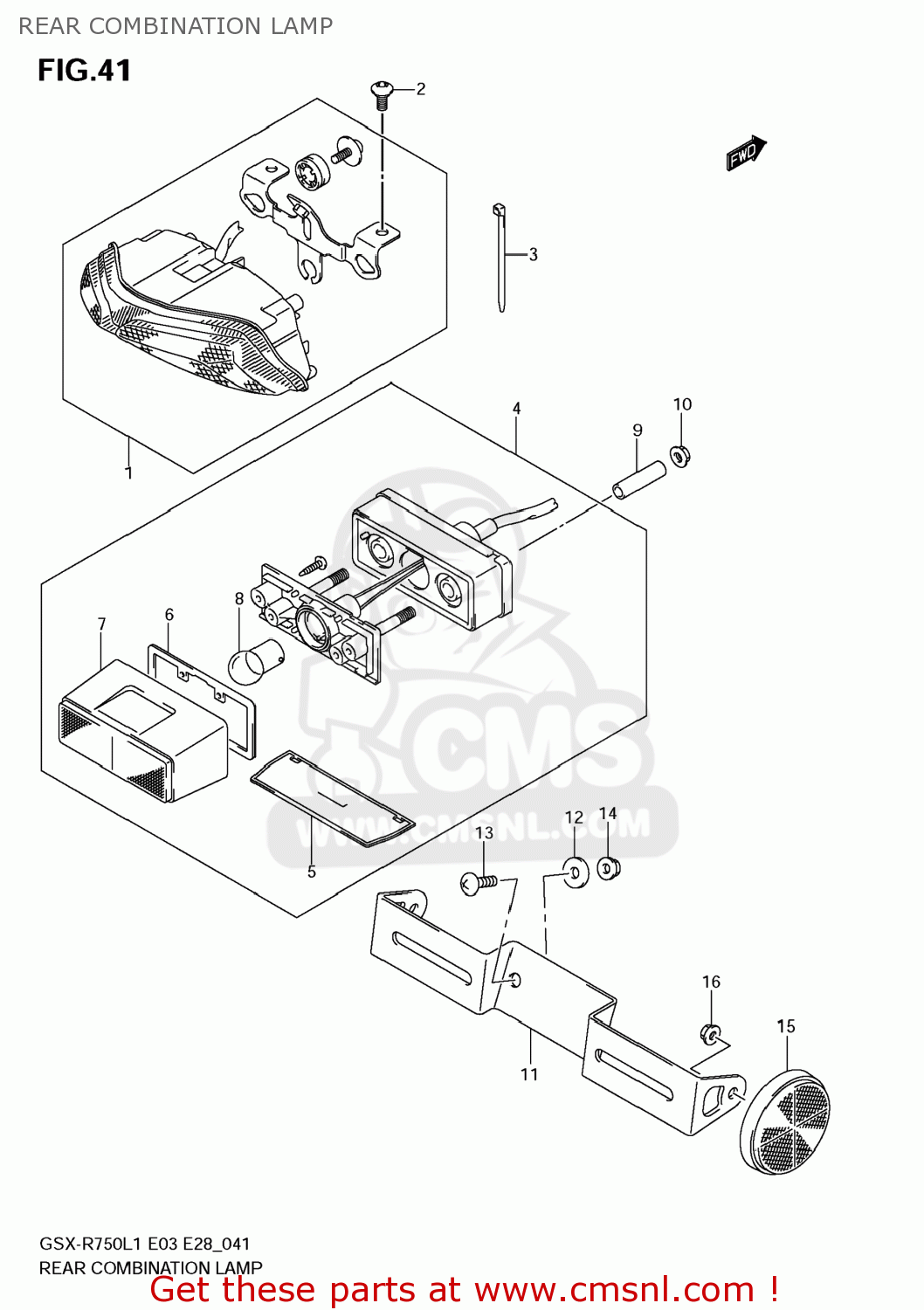

Rear combination lamp diagram GSXR750 2011 (L1) USA (E03)
REAR COMBINATION LAMP GSXR750 2011 (L1) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3571014J30
ref: 1
LAMP ASSY,RR COMBINATION
€ 168.00
2
0913905074
ref: 2
BOLT(5X13)
€ 3.00
3
0940710404
ref: 3
CLAMP(L:100)
€ 4.00
4
3591041G30
ref: 4
35910-41G31
LAMP ASSY,LICE
€ 62.50
5
3591241G00
ref: 5
LENS LICENCE
€ 19.50
6
3591341G00
ref: 6
GASKET (NAS)
€ 19.00
7
3591741G00
ref: 7
COVER,LICENSE LAMP
€ 27.00
8
0947112140
ref: 8
09471-12058
BULB(12V5W,BF150-40160A)
€ 4.00
9
0918006356
ref: 9
SPACER(6.5X9X34)
€ 3.00
10
0915906096
ref: 10
NUT
€ 2.00
11
3592714J30
ref: 11
BRACKET,LICENSE PLATE
€ 9.00
12
0916006077
ref: 12
WASHER(6.5X20X1.2)
€ 2.00
13
021420616A
ref: 13
SCREW
€ 2.50
14
083161006A
ref: 14
NUT
€ 2.50
15
3597014A20
ref: 15
REFLECTOR ASSY,RR SIDE
€ 11.00
16
083161005A
ref: 16
NUT
€ 2.50
